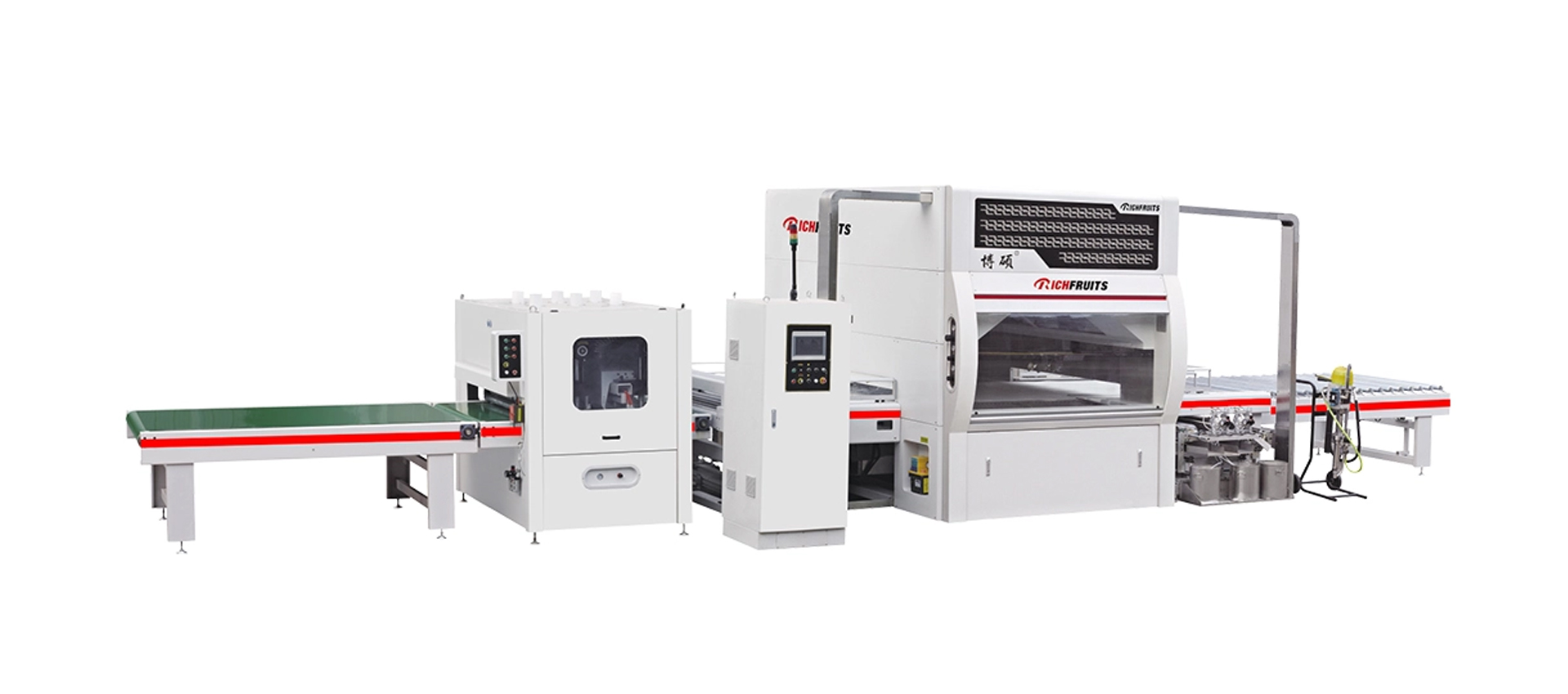

01 Basic Spray Coating Line

If you are considering switching from manual spraying to automatic spraying, line 01 is the right choice. It is the most cost-effective solution in ways of saving paint, saving labor and increasing productivity.

The automatic spray coating line deals perfectly with workpieces in variable shapes. Mouldings, cabinet doors, stairs, frames, profiles, panels, either flat or raised, are suitable for automatic spray coating line. Top surface and four sides are covered at one time to achieve higher efficiency.

Layout: Conveyor-Brushing machine-Automatic spraying -Conveyor

Characteristics: 01 line is the simplest and stable configuration of an automatic spraying line, ideal for entry-level small production factory with maximum flexibility. Compatible with any type of water-borne or solvent-based paint and process.

Daily productivity: 1500m², equals to the output of 12 people working 8 hours.

Space required: 13.6m*5.4m*2.75m

Automatic spray coating machine B3

Richfruits offers automatic coating solutions suitable for high-quality finishing surface on furniture, kitchen cabinet, interior fittings, or doors, covering the top and four sides simultaneously with water-based paint or solvent-based paint.

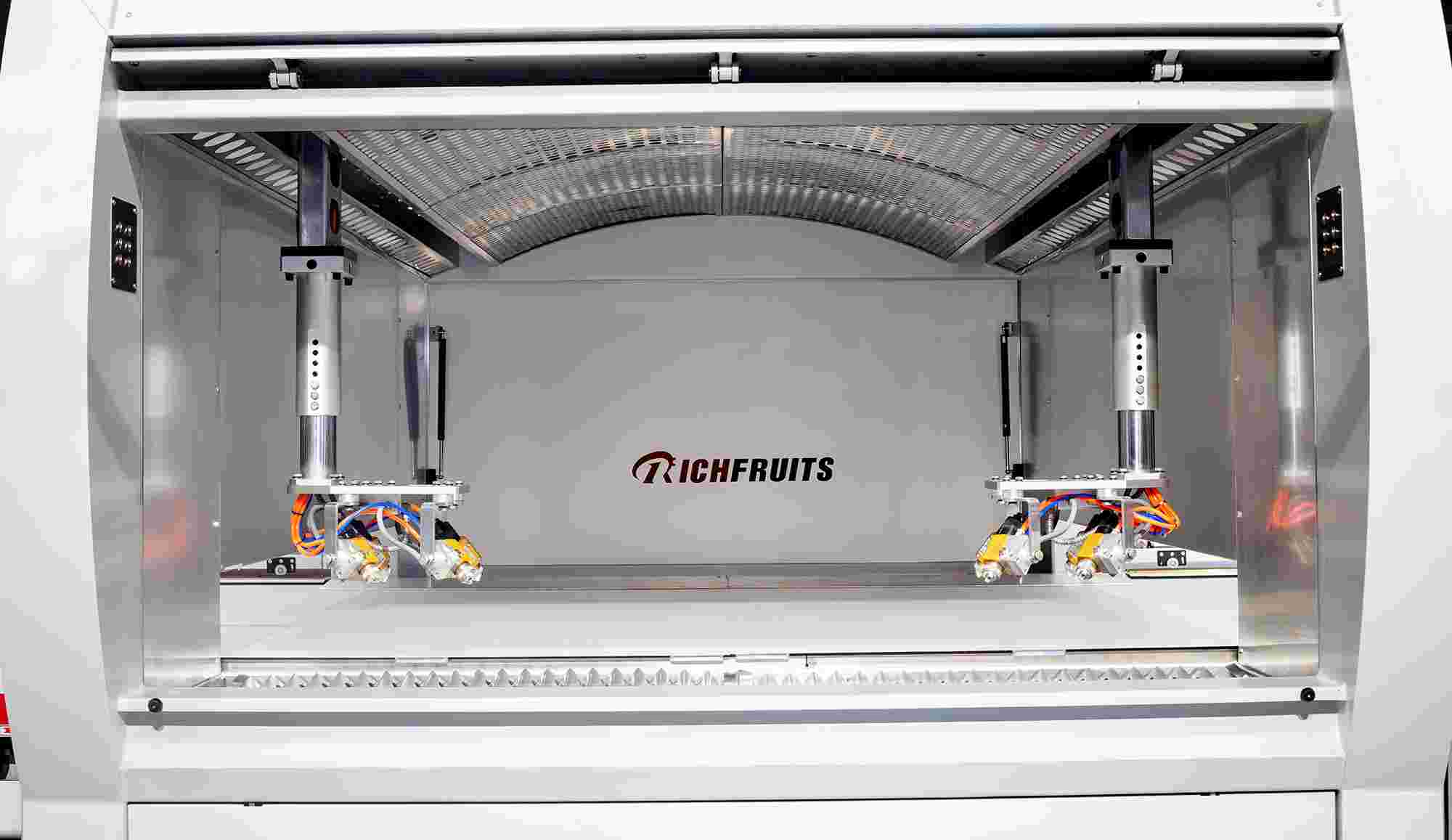

The automatic spray coating machine B3 is a very flexible and efficient machine: the high precision detection enables exact control of spraying guns for maximum paint saving. Each spraying arm, equipped with 4 guns and independent paint circuit, can automatically adjust heights to work compatibly with workpiece in different thickness. The quick color changing system enables flexible production. Also, the belt cleaning system and paint collecting unit are installed separately for easy maintenance. B3 is the best option to improve productivity save labor (substitute for 16 workers), save paint (recycling rate 98%) while ensure high finishing quality for your products.
Spraying gun system, filtrations can be fully customized to achieve different finishing effect.

Automatic spray painting machine parameters：

Finishing Process:	Spray coating
Finishing effect:	Matte, Semi-matte, High gloss
Brand Name:	RICHFRUITS
Model:	B2-01
Production Capacity:	1500 m²per day
Certification:	ISO9001, CE
Feature：	High flexibility
Core Components:	Spraying gun, Pump, PLC, Motor, Conveyor System
Conveying Speed:	Conveying Speed
Spraying System:	Sames Kremlin
Spraying chamber:	Deliberate design of air flow inside chamber to collect paint mist
Machinery Test Report:	Provided
Video Inspection:	Provided
Place of Origin:	Guangdong, China
Voltage:	Customers local voltage
Application:	Automatic surface finishing on furniture: custom kitchen cabinet doors, wardrobes，Bathroom vanities, and building materials such as veneer decorative board, interior doors,toilet cover as well as materials such as glass, plastic, fiber cement.
Service:	On-site installation and training service, video technical support, online support, field maintenance and repair service, spare parts ordering.

Production site video

Conveyor system

Conveyor system comes with two option: paper belt or PE belt with self-cleaning unit.

Paper belt is ideal when frequent color change is required. If a higher production capacity is expected, PE belt is an economical option, it is durable and corrosion resistant, comes with a self-cleaning unit as well as a system to collect lacquer on belt for reuse.

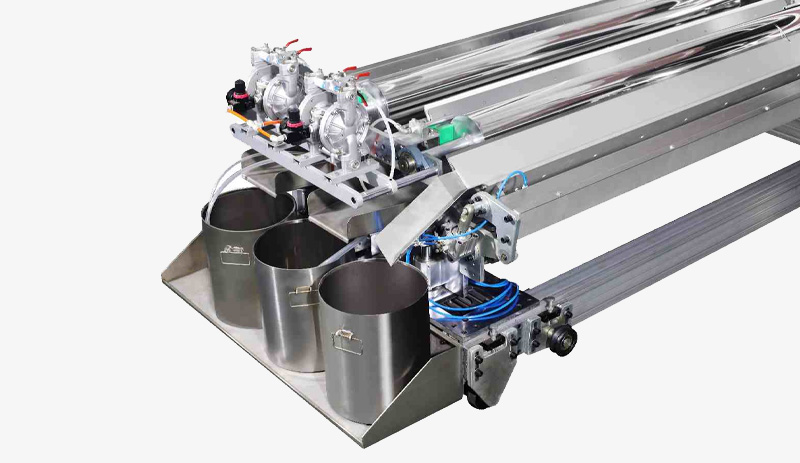

Paint recycling system

Richfruits self-developed paint recovery system can realize 99.8% paint recovery rate, pursue ultimate cost saving.

Richfruits intelligent coating system function

●To ensure same amount of paint applied on workpieces with different thickness, the automatic spraying machine can be equipped with intelligent lifting structure to automatically control the heights of spraying gun, accommodating with both thick or thin workpiece;
●Easy to use: one-touch operation to control the production line to start/stop; one-touch to switch paint; one-touch to clean; one-touch to set formula; one-touch to control speed; one-touch to set painting volume; one-touch to control light energy; one-touch to generate data;

● Automatically identify the shape and size and thickness/heights of the workpiece for smart spraying: control the spraying arm and guns to work within certain ranges covering workpiece

● The conveying speed, spraying arm reciprocating speed, air inflow/outflow volume are accommodated accordingly by the system;

● Real-time feedback of energy & paint consumption data and production output data shown on screen;

●Support logical fault handling when abnormal situation or misfunction occurs, after troubleshooting production line can be quickly resumed with one click.

Application

Wooden door

After-sales

We will send technician for production line installation and debugging and provide free staff training on daily operation and maintenance. For daily operation questions or spare parts ordering, our after-sales supporting staff can be reached anytime online through your exclusive service chatgroup on instant messaging APP. Also, we have set up a service center in Vietnam to cover South East Asian clients. Or you can contact our global network of distributors for basic maintenance service. In some cases, we send the spare parts and technicians directly from our headquarter in order to solve the problems as soon as possible.

Photo gallery

FAQ

Q：How does automatic spray coating line help me eliminate production costs?
A：The most important cost factor in the coating process is the paint consumption. Thanks to our patented Paint Recycling System, the recovering rate of paint reaches to as high as 99%. In addition, the Intelligent Coating System helps you monitor the paint consumption in real time.

Q：Which coating process is ideal for my products? Can you design a tailored solution for me?
A：Sure. Our team can help you find the right solution for you based on your production needs. Please click CONTACT US and leave your contact details so an English-speaking technician can reach you for further discussion.

Q：How do you practice quality control in your factory?
A：In order to guarantee consistent quality, we apply a rigorous Quality Management System in addition to ISO9001. From a screw to a complete assembled machine, every workpiece is tracked and tested separately by QC staff before packaging and shipping.

Q：How can I examine your coating quality?
A：The easiest way is to send your workpiece to us for testing. As we have a testing lab at our headquarter in Guangdong, we sincerely invite you to visit us in person with your workpiece, so we can arrange a testing for you to watch the coating process and check the coating quality on your workpiece. In addition, to visit our production site nearby you is also available by appointment.

Q：My factory is located in North America/Europe. Will your machines meet local safety standard?
A：Our machines are CE and CSA certified which means they meet Europe and North America safety standard. Right now Richfruits auto spraying machines, roller coating machines and production lines are running consistently in more than 70 countries including America, Mexico, Poland, Russia, Ukraine, India, Dubai, Brazil, Vietnam, Indonesia, and Korea.
