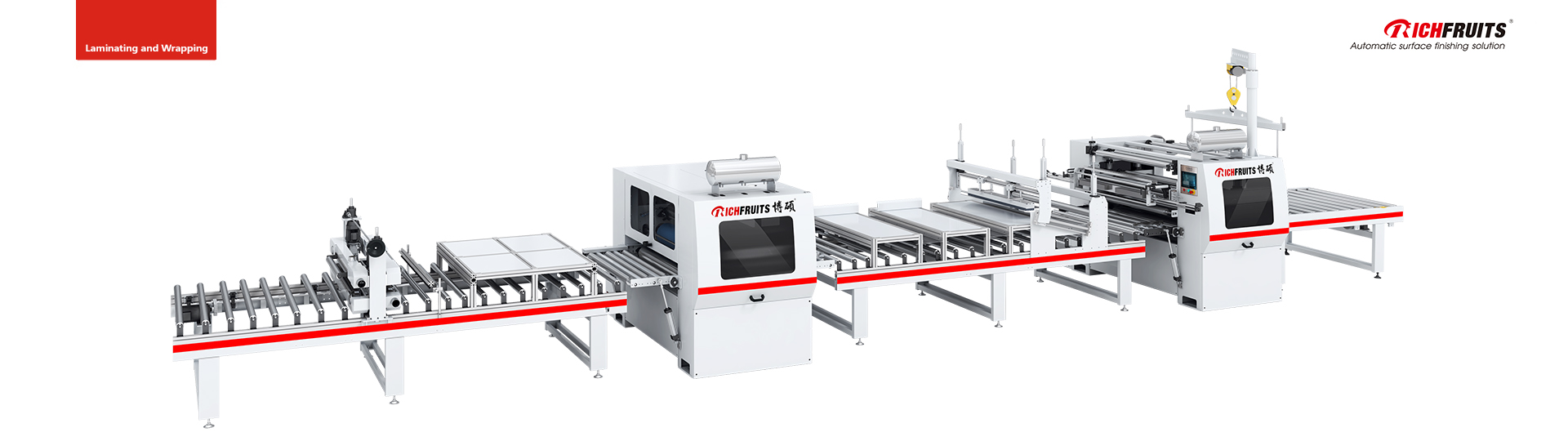

L01-Semi-auto laminating line
Layout
Dust Cleaner&Preheating channel- PUR Glue spreader- Feeding machine- Laminating machine-  Conveyor
 Strong compatibility: suitable for transparent, high gloss and super matt PVC/PET, Acrylic sheet, Aluminum sheet, veneer paper, CPL, HPL as surface material in 4 ft width

 Pre-heating oven creates a stable temperature and humidity environment to warm up substrates for better gluing

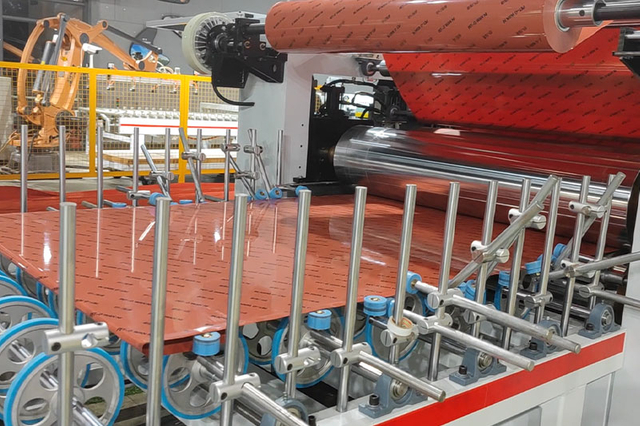

 The PUR hot melt adhesive is applied to the substrates in a stable and flat manner by roller coating, combined with a ceramic press roller to ensure uniform distribution of the glue application

Performance characteristics

PUR Hotmelt Laminating Line is suitable to laminate coils or sheets such as high glossy film, acrylic panel, PVC panel, PVC film, paper, PET film, on MDF, plywood, particle board, PVC panel and other panel. The production line includes dust cleaning, pre-heating oven, glue coating, hotmelt coating machine, and laminating roller press, film cutting and robot loading process.

Technical parameters

Feeding speed

 3-18m/min

Line length

15m

PUR glue machine

55 gallon
Installed power 112.3kw

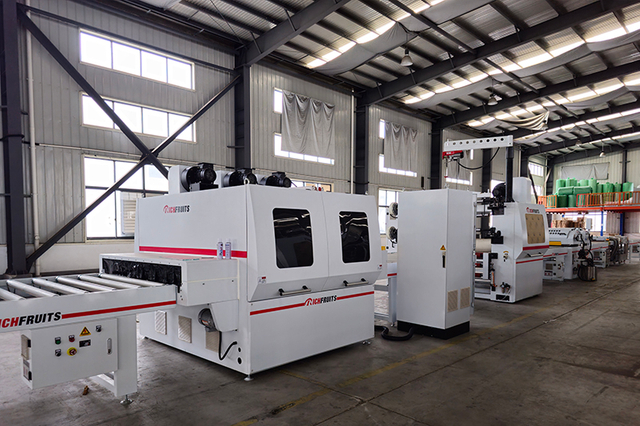

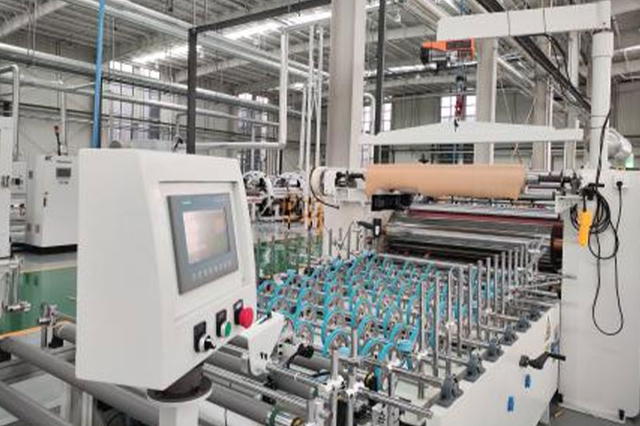

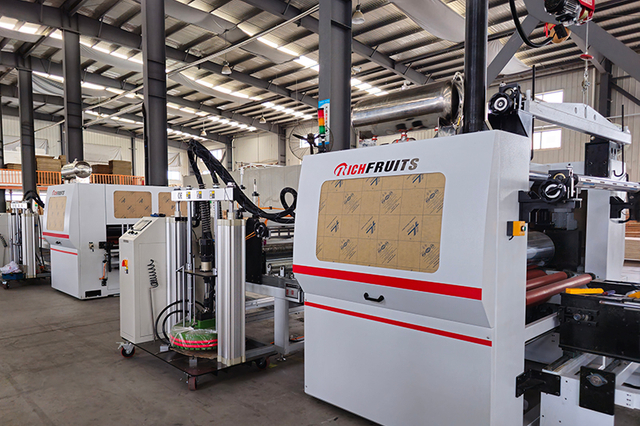

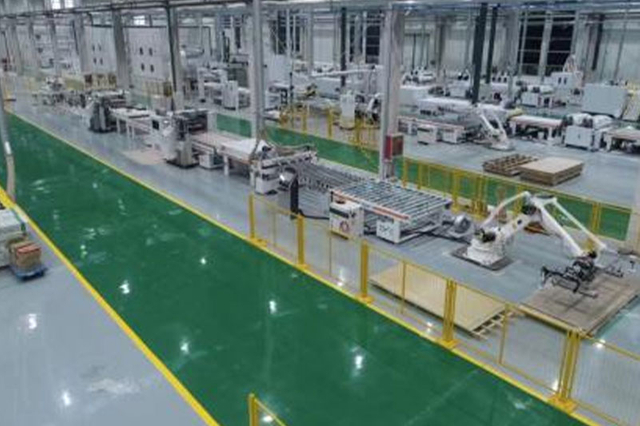

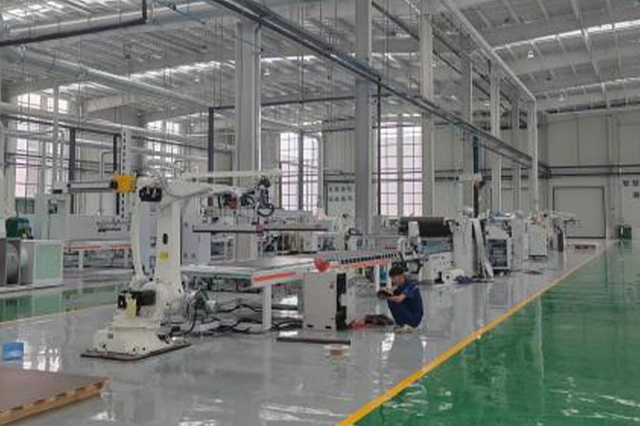

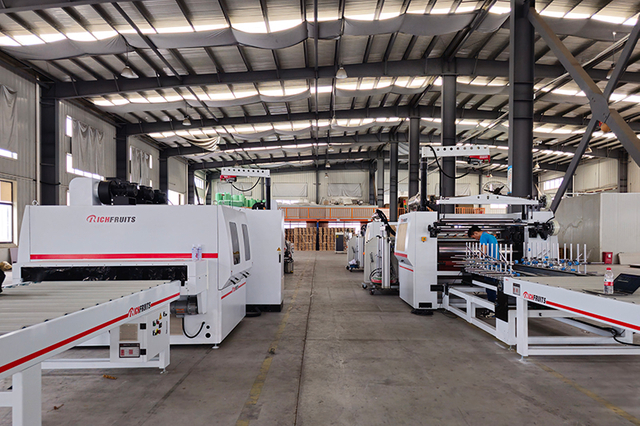

Production site video
Application
door-3296644_1920
Wooden door
Photo gallery
