Views: 30 Author: Site Editor Publish Time: 2020-11-11 Origin: Site
The traditional reciprocating paint spraying machine is only suitable for products with a thickness of less than 100mm and no in-cut edges on the side. For office countertops, side panels of office desks, bedside frames for suite furniture, curved cabinet panels, display countertops, etc., complex shapes cannot be effectively sprayed.
Many customers are entangled in the selection of equipment, and how to spray workpieces with uneven workpieces, more deformed parts, in-cut sides, thicker products, and complex shapes.
Boshuo has developed a robot + reciprocating paint spraying machine to perfectly solve this entanglement. It can not only solve the problems of grooves, thickness, unevenness, and in-cut painting of complex workpieces, but also use the reciprocating paint spraying machine to solve the large area painting efficiency The problem is to break through the painting problem of complicated workpieces with a thickness of less than 300mm.
It can not only be a thousand rocks, but also a flat river.

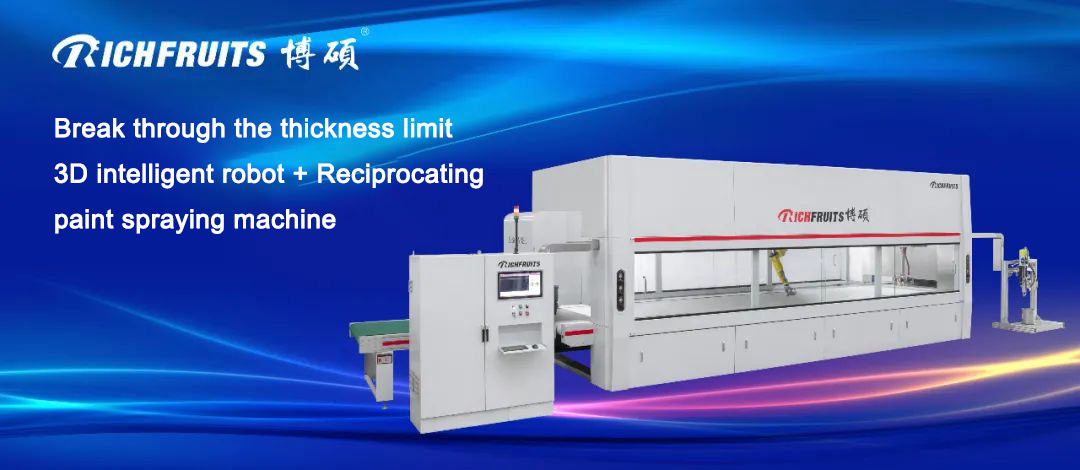

Interpretation of 3D + AI robot + reciprocating paint spraying machine
Robot + reciprocating coating application technology
Q: What is 3D + AI robot + reciprocating automatic paint spraying machine?
A: It contains six major systems: transportation system, 3D scanning system, AI imaging system, robot execution system, reciprocator painting system, and paint recovery system.
Q: What is a 3D AI robot reciprocating automatic paint spraying machine?
A: Contains six major systems: transportation system, 3D scanning system, AI imaging system, robot execution system, reciprocator painting system, and paint recovery system.
Sample Display:

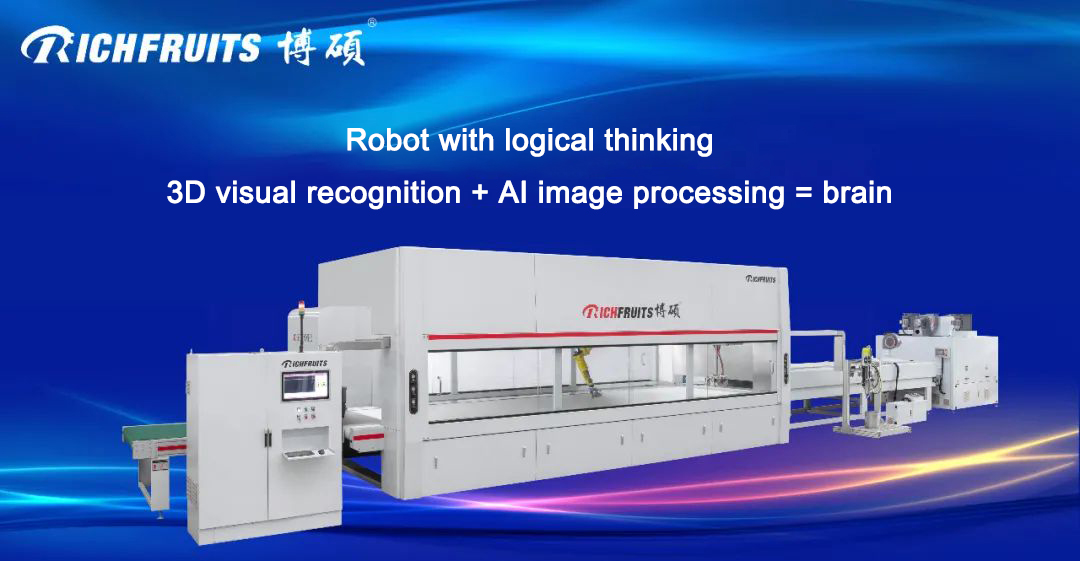

Q: What is a 3D+AI robot?
A: Robots with logical thinking
3D visual recognition + AI image processing = brain
See 3D—recognize various shapes,
Calculate AI—plan the spraying plan.
Flexible control of spraying rhythm to ensure stable spraying volume
There are four trajectory modes for robot spraying: programming, teaching, modeling, AI;
Richfruits Robot uses AI to plan the spraying trajectory
① Equipment technical parameters
1. Minimum workpiece length: 350mm
2. Maximum workpiece width: 1300mm
3. Workpiece thickness:
5-300mm (hoisting)
5-600mm (sitting)
4. Conveying speed: 3-10m/min
5. Number of independent gun arms: 2
6. Inlet air flow: 14000-21000mc/h
7. Exhaust air flow: 14000-21000mc/h
8. Working pressure: 0.6Mpa
9. Compressed air consumption: 50L/min+ (50 is the basic consumption of the equipment, depending on the gun pump configured, the total air consumption is superimposed)
10. Installation power: 18KW
② Flexible production:
1. Wide applicability;
2. Thick workpieces are sprayed on complex workpieces with different heights, faces, inner and outer edges, inner cutting, inner cutting edges, grooves, and concave and convex types;
3. PU, UV, water-based paint.
4. Compatible with top coat and color repair.

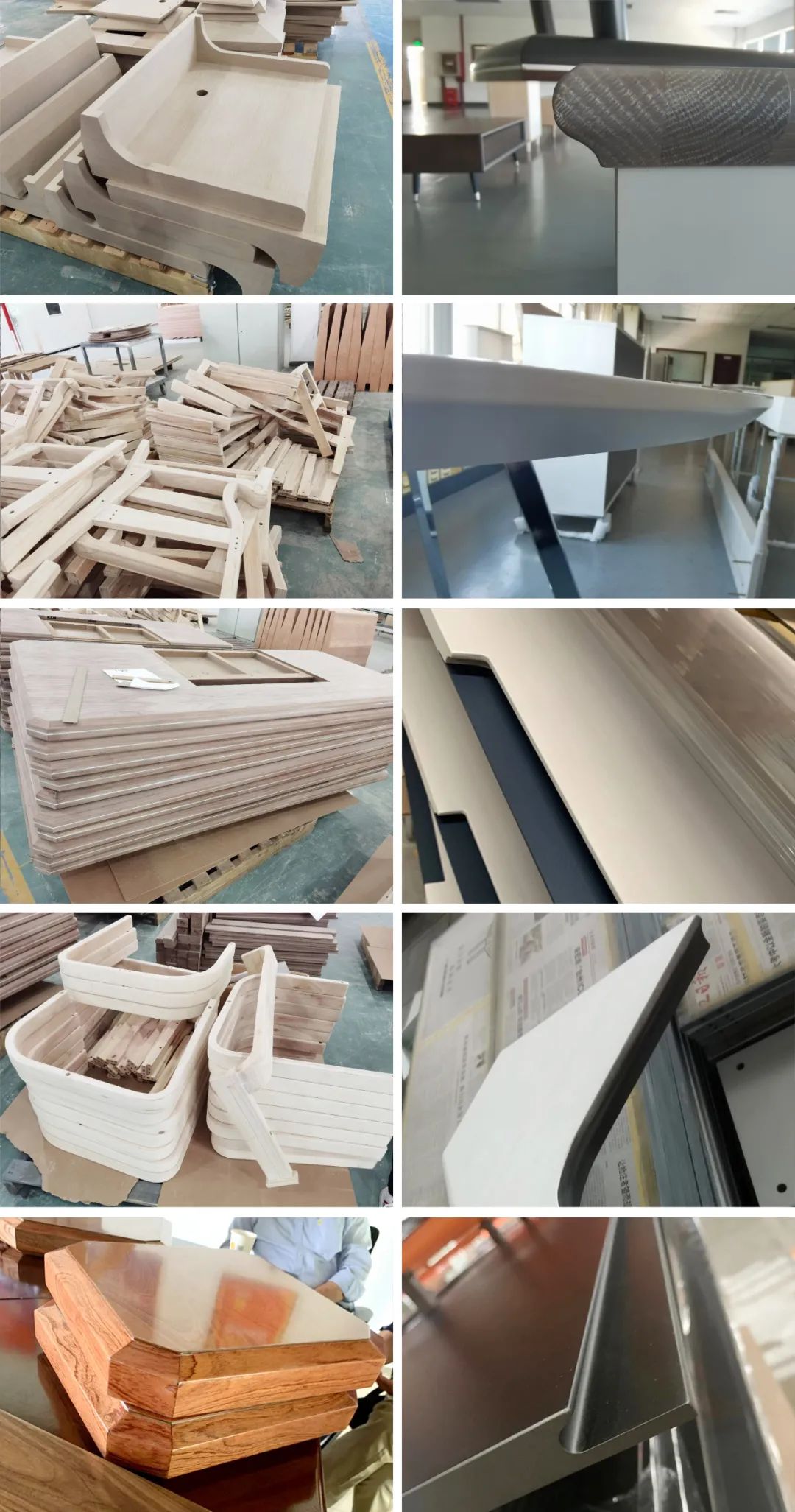

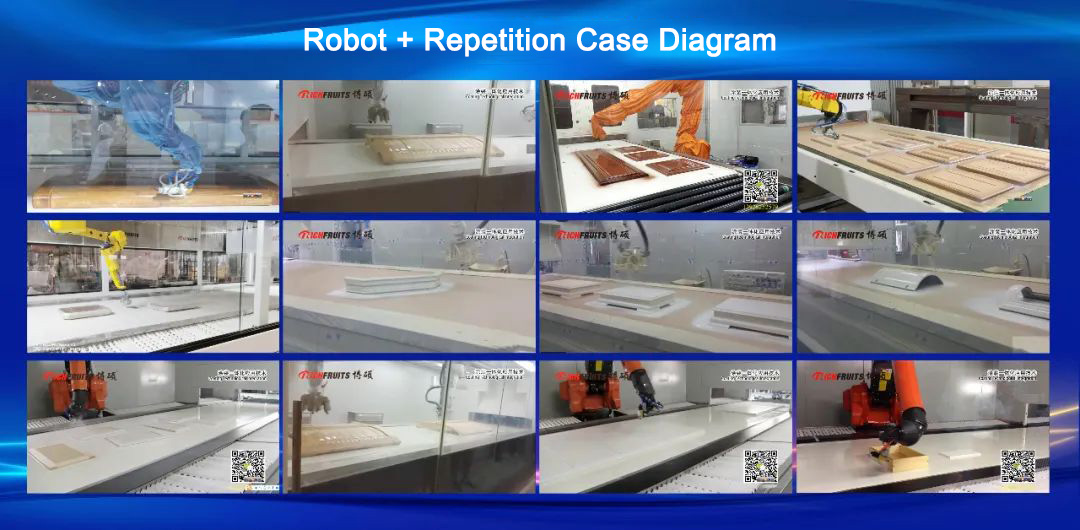

③ Case display:
Richfruits will also continue to track the painting process of more complex workpieces such as office countertops, office desk side panels, suite furniture bedside frames, curved cabinet panels, display countertops, etc., analyze the solutions to problems encountered, and provide you with more suitable solutions The coating production line program.
