Curtain Coating Line

Layout: Dust cleaning- roller coating-curtain coating-flash-off leveling- UV curing-conveyor

Curtain coaters are ideal for apply topcoat on flat panel such as flat cabinet doors, walling panel, wood composite/ solid wooden floors, and flat wooden doors to get a high glossy, mirror-like finishing effect. The coatings flow down in a uniform manner from top of the curtain in order to form an even coating layer. A thicker coating film is obtained by curtain coating compared to roller coating.

Key Features:

Curtain coating is especially suitable for top coating a high glossy finishing effect.

The thickness of the coating film can be precisely controlled by adjusting the coating pump's flow rate.

Working speed independently adjustable for roller coating, curtain coating and unloading.

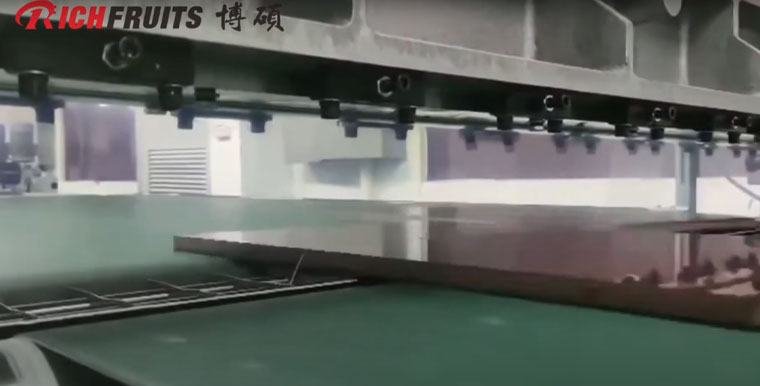

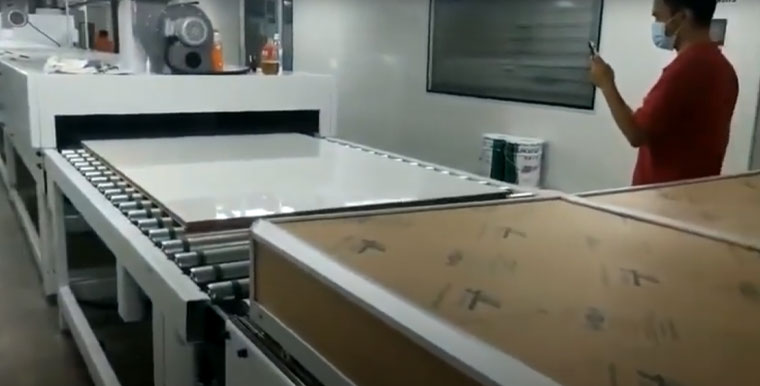

Production site video

Application

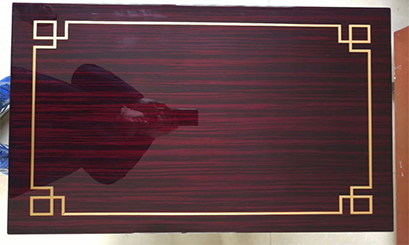

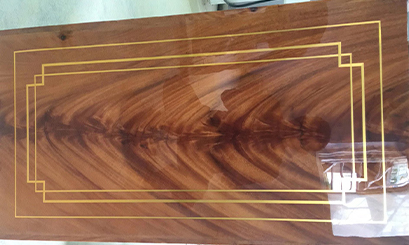

Wooden door

Performance characteristics

Suitable for flat surface and four sides of plate-type furniture, solid wood door, cupboard door, large slab table, handicraft, wood veneer, decorative plate and other plate workpieces, and carries out high-quality effects and high-volume continuous automatic painting.

Technical parameters

Coating width	1300mm
Working height/thickness	2-90mm
Feeding speed	5-20m/min
Line length	29m
Installed power	110kw

Photo gallery
