two oscillating arm auto spray machine

B3

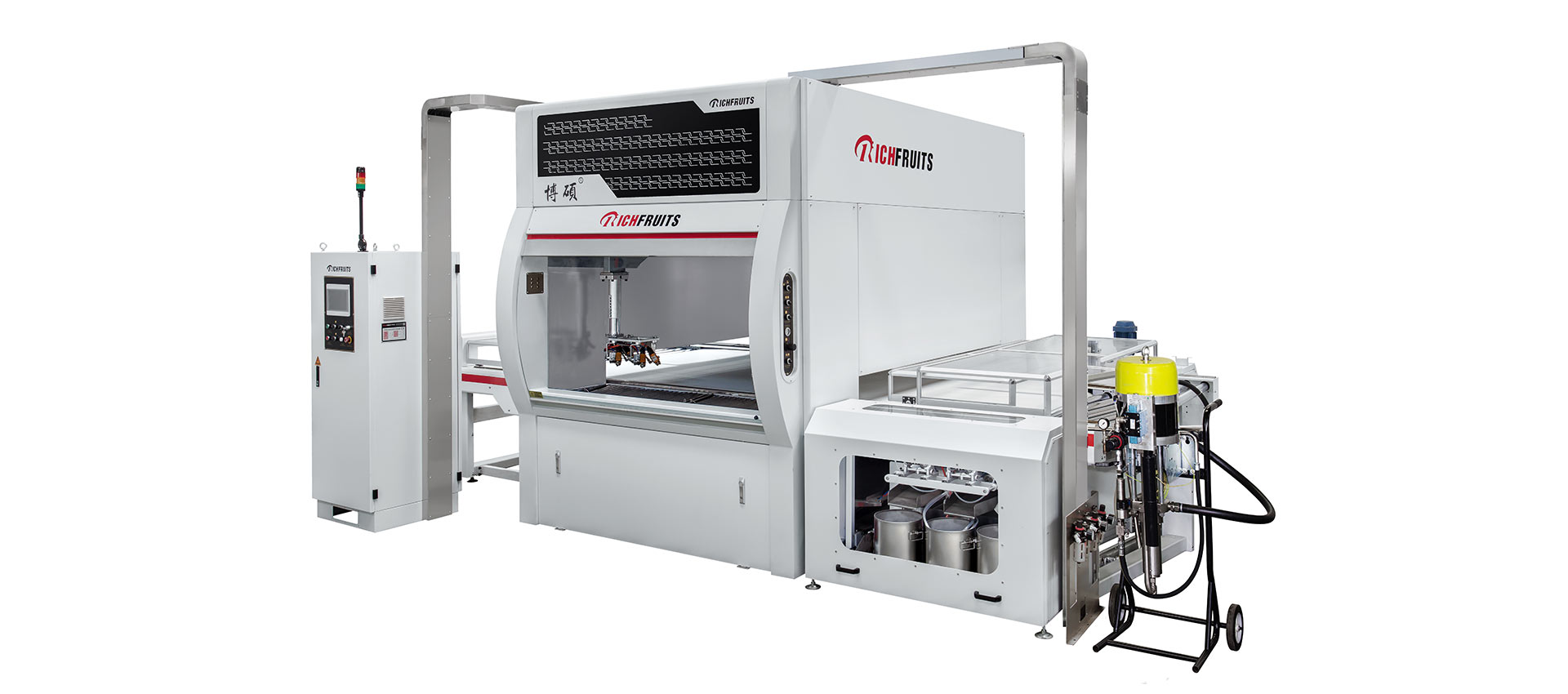

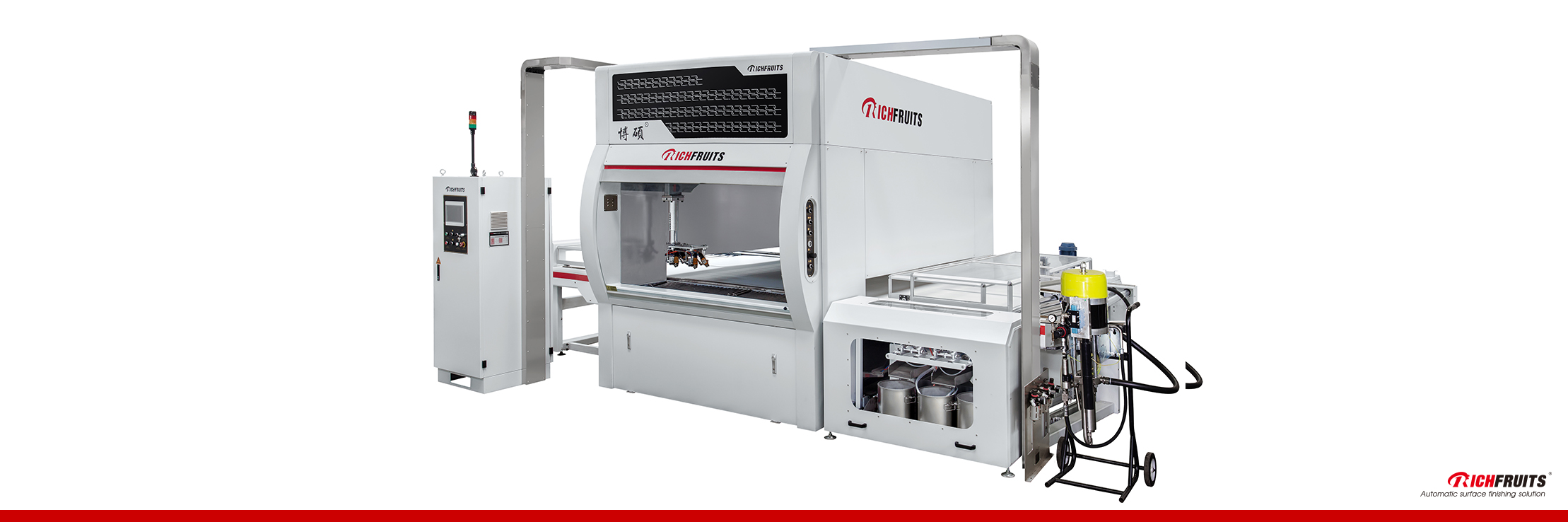

Two oscillating arm auto spraying machine

High precision reading barrier investigates the size and shape of workpiece for smart spraying.

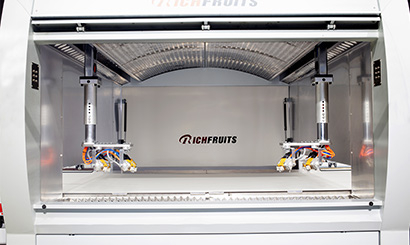

Two independent reciprocating arms integrated with high precision linear guide in a larger pressurized sprayng chamber.

Automatic precise elevation of spraying arms to compatible with workpiece in different thickness.

Wider belt (2000mm) to reach higher paint recovery rate, further saving paint cost.

Production site video

Application

Wooden door

Performance characteristics

High performance spraying machine with belt width 2000mm. Up to 8 guns installed on the 2 reciprocating spraying arms, gun rack speed 2200mm/s, the conveying speed 6m/min.

Dry or water filtering system is available.

Ideal for coating on surface and four sides of curved/raised panels such as solid wood furniture, wood composite door, cabinet board, suite furniture, MDF/HDF board etc.

Technical parameters

7Model	MH7413x2/D/S / MH7413x2/D/K/S
Processing speed	1-6m/min
Processing width	1300mm
Processing thickness	5-80mm
Air pressure	0.6mpa
Total power	22kw
