 D6  Inert Coating Line

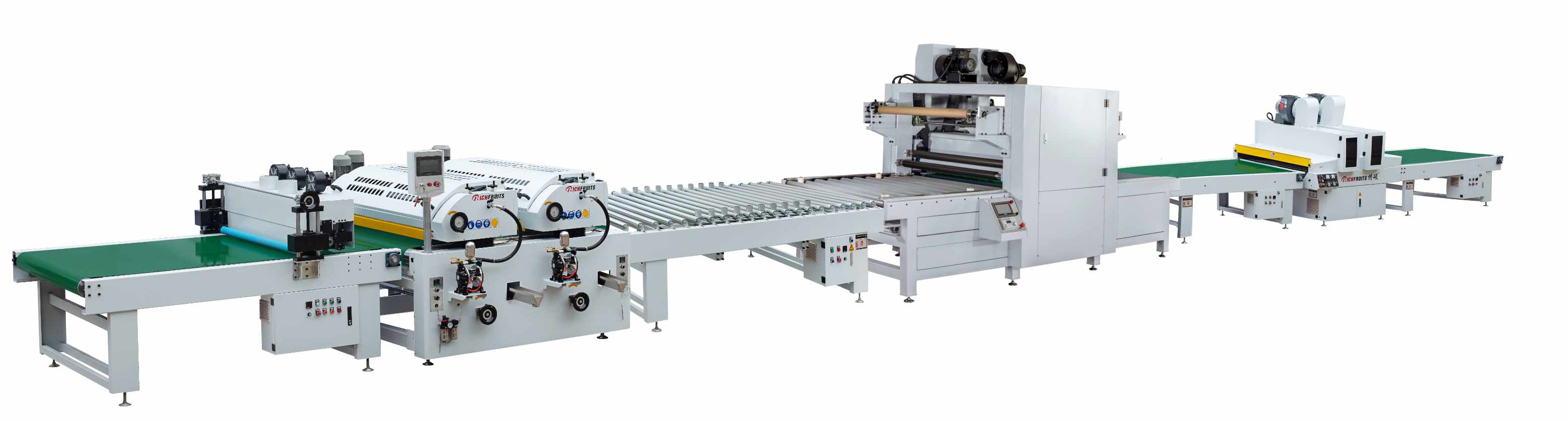

Layout: Dust cleaning- Roller coater-Conveyor-Inert coating machine- UV curing-Conveyor

丨Key Features

 Coating and curing all kinds of surfaces including aluminum board.
 With unwinding station to apply film on coated board, and rewinding station to separate the film after curing.
 Circulating recycled film for repeatly using.

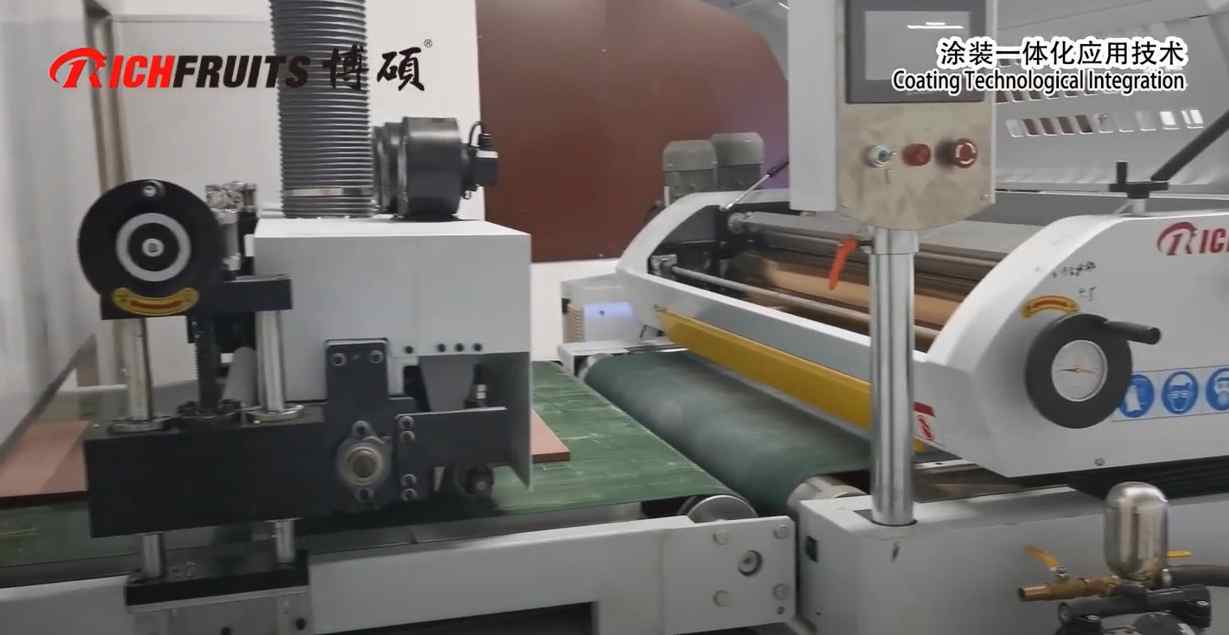

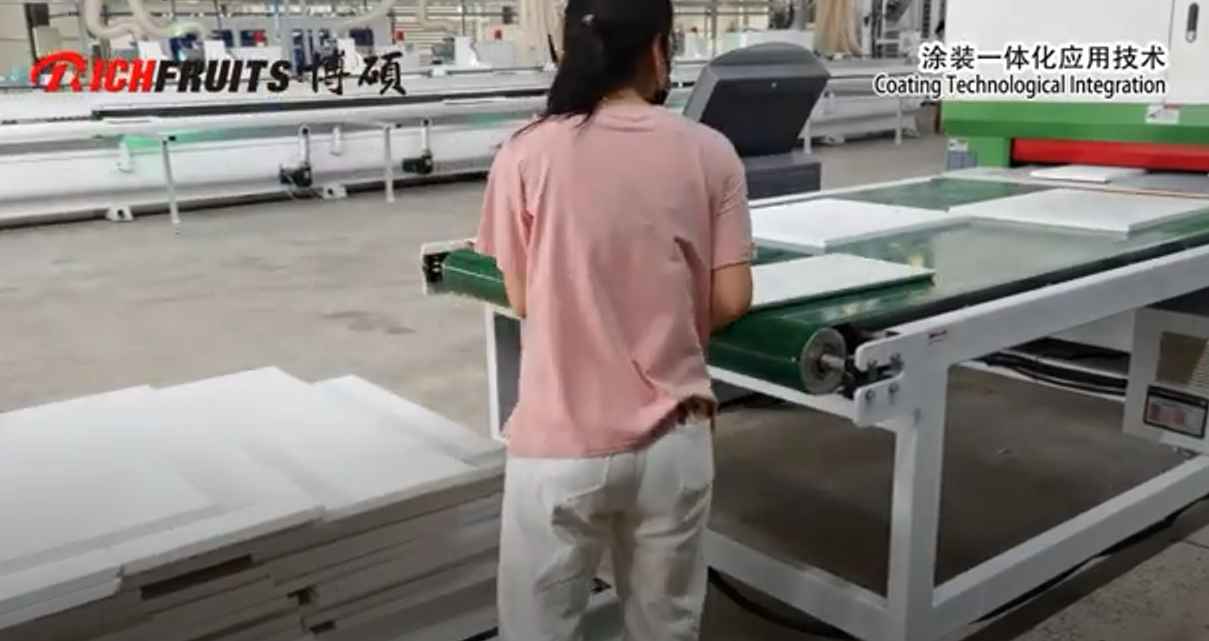

Production site video
Application
automated coating machines
Wooden door
Performance characteristics

    Inert Coating is a very popular UV coating technology. With different film texture, the surface finishing effects can be various: high gloss, super matte (5 gloss degree), soft silk touch, embossing texture.

    Compared to roller UV coating line, the inert UV coating line has an inert coating machine between the roller coater and UV curing machine, it is more cost effective since the film can firmly pressing the coating into the substrates, thus less roller coating process is needed. The inert coating machine can be added to your existing UV line.



Technical data

 Coating width

1300mm

 Working height/thickness

2-90mm

 Feeding speed

5-20m/min

 Line length

18m

 Installed power

75KW

Photo gallery
