B2

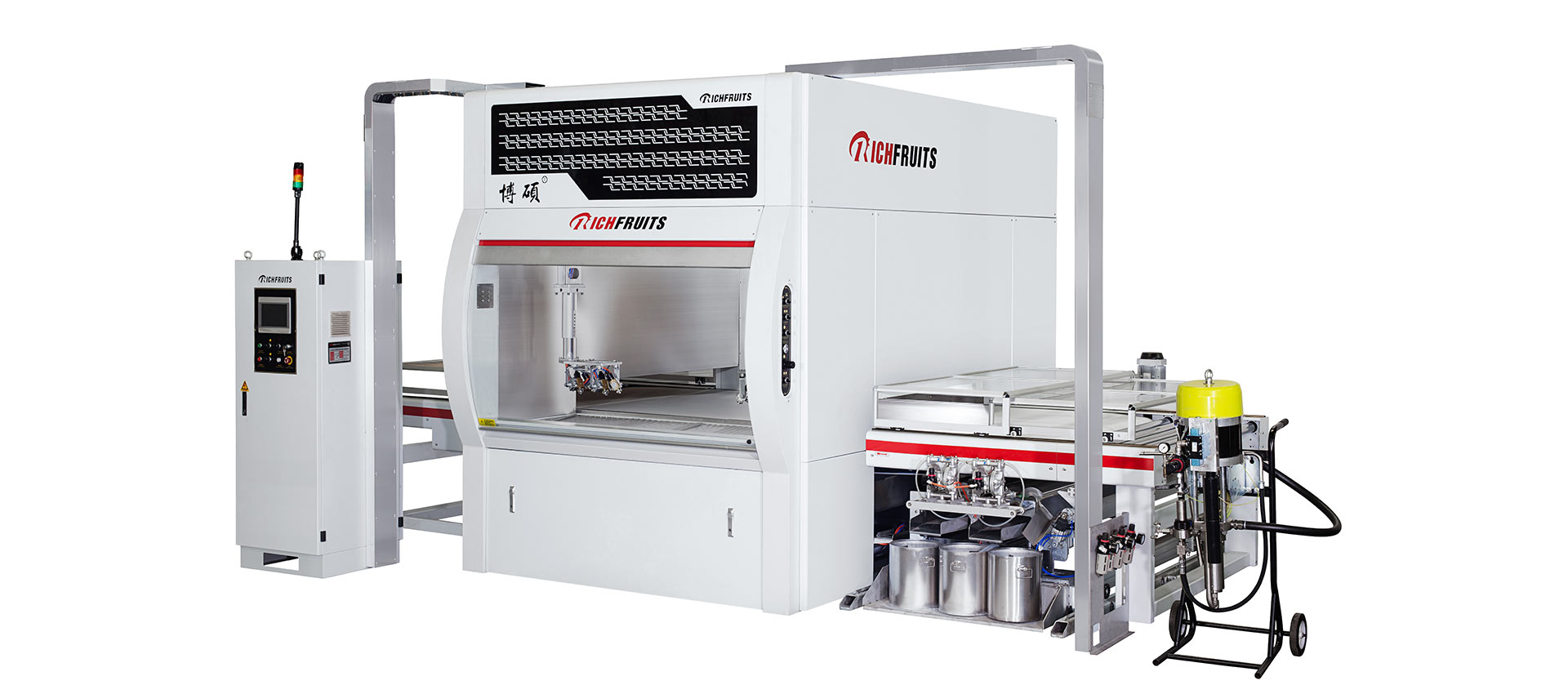

Dual Oscillating Automatic painting Machine
 High precision reading barrier investigates the size and shape of workpiece for smart spraying

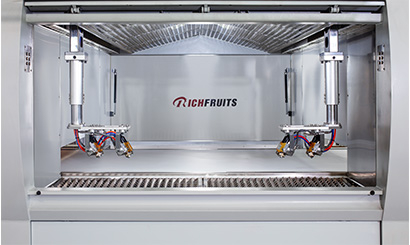

 Two oscillating arms moved in separate ways to eliminate painting mist, auto lifted arms compatible with workpiece in different thickness

 Thanks to paint recycling system, paint recovery rate reaches to 96%
 Built-in PLC and touch screen to monitor and control the production
 Customized conveyor system: belt/ chain rod, and filtration: dry/water

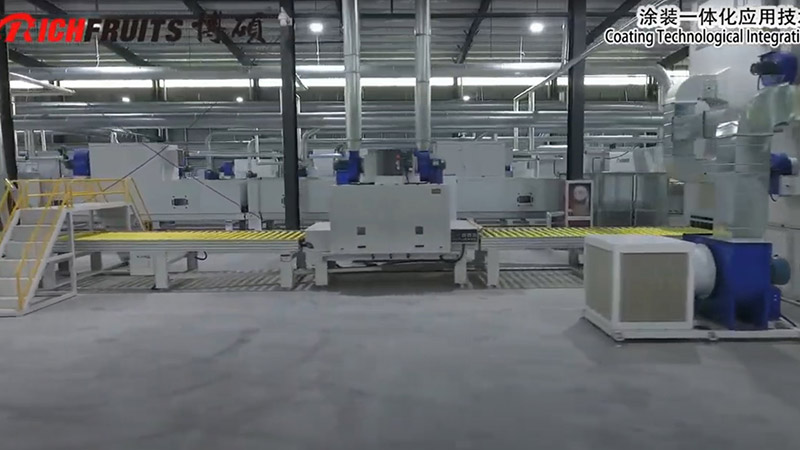

Production site video
Application
Wooden door
Performance characteristics

Ideal for high efficiency automatic coating of surface and four sides of solid wood furniture, solid wood composite door, cabinet board, suite furniture, art ware etc. with high quality finishing effect. Work perfect with solvent paint and solvent-free paint: UV, PU, AC, NC and Water-Based paint while preserving environment and saving production cost.

Technical parameters

Model

MH7413x2/D / MH7413x2/D/K

Processing speed

1-6m/min

Processing width

1300mm
Processing thickness

5-80mm

Air pressure 0.6mpa
Total power 15kw
Photo gallery
