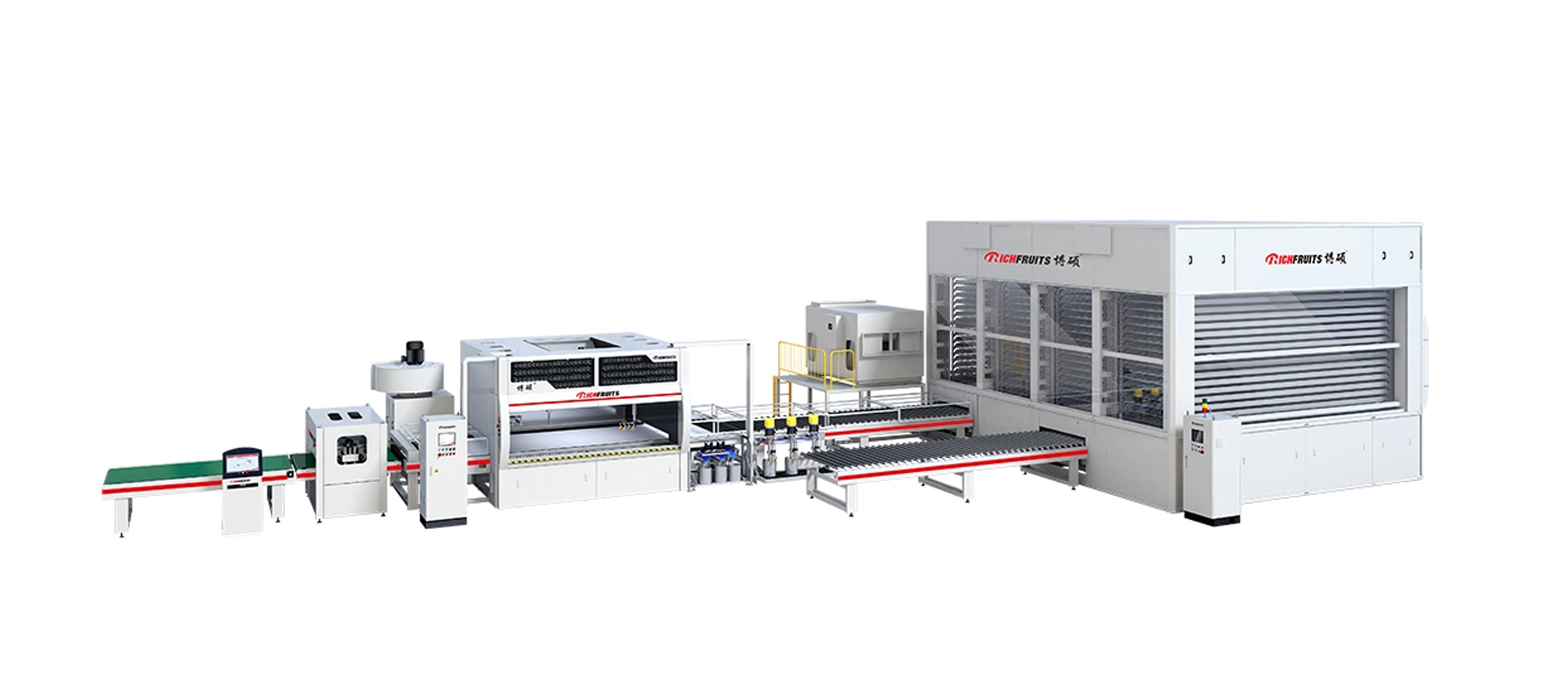

 06  Automatic spraying line with vertical oven

 Conveyor-Dust cleaner-Spray coating machine(B1/B3/B5)-Conveyor-Vertical drying oven-Conveyor

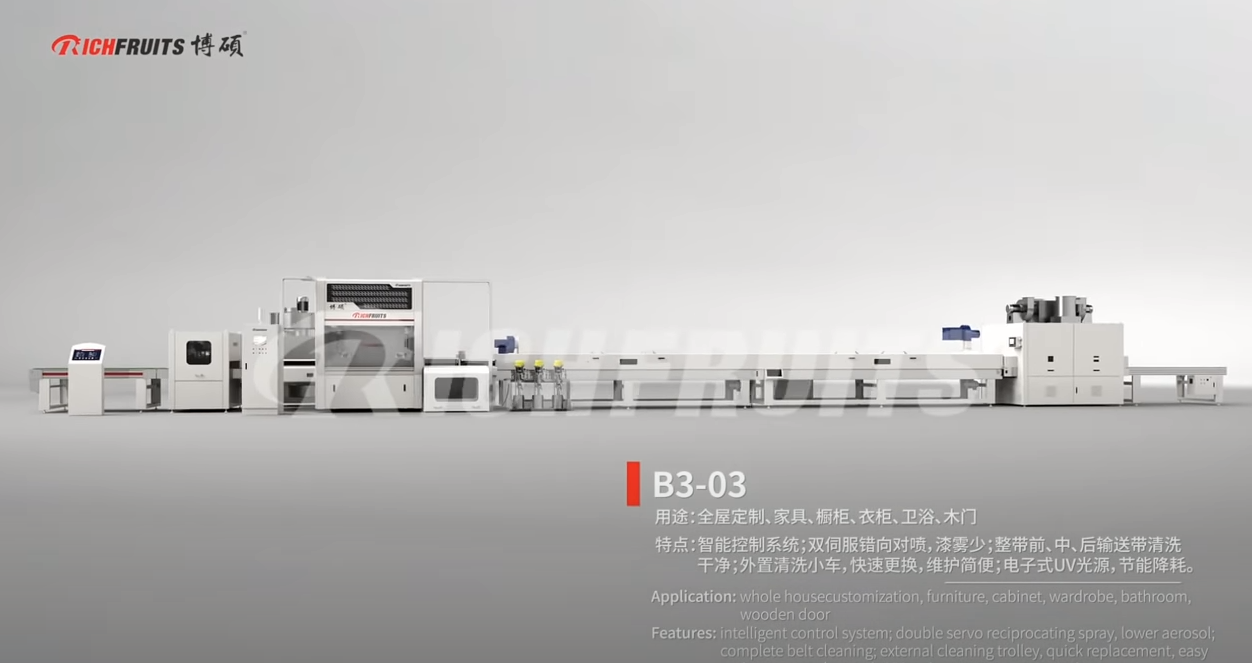

 B1/B3/B5 spray coating machine are alternative plans for small/medium/large output

 Ideal for high-quality and continuously auto finishing process of workpiece with top surface and 4 edges coated and cured simultaneously

 The most space-saving solution, workpiece are completely cured right after vertical oven

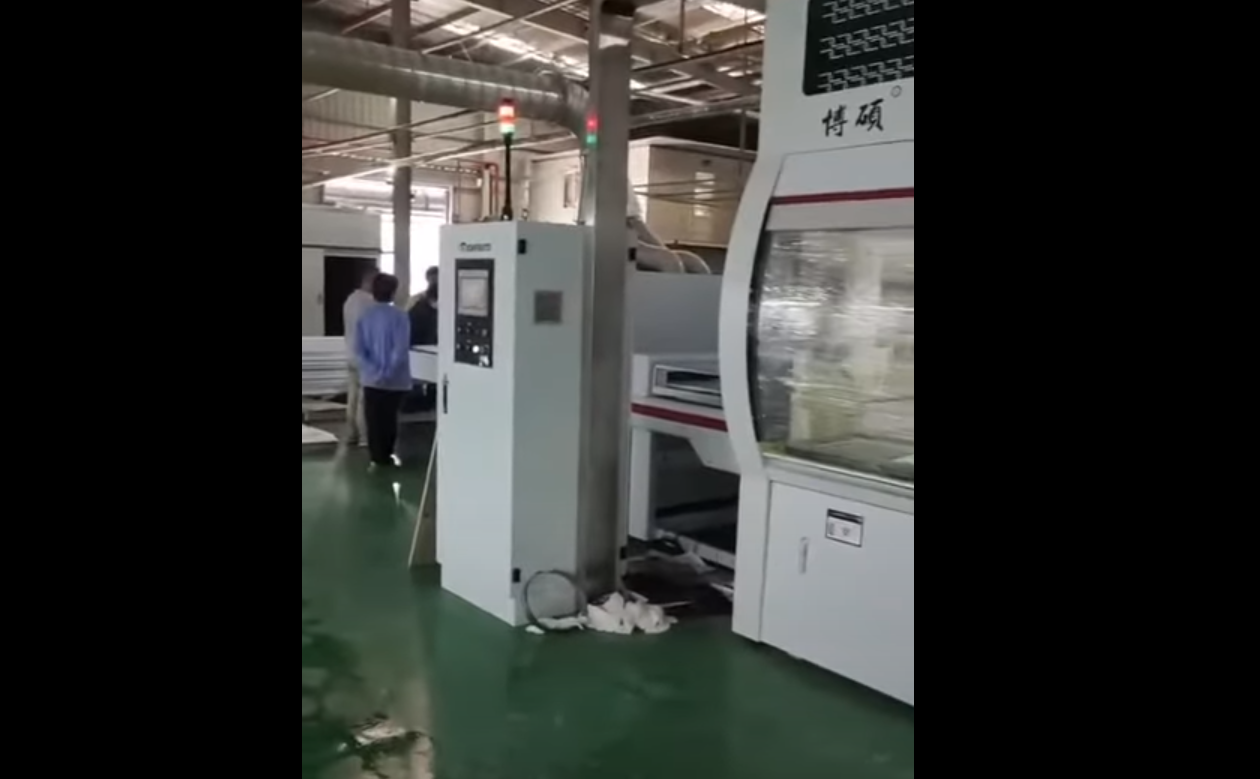

Production site video
Application
automatic spray lines
Wooden door
Performance characteristics

The most saving time and space spraying line configuration, three-dimensional drying room to the direction of space height, does not take up the length of the field,take into account the best leveling performance of paint. For a long time dry paint, water come out to dry state, you can package.

Technical parameters

Capacity

1500㎡

Total power

65kw

Gas consumption

2.5m³/min

Machine size

24m x 9.5m x 5.4m

Bearing

800kg/㎡

Instead of staff 12 people
