Wood Stain Application Roll Coating Line

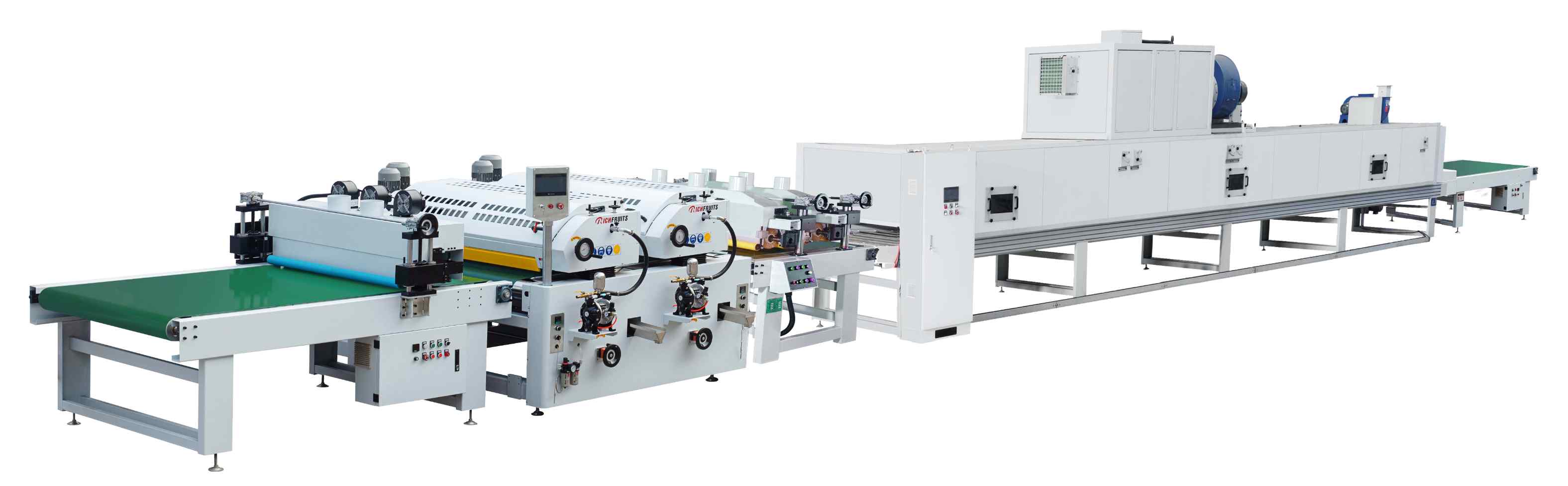

Layout:Dust cleaning- double roller coating machine- staining machine- hot air drying tunnel- conveyor

China roller coating line



丨Key features

 Specially designed for brushing stain or other finishes on wood furniture, flooring, panels
 Available with various brush material in the stain wiping machine
Variable speed drives on each brush

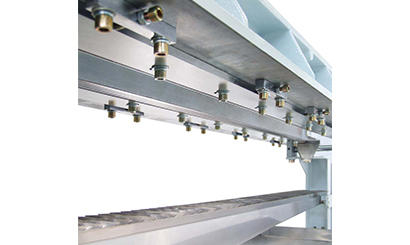

Nozzles installed inside hot air drying tunnel to release hot air onto the workpiece for fast cure of water-based paint



china roller coating line
China roller coating line operating principle

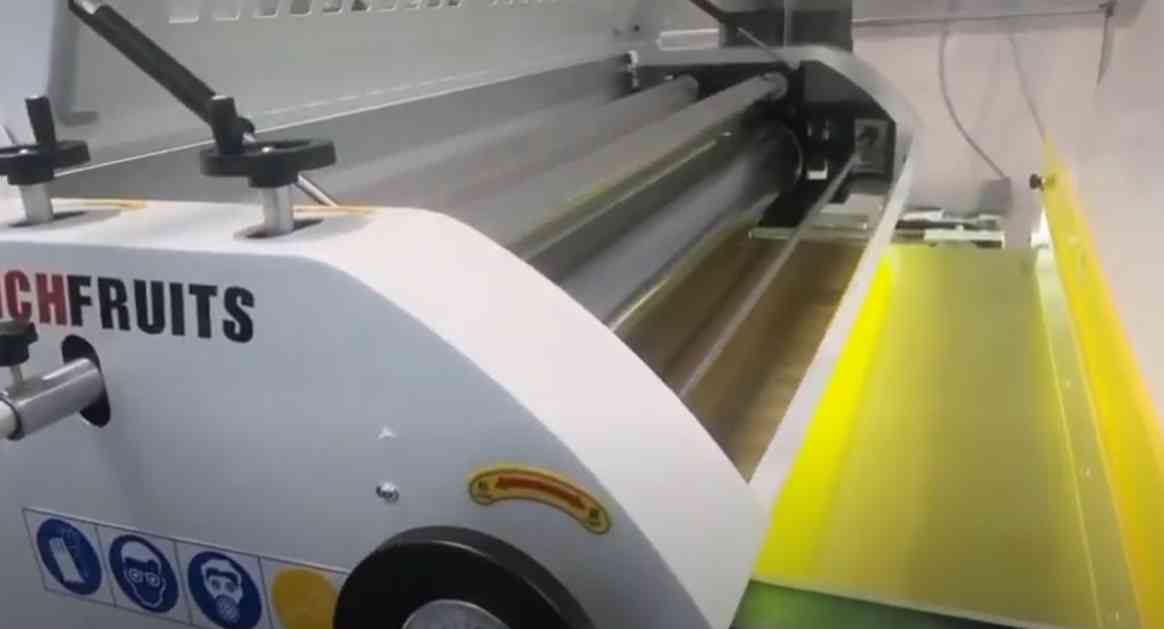

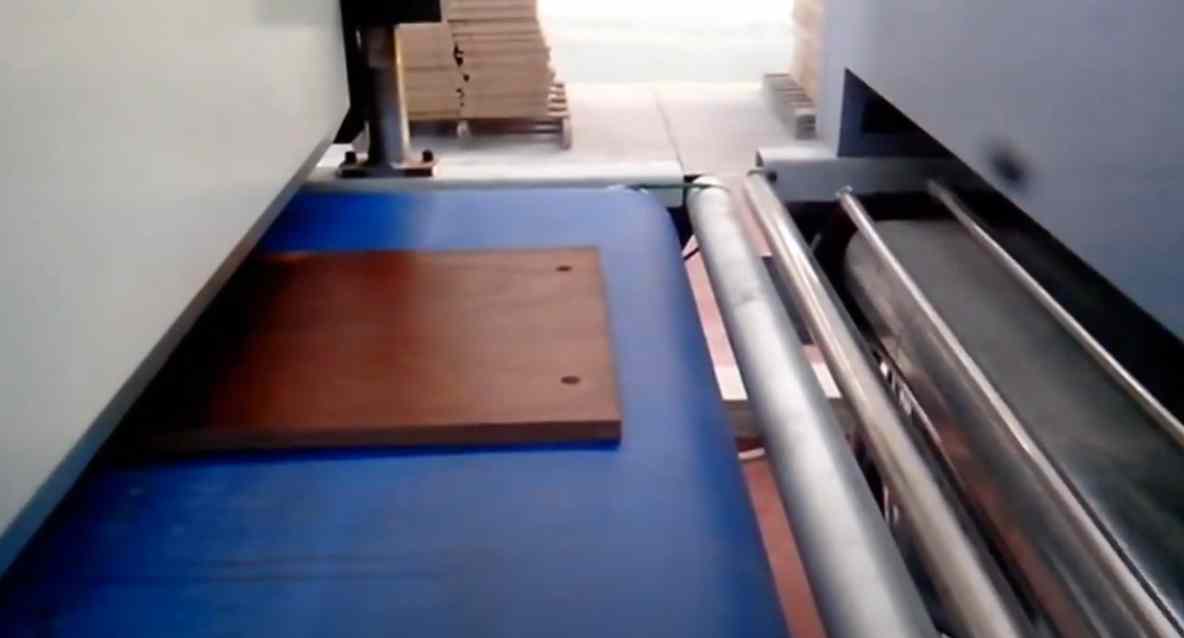

Production site video
Wood Stain Application Roll Coating Line
china roller coating line
Application
Wooden door
Performance characteristics

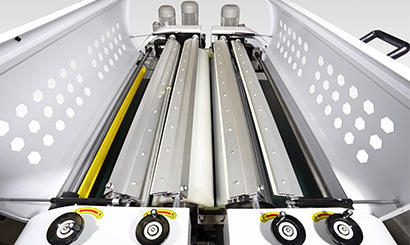

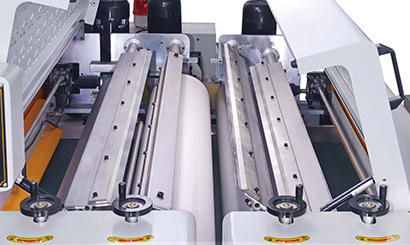

The staining machine often comes after a roller coating machine. A staining machine is designed to evenly apply the stain onto flat workpiece surface and penetrate into the grain. double bristle rolling brush is installed in the machine to distribute the stain, make sure the stain is uniformly and smoothly distributed.

In order to wipe the stain into different type of wood species and conditions, the brushes in the staining machine can be adjusted accordingly and the material of the brush can be chosen among nylon, animal hair, sisal and so on. The brush is easy to maintain and easy to replace.

Technical data

Coating width

1300mm

Feeding speed

5-20m/min

Working hight/thickness

2-90mm

Line length

21m

Installed power

39KW

Photo gallery
