 D2  Reverse filling roller coating line
Layout:Dust cleaning-reverse filling roller coater-UV curing machine-conveyor

丨Key features

Two rubber applicator roll with one reverse filling roller in between
Accurate control of the lacquer weight
Compatible with solvent based, water based, and UV fill coating.
Easy to maintain: quick change release system on application roller/blades
Thickness control protection regime to prevent feeding a higher workpiece and damage the applicator roller

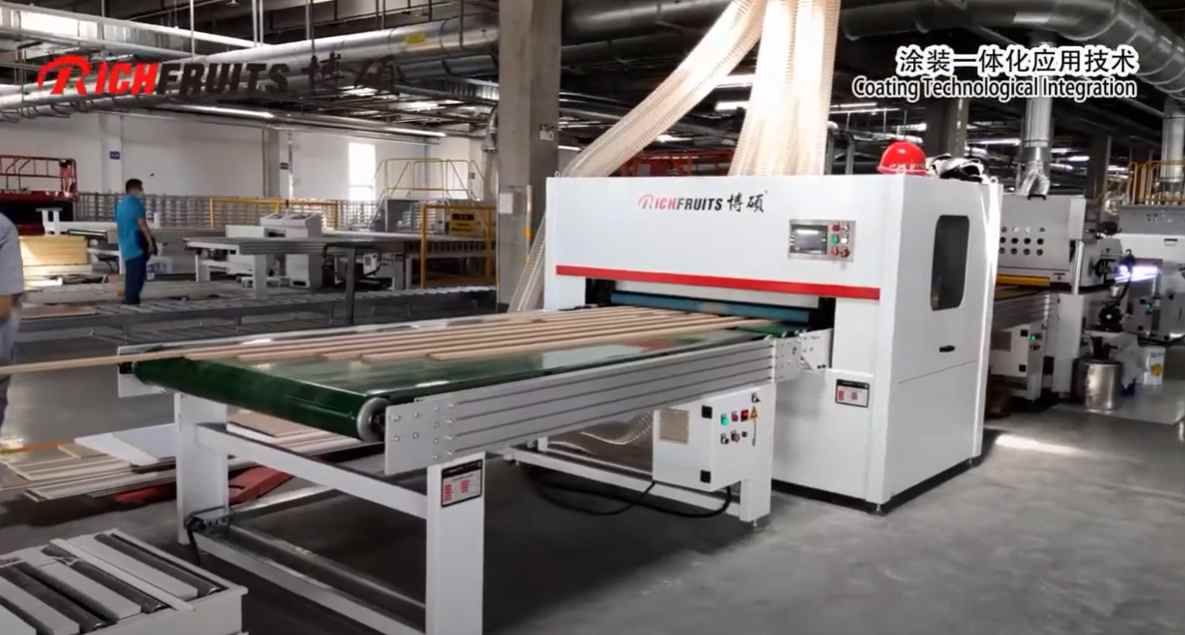

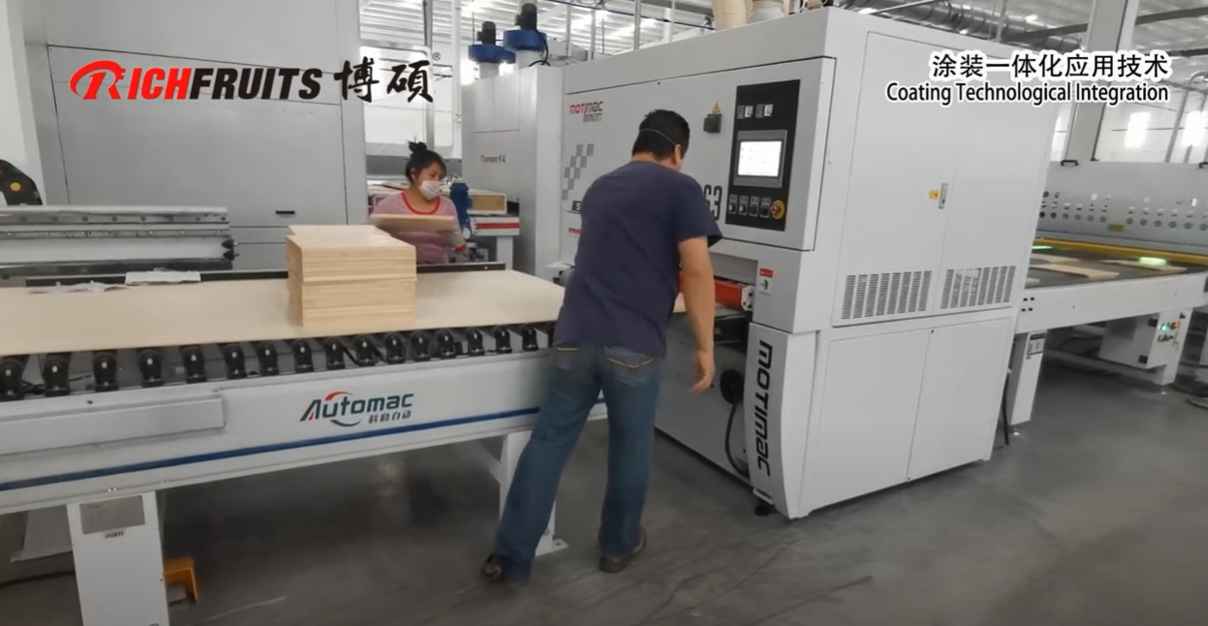

Production site video
Application
door-3296644_1920
Wooden door
Performance characteristics

This reverse fill roller coating line provides even and smooth filling on porous open grain panels like oak, veneers, flooring, particle board, and MDF. This reverse filling line can be used as standard differential roll coater for application of UV sealer or top coat.

It also works as a filling machine for application of water-based or UV filling material to calibrate substrates with porous veneer panels up to 1300mm wide.

Technical data

Coating width

1300mm

Working height/thickne

2-90mm

Feeding speed

5-20m/min

Line length

16m

Installed power

60Kw

Photo gallery
