Direct and reverse roll coating are two ways of controlling how coating moves from an applicator roll onto a panel. The difference is not simply whether one machine is basic and the other is advanced. Roll direction changes the relative motion at the contact point, which can affect coating transfer, metering, surface filling, leveling and sensitivity to process settings.
For MDF, particleboard, plywood, veneered panels and wooden doors, the correct method depends on substrate condition and the purpose of the coating pass. Richfruits provides different roller coater configurations for flat-panel finishing, including single, double, three-roller and forward-and-reversed models. A process that works for sealing a porous board may not suit a controlled top layer. Selection should follow the finishing task, not the more complex configuration.
Choose direct roll coating when the job needs straightforward coating transfer, the panels are stable and flat, and the process benefits from depositing material without a strong reverse wiping action.
Consider reverse roll coating when tighter transfer control, redistribution or removal of excess coating, or a more controlled wet film is required.
Neither method is automatically better. The practical sequence is:
Substrate condition → Coating task → Film target → Transfer method → Trial validation
In direct roll coating, the surface of the applicator roll moves in the same general direction as the panel at the coating contact point. Some equipment literature also calls this forward roll coating. The wet coating carried by the roll contacts the moving board, and part of that coating transfers to the surface.
Because the roll and panel move together at the nip, the process creates a relatively direct transfer path. The amount deposited still depends on viscosity, roll gap and pressure, applicator speed, conveyor speed, roller surface and panel wetting. Direct coating is not uncontrolled; it simply uses a different transfer relationship.
In reverse roll coating, the applicator-roll surface moves against the direction of panel travel at the contact point. This opposing motion creates additional shear and a wiping effect.
Depending on the roller arrangement, it can meter the coating more strongly, redistribute material across the surface or remove part of the excess wet coating.
This can widen the control range, but it also makes the result more dependent on speed differential, roll gap, coating condition and mechanical stability. “Reverse” describes the transfer relationship, not the complete machine structure.
Direct or reverse describes motion and coating transfer. Single-, double- and three-roller coater describes roller quantity or arrangement. A three-roller coater is not automatically a reverse coater, and reverse coating does not always require three rollers.
Richfruits lists single-, double- and three-roller coaters separately from a forward-and-reversed roller coater. Equipment comparisons should therefore review both roller configuration and applicator movement relative to the panel.
Direct roll coating favors straightforward deposit and can suit sealing, priming, filling or base-layer tasks that need sufficient material. A porous surface may absorb coating quickly, while uneven or poorly sanded panels may receive it inconsistently.
Reverse roll coating adds stronger metering and wiping. This may help control the wet film, smooth distribution or limit excess material.
It does not automatically produce a thinner or more accurate layer. Roller geometry, coating rheology, line speed and panel condition can change the result.
On stable, well-prepared panels, direct coating can provide efficient coverage. Poor viscosity matching, uneven panels or incorrect settings may cause roller marks, local buildup or differences between dense and porous areas.
Reverse coating can redistribute material and reduce excess deposit, but added shear can also cause streaks or visible marks. It cannot compensate for poor sanding, dust, major thickness variation or an unsuitable formulation.
Neither method can correct an unstable substrate by itself. Surface preparation must be controlled before the transfer method can perform consistently.
The two methods respond differently to the same adjustment.
Higher viscosity may increase build but reduce leveling. Lower viscosity may improve flow while increasing penetration or flooding. Roll gap changes coating supply, conveyor speed affects contact time, and applicator speed or speed differential changes shear and transfer.
Panel flatness is equally important. Thickness variation or unstable feeding changes contact across the width. Reverse coating may react strongly to small changes in speed relationship or nip condition, so process selection and parameter setup remain closely connected.
Direct roll coating is a strong starting point when a flat panel needs coating deposit without deliberate reverse wiping. Typical tasks include sealing a prepared surface, applying a base layer or transferring enough material for the next finishing stage.
It suits panels with reasonably consistent thickness, sanding and porosity. MDF, plywood and other boards may all use direct coating, but face density, previous sealing, moisture and preparation determine how evenly they accept material.
Its advantage is a clear transfer relationship that avoids unnecessary complexity. Operators can focus on coating condition, roll gap, contact and line speed without introducing a stronger reverse wiping action.
Its limitation is that high transfer is not always controlled transfer. Highly absorbent or inconsistent panels may still need better sealing, multiple passes or tighter preparation control.
Direct roll coating is therefore worth evaluating when:
The coating pass needs adequate material deposit.
The panel surface is flat and consistently prepared.
Strong wiping or removal of excess coating is unnecessary.
The required finish can be achieved without a large speed differential.
A comparatively straightforward operating window is preferred.
Reverse roll coating should be evaluated when the pass needs more than simple deposition: controlling excess coating, redistributing the wet layer or creating a deliberate metering and wiping action.
For porous panels, reverse coating may help in some stages but is not a universal solution. Raw MDF may first need enough material to seal or fill the surface; a later reverse pass may then control distribution. On another line, direct coating may already meet the target. The function of the pass matters more than the substrate label.
Reverse coating adds another transfer-control mechanism, but it is more sensitive to speed relationship, gap, rheology and machine configuration. It often requires more disciplined trials and operation. Without a clear process reason, it may add complexity without improving the panel.
Reverse roll coating is worth considering when:
Excess wet coating must be removed or redistributed.
The coating amount requires closer transfer control.
Surface consistency is more important than maximum deposit.
The process needs a deliberate wiping or shearing action.
Operators can maintain stable gaps, speeds and coating conditions.
Reverse coating should not be selected simply because it appears to be a more advanced process.
Comparison Factor | Direct Roll Coating | Reverse Roll Coating |
|---|---|---|
Roll-to-panel movement | Applicator surface moves with panel travel at the contact point | Applicator surface moves against panel travel at the contact point |
Transfer mechanism | Relatively direct coating deposit | Stronger metering, wiping or controlled redistribution |
Typical process value | Useful when adequate transfer and coverage are required | Useful when transfer amount or wet-film distribution needs closer control |
Substrate demand | Benefits from flat, stable and consistently prepared panels | Also requires stable panels and may be more sensitive to contact variation |
Main control factors | Viscosity, roll gap, pressure, roll speed and conveyor speed | The same factors, with greater importance placed on speed differential and shear |
Process complexity | Usually more straightforward | Usually requires finer matching and validation |
Final decision | Confirm with representative trial panels | Confirm with representative trial panels |
Begin with the board, not the machine name.
Check panel type, porosity, face density, flatness, thickness consistency, sanding, moisture and face-to-edge differences. Selection is unreliable when substrate condition is unknown or changes by batch.
A dense, sealed panel behaves differently from raw porous MDF. Veneer grain, local absorption, plywood quality, sanding and glue lines influence wetting, penetration and how much coating remains on the surface.
The following conditions should be reviewed before choosing the transfer method:
Whether the panel is raw, sealed or previously coated.
Whether sanding is consistent across the full width.
Whether face density varies between production batches.
Whether panel thickness is stable enough to maintain uniform contact.
Whether dust remains in pores, grain or surface depressions.
Whether the edges and faces require different treatment.
Define what the pass must achieve: filling, sealing, priming, coloring, base coating, top coating or leveling.
Decide whether texture should remain visible, whether the surface will be sanded again, and whether another roller, spray or curtain-coating stage follows.
Direct coating may suit reliable deposit; reverse may suit controlled redistribution or excess removal. Tie the choice to the function of that stage rather than applying one rule to the whole line.
The wet film should also be evaluated in relation to the final result. A coating that appears smooth immediately after the roller may behave differently during leveling, drying or curing.
The roller coater operates inside a process.
Sanding and dust removal affect wetting. Stable conveying maintains alignment and nip contact. Downstream leveling, hot-air or infrared drying, and UV curing affect the final surface.
A method that looks successful when wet may still fail after drying, curing or sanding. Richfruits therefore evaluates substrate, coating, roller configuration, settings and downstream curing together during line planning.

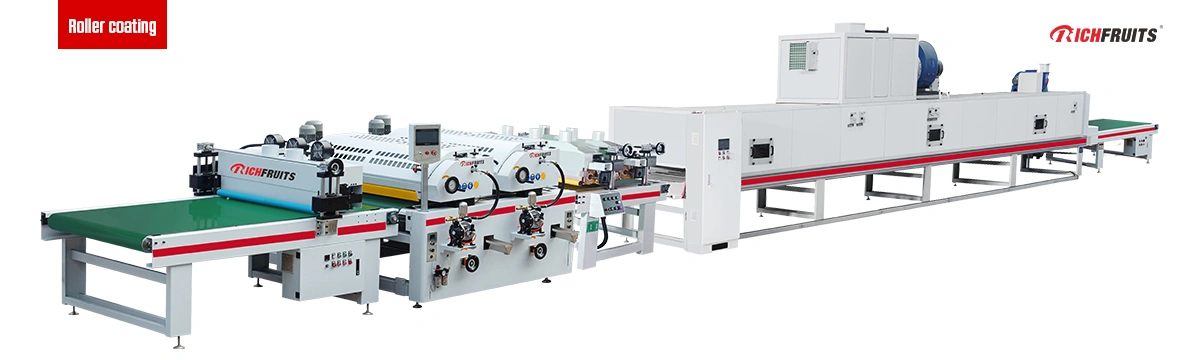

Richfruits Roller Coating Line
The selection should consider:
Upstream sanding and dust removal.
Panel loading and conveying stability.
The number and purpose of coating passes.
Leveling time between application and drying.
Hot-air, infrared or UV curing requirements.
Intermediate sanding or recoating.
Continuous production repeatability.
The correct method repeatedly reaches the required result in production. Complexity does not guarantee a better finish.
Direct may suit one layer and reverse another, and a multi-stage line may use both transfer approaches.
The final decision sequence should remain:
Substrate condition → Coating task → Film target → Transfer method → Trial validation
It is also useful to make this decision for each coating pass rather than for the production line as a whole.
The first pass may prioritize penetration control and sealing, an intermediate pass may prioritize filling and sandability, and a final pass may prioritize uniform appearance. The same factory can therefore have a valid reason to use direct transfer in one section and reverse transfer in another.
This pass-by-pass approach also helps prevent an equipment label from replacing a real process requirement.
Compare the methods with representative panels, the same sanding condition and one coating batch.
Record:
Coating viscosity.
Roll gap.
Applicator-roll speed.
Conveyor speed.
Speed differential.
Panel type and surface preparation.
Coating consumption or panel weight change.
Inspect both the wet and cured surfaces.
Run several consecutive boards and check whether coating amount, appearance and defects remain stable. Inspect uniformity, filling, texture retention, roller marks, streaks, edge buildup and local absorption, then confirm compatibility with the next line stage.
The trial should answer three questions:
Does the process achieve the required coating result?
Can it repeat that result across multiple panels?
Can it remain stable within the complete production line?
Fix the equipment configuration and settings only after the result is repeatable. This avoids choosing a process from terminology alone. Richfruits can use representative panels and coating materials to verify the transfer result before recommending the roller coater configuration and downstream drying or curing process.
Choose direct roll coating when the panel is stable and the coating task needs straightforward, reliable material transfer without strong reverse metering.
Evaluate reverse roll coating when the process needs tighter control, wiping or redistribution of the wet layer.
Reverse is not automatically more advanced, and it does not guarantee a better result on every wood panel. The final choice should be confirmed with the actual substrate, coating, line conditions and repeated trial panels.
The applicator-roll surface moves with the panel in direct coating and against it in reverse coating. The opposing movement creates additional shear and a stronger metering or wiping effect.
The difference concerns coating transfer, not the overall quality level of the equipment.
No.
Precision depends on roller arrangement, mechanical stability, gap, speed differential, coating rheology, panel flatness and operating consistency. A stable direct process can outperform a poorly matched reverse process.
Reverse coating provides another way to control transfer, but the process still needs correct preparation and settings.
There is no single answer.
Raw MDF may need sufficient deposit for sealing or filling, favoring a direct stage. Reverse may help when a later pass requires controlled redistribution or excess removal.
The choice also depends on face density, sanding quality, coating penetration and whether the board has already received a sealing coat. Trial panels are necessary.
No.
Reverse describes movement and transfer; three-roll describes roller quantity or arrangement. A three-roll coater may use different operating relationships, so the supplier’s roller diagram should be checked.
Richfruits’ current product information also lists single-, double-, three-roller and forward-and-reversed roller coaters as separate configurations.
