Choosing a roller coating system is not simply a matter of selecting the widest machine or the fastest line. The right system must match your actual panel dimensions, surface condition, coating chemistry, finish requirements and production target.
A well-matched roller coating system can deliver stable film thickness, lower coating waste and repeatable quality. A poorly matched system may create uneven coverage, roller marks, curing problems, long cleaning times and unnecessary investment. Use the following six factors before comparing models or requesting a quotation.

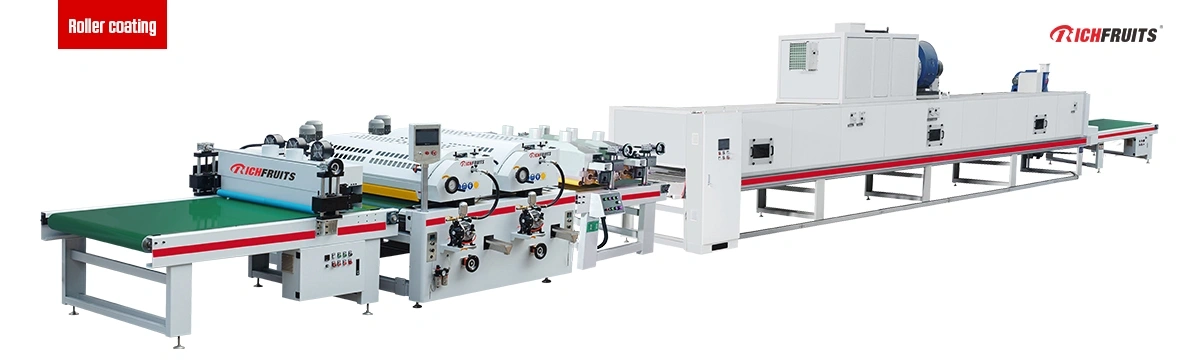

Roller coating line for flat panels
Roller coating is best suited to flat or relatively flat products with stable dimensions. Common applications include MDF, plywood, solid wood panels, cabinet doors, wooden doors, calcium silicate boards, fibre cement boards, glass, metal sheets and decorative panels.
Before choosing a roller coater, record:
Minimum and maximum panel length and width
Minimum and maximum thickness
Thickness tolerance
Surface porosity and absorption
Panel flatness and possible warping
Edges, grooves, raised areas or surface texture
A standard roller coater is ideal for a smooth, flat panel. Slightly uneven panels may require a floating head or soft rubber application roller. Deep grooves, sharp profiles and complex edges are usually better handled by spray coating or a combined roller-and-spray process.
The coating determines the required roller structure, circulation system, drying method and cleaning procedure.
Tell your equipment supplier the exact coating type, not only the colour or brand. Important information includes:
UV, water-based, solvent-based, epoxy or fluorocarbon coating
Viscosity range
Solids content
Target wet or dry film thickness
Required coating weight in grams per square metre
Primer, filler, sealer or topcoat application
For example, a porous board may need a reverse-fill process to push material into the surface. A clear UV topcoat may require a different roller surface and a more accurate metering system. If the coating is water-based, cleaning and drying capacity become especially important.
The machine should be selected around the coating process, not the other way around.
Different roller arrangements solve different production problems.
Production requirement | Suitable configuration | Main benefit |
|---|---|---|
One standard coating on smooth panels | Single roller coater | Simple operation and lower initial cost |
More accurate coating weight control | Differential or reverse roller coater | Roller speed and direction can be adjusted |
Filler or primer on porous boards | Reverse-fill coater | Improves surface penetration and filling |
Two coating stages in one line | Double or multi-head system | Reduces repeated handling |
Slightly uneven or textured panels | Soft rubber or floating-head system | Maintains contact across the panel |
High-volume continuous production | Integrated roller coating line | Coordinates feeding, coating, drying and curing |
The term “roller coater” describes a machine family, not one universal configuration. Ask the supplier to explain which roller applies the material, which roller meters it, how the gap is adjusted and how the system responds to thickness variation.

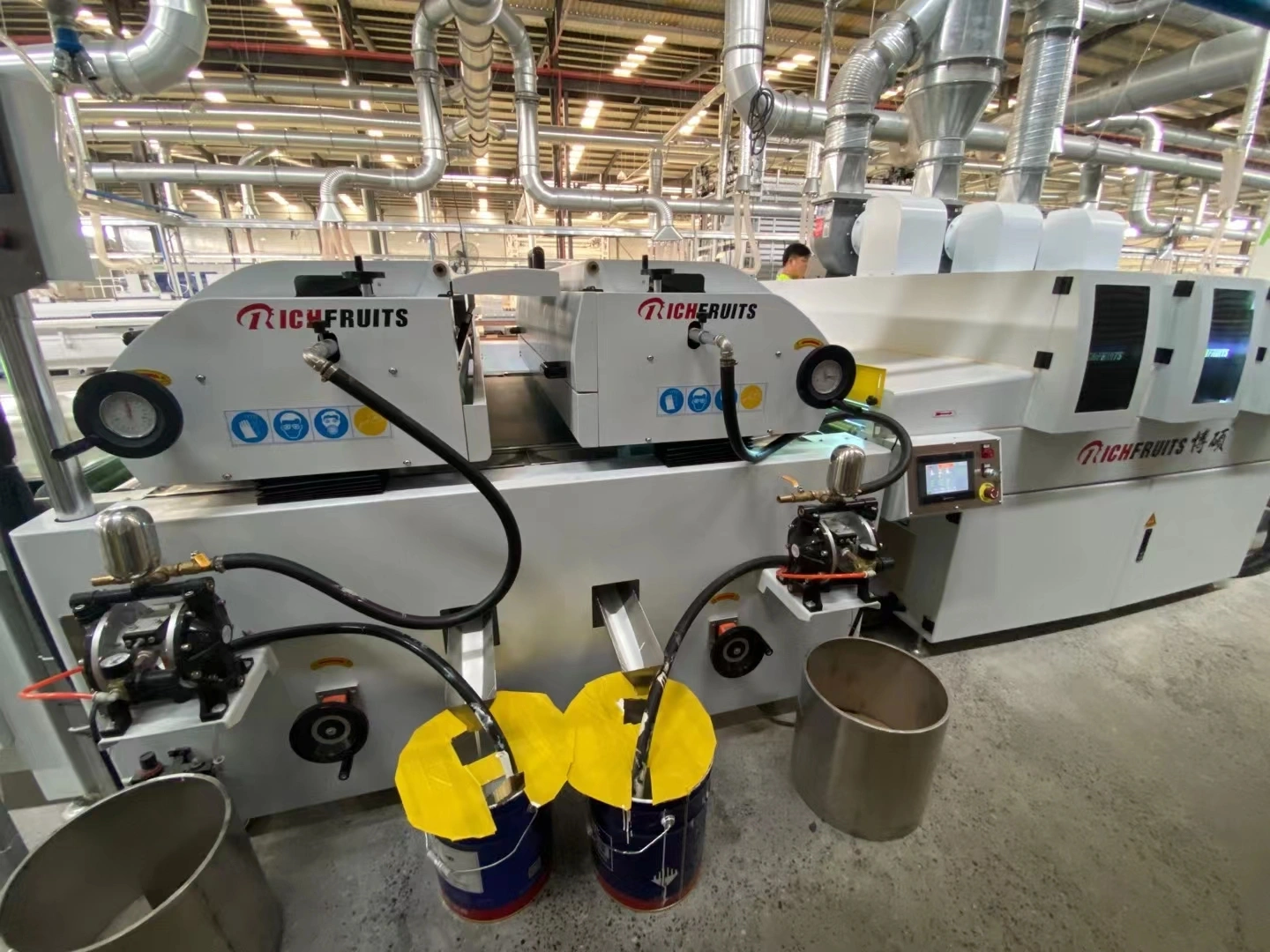

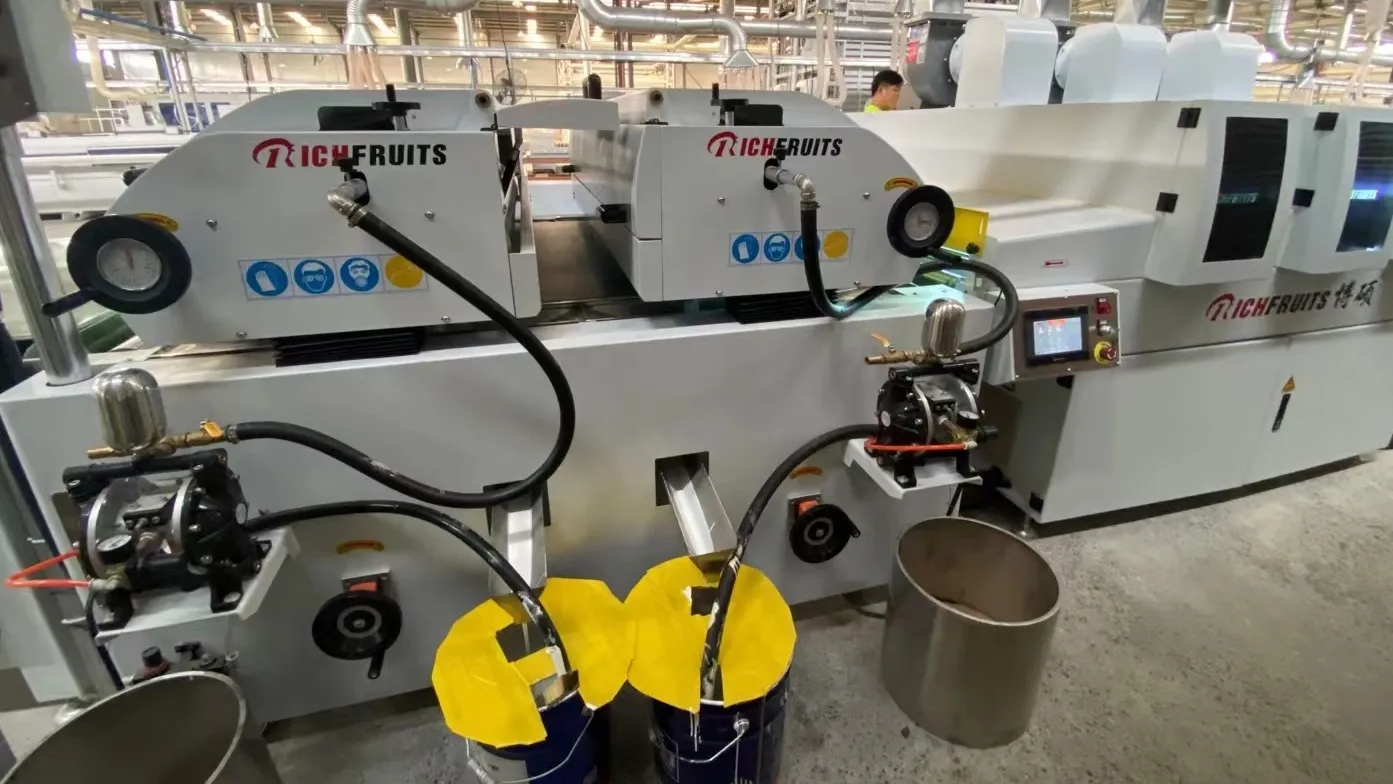

Double roller coater application rollers
Select working width from the largest panel, with enough allowance for alignment and edge control. Do not choose a machine only because its headline speed looks attractive.
A simple planning example:
Working width: 1.3 metres
Conveyor speed: 30 metres per minute
Gross capacity: 1.3 × 30 × 60 = 2,340 square metres per hour
Effective operating rate: 70%
Estimated sellable capacity: approximately 1,638 square metres per hour
The 70% factor is only a planning assumption. Real output is reduced by loading, unloading, colour changes, cleaning, inspections, rejected panels and curing limits.
The complete line—not only the roller coating machine—must support the required output. A fast coater connected to a slow UV oven is still a slow production line.
A roller coating system is only as reliable as its drying or curing section.
For UV coatings, verify lamp power, curing distance, conveyor speed, lamp cooling and power adjustment. For water-based coatings, check flash-off time, air volume, temperature, humidity and oven length. For solvent-based coatings, review ventilation, explosion protection and local environmental requirements.
Ask for test results showing:
Surface dryness
Adhesion
Gloss or matt level
Hardness and scratch resistance
Final film thickness
Performance at the planned line speed
Do not accept “fast curing” as a sufficient specification. The relevant question is whether the coating reaches the required performance at your actual production speed.

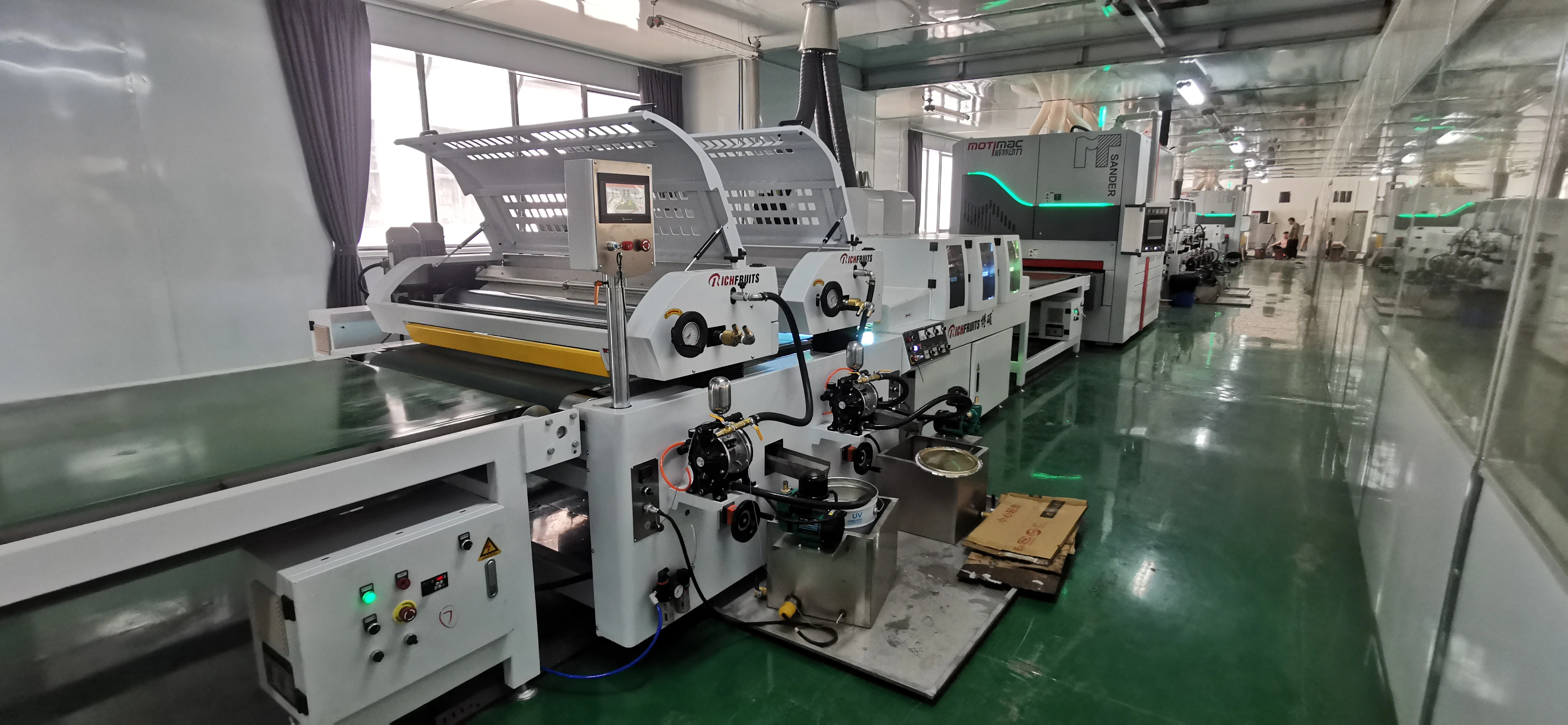

Double roller coater line at customer site
Purchase price is only one part of the decision. A more useful calculation is:
Annual coating cost = coated area × coating weight × coating price ÷ material utilization
Planning example:
1,000 square metres per day
250 production days per year
Target coating weight: 120 g/m²
Annual coating consumption: 30,000 kg
At $2 per kilogram: $60,000 per year
A 10% improvement in material utilization would represent approximately $6,000 in annual coating value in this example. The actual result depends on coating recovery, overspray, start-up losses, cleaning losses and the coating formulation.
Also compare:
Colour-change time
Roller and scraper cleaning time
Quick-release components
Coating recovery and circulation
Spare roller availability
Remote troubleshooting
Operator training
Future expansion options
A modular system may cost more initially but be easier to expand with another coating head, dryer or automation module.
The most frequent mistakes are choosing by machine name, comparing only maximum speed, ignoring panel thickness tolerance, using the wrong roller for a porous surface and forgetting the curing bottleneck.
Another common mistake is testing with a supplier’s standard board instead of your own material. A successful test must use your real panel, coating, target finish and production speed.
For a typical MDF cabinet-door factory, imagine the following requirement:
Panel width: up to 1,300 mm
Two coating stages: water-based primer and UV topcoat
Four colour changes per shift
Medium-volume production
Limited floor space
A practical solution may include dust removal, sanding, a filler or primer roller, a UV-compatible finish roller, UV curing and automatic coating circulation. The final configuration should be confirmed only after testing the customer’s panels and coatings.
Record coating weight, surface uniformity, gloss, curing result, line speed, cleaning time and changeover time. These results are more valuable than a catalogue specification because they show how the system will perform in your factory.
It depends on porosity, required film thickness, coating type and finish. MDF often benefits from a filling or primer stage before the final coating.
Slight unevenness may be handled with a floating head or soft rubber roller. Severely warped or deeply profiled panels may require another coating method.
A single roller is suitable for a simple, stable process. A double roller or multi-head system is more suitable when the line must apply filler, primer and topcoat in stages.
Send panel dimensions, thickness range, material, surface condition, coating data sheet, target coating weight, required finish, daily output, available floor space and existing drying equipment.
The best roller coating system is the one that produces your required finish consistently—not the one with the highest advertised speed. Start with your panels and coatings, calculate real sellable capacity, test the complete process and compare cleaning, curing, service and expansion costs.
