How to Match Different Paint Types with the Right Drying Equipment

Choosing a paint curing oven is not simply a question of which machine reaches the highest temperature. The right system must match the coating chemistry, substrate, part geometry, film thickness and production speed.

A poor match can leave a coating dry on the surface but soft underneath. It may also cause bubbling, pinholes, poor adhesion, uneven gloss or undercured areas. Before comparing equipment, check the coating supplier’s technical data sheet for flash-off time, curing temperature and required exposure time.

Quick Answer: Which Drying Method Fits Which Paint?

UV curing is best for coatings specifically formulated to react to ultraviolet light. Infrared is effective when fast, direct surface heating is needed. Forced hot air is generally more suitable for removing water or solvent and for curing complex-shaped parts. When speed and uniformity are both important, a hybrid system is often the better solution.

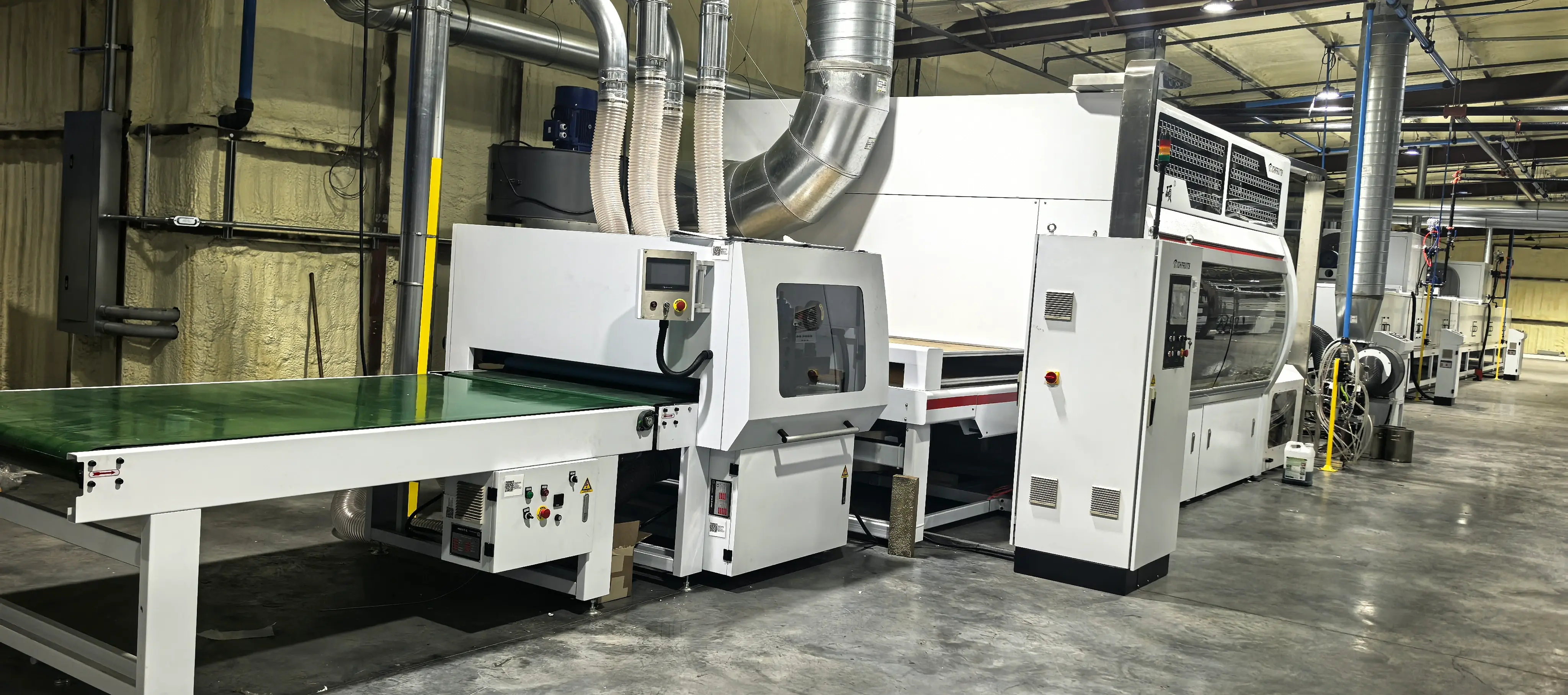

Automatic coating line with an integrated paint drying and curing section

Drying and Curing Are Not the Same

Drying removes water or solvent from the wet film. Hardening develops the coating’s final mechanical and chemical properties. Curing includes the complete process.

This difference matters because a coating can feel dry without being ready for stacking, sanding or adhesion testing. Increasing heat too quickly may form a skin over the surface while trapping moisture or solvent underneath.

For every coating, distinguish among:

• Flash-off time before forced heating

• Surface-dry time

• Recoat or handling time

• Full curing time

These values should come from the coating manufacturer, not from a generic oven setting.

UV Curing Oven: Best for UV-Reactive Coatings

A UV curing oven uses ultraviolet energy to trigger polymerization in a compatible coating. Because the reaction is driven by light rather than conventional bulk heating, curing can occur in seconds under properly controlled conditions.

UV is well suited to flat panels, furniture components, flooring, printed surfaces and other high-speed applications using UV varnish or UV paint. It offers a compact footprint and low heat exposure compared with long thermal ovens.

However, ordinary paint does not become UV-curable simply because it passes under a UV lamp. The coating must contain a compatible photoinitiator. Lamp wavelength, intensity, exposure time and coating thickness must also match.

Pay particular attention to edges, grooves and shadowed areas. If light cannot reach the coating, it may remain undercured. Coatings containing water or solvent may also need a flash-off or pre-drying section before UV exposure.

Infrared Curing Oven: Fast, Direct Heating

An infrared curing oven transfers radiant energy directly to the coating and substrate. It responds faster than a large convection oven and can reduce the length of the heating section.

IR works particularly well on flat or regularly shaped parts with surfaces that have a clear line of sight to the emitters. Common applications include paint drying, powder pre-gelling, panel finishing and rapid temperature ramp-up.

Performance depends on more than lamp wattage. The IR wavelength, emitter distance, reflector design, coating colour, substrate absorption, line speed and film thickness all affect the result.

IR becomes less reliable when parts have deep recesses, hidden faces or large differences in thickness. Thin areas may overheat while heavy sections remain below the required temperature. In these cases, IR should often be followed by hot-air convection.

Published industrial process data show why hybrid curing deserves consideration. IR-enhanced convection has achieved powder-curing cycles of approximately 30–90 seconds for thin flat blanks and around 3–6 minutes for three-dimensional sheet-metal parts. These figures are application examples, not universal settings; coating chemistry, part mass and temperature still determine the final cycle.

Forced-Air Drying Oven: Flexible and Uniform

A forced air drying oven heats and circulates air around the workpiece. Moving air transfers heat while carrying water or solvent vapour away from the coating.

This makes hot air a practical choice for water-based and solvent-based coatings, as well as parts with complex shapes. Unlike line-of-sight radiation, circulating air can reach recessed and partially hidden surfaces.

The trade-off is speed and space. Hot-air systems usually require warm-up time, ducting, exhaust capacity and a longer drying tunnel. Uniform airflow is critical: excessive air velocity can disturb a wet film, while weak circulation can create cold zones.

For water-based paint, the first objective is controlled moisture removal. Applying excessive heat before moisture can escape may cause blistering or surface skinning. A staged process—flash-off, moderate heating, final drying and cooling—is often more stable than one high-temperature zone.

For solvent-based paint, ventilation and vapour concentration must be considered from the beginning. Heating equipment, exhaust design and electrical components must comply with the applicable safety rules for the installation location.

How to Match Equipment to Common Coatings

Water-Based Paint

Use controlled hot air as the primary drying method. IR may be added for rapid preheating, but airflow and exhaust are still required to remove moisture. Monitor inlet-air humidity as well as temperature.

Solvent-Based Paint

Allow sufficient flash-off before strong heating. Use uniform forced air with correctly engineered exhaust and solvent-safety controls. Avoid treating oven temperature as the only process variable.

Powder Coating

IR can bring the coating rapidly to the gel stage, while convection helps equalize the temperature of corners, recesses and sections with different mass. Measure part-metal temperature rather than relying only on the displayed oven temperature.

UV Coating

Use a UV curing oven matched to the coating’s photoinitiator and required dose. If the formulation contains volatile material, add a pre-drying zone. Confirm curing at edges and other areas receiving less light.

PU, PE and Catalyzed Coatings

Follow the specified reaction window, flash-off time and substrate-temperature limit. These coatings should not be selected by the “water-based versus solvent-based” distinction alone.

When a Hybrid System Is Better

No single technology solves every drying problem. Three combinations are especially useful:

• IR plus hot air: IR accelerates heating; hot air removes vapour and reaches shadowed areas.

• Hot air plus UV: the first section removes moisture or solvent; UV completes photochemical curing.

• IR plus convection for powder: IR provides rapid gel, followed by uniform temperature holding.

A hybrid line is often more dependable than increasing the power of one drying method, especially when products vary in shape, thickness or material.

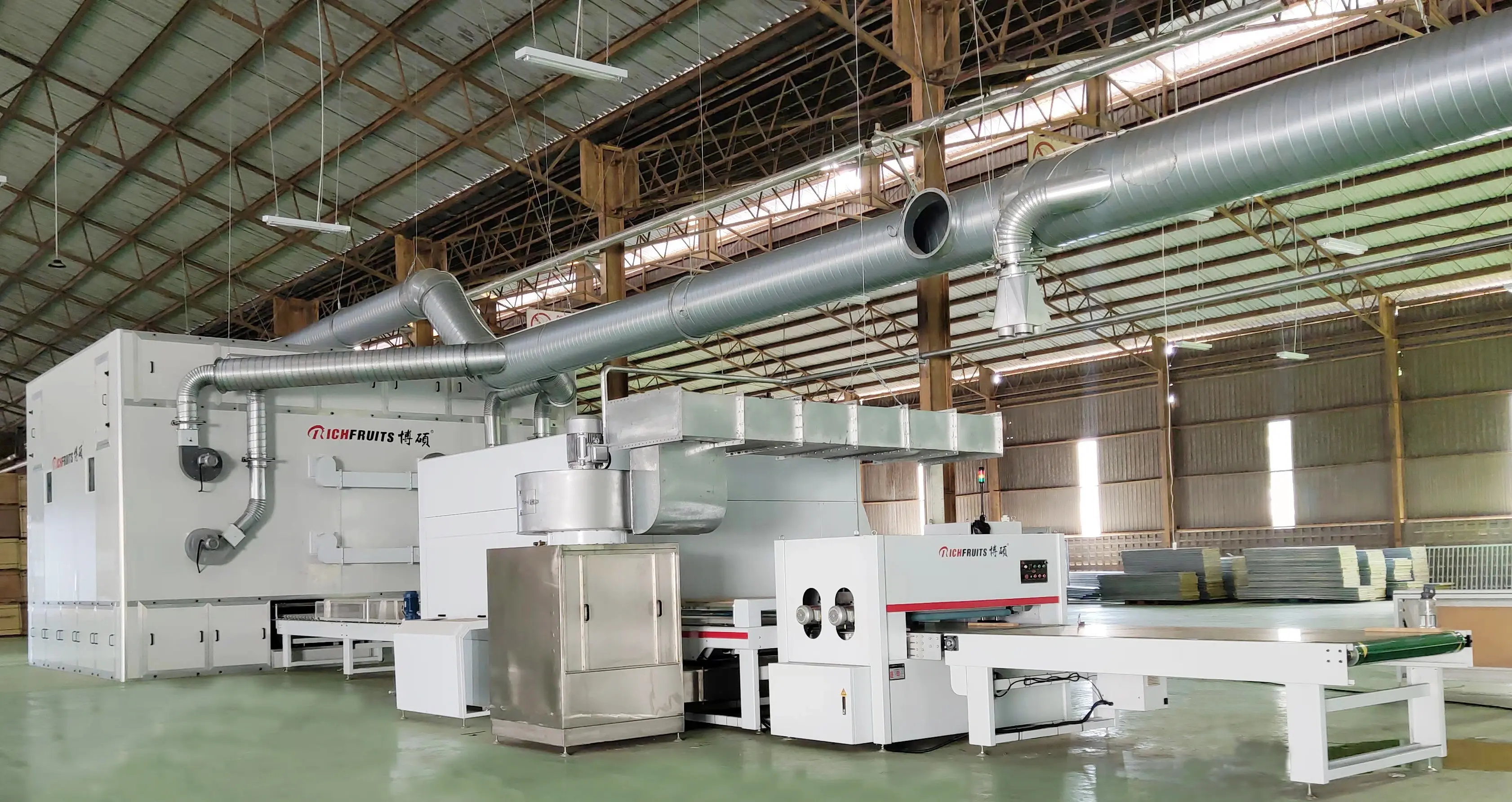

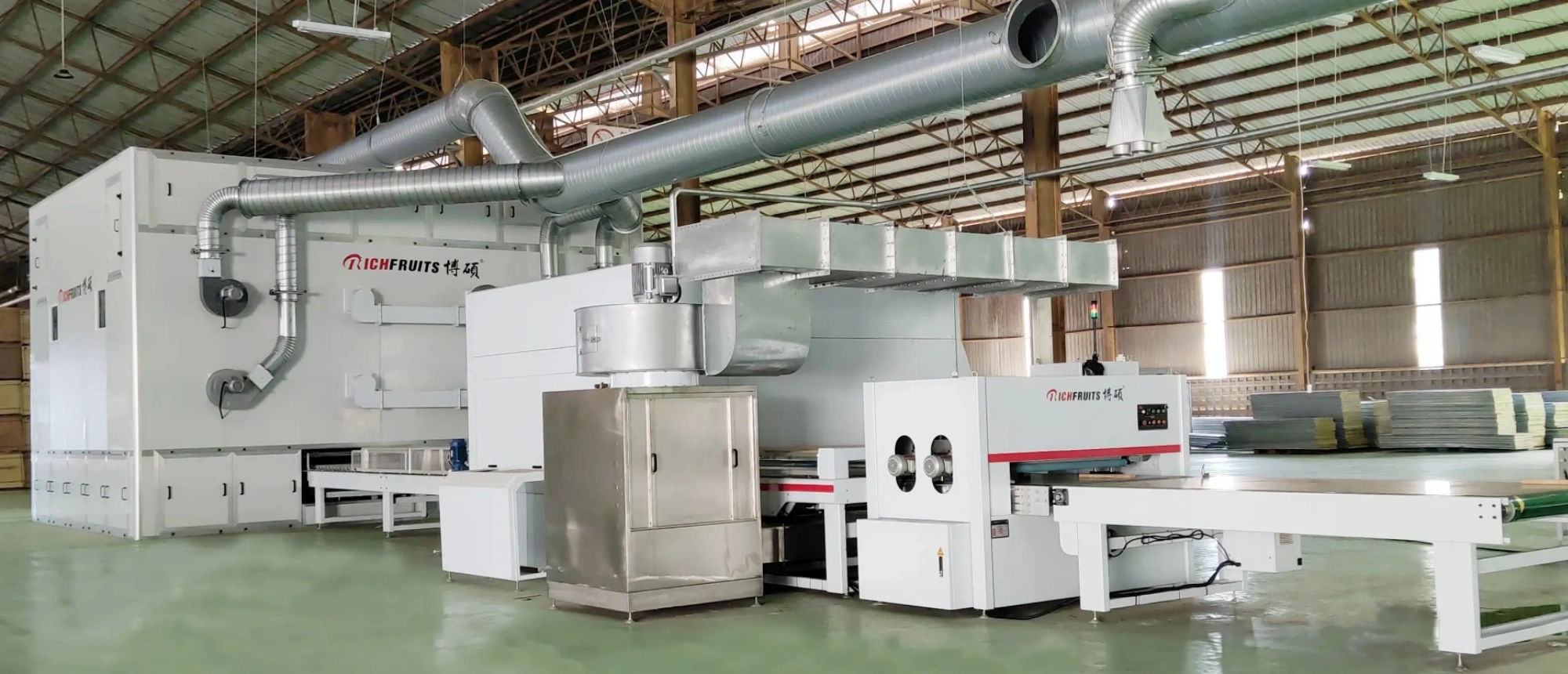

Automatic coating line integrating application, drying and curing equipment

Five Inputs Needed to Size a Drying System

Before requesting an equipment proposal, prepare:

1. Coating name, chemistry and technical data sheet

2. Substrate material and maximum allowable temperature

3. Part dimensions, shape, thickness and working width

4. Wet-film thickness, conveyor speed and required output

5. Available space, exhaust conditions and energy source

Oven length can be estimated from residence time and conveyor speed. For example, a process requiring three minutes at 10 metres per minute needs about 30 metres of active process length before allowances for loading, flash-off, transitions and cooling. This calculation should use the validated curing profile—not surface-dry time.

Common Selection Mistakes

• Assuming a higher temperature always produces better curing

• Using UV lamps with non-UV paint

• Selecting IR equipment only by power rating

• Heating water-based paint without sufficient moisture removal

• Ignoring hidden surfaces on complex parts

• Measuring air temperature but not actual part temperature

• Ordering a production line before testing representative coated samples

Frequently Asked Questions

Is UV curing suitable for every paint?

No. The coating must be specifically formulated for UV curing and matched to the lamp spectrum and exposure dose.

Is infrared faster than hot-air drying?

It can be faster on directly exposed surfaces. The result depends on coating absorption, substrate, part geometry, emitter distance and ventilation.

Which system is best for water-based paint?

Hot air is generally the safest starting point because it removes moisture. IR can be added to accelerate heating when exhaust and humidity control are adequate.

Can one oven process several paint types?

Yes, if it provides adjustable temperature zones, airflow, exhaust, conveyor speed and modular UV or IR sections. Each coating still requires a validated recipe.

Final Recommendation

Choose the coating chemistry first, then evaluate the substrate and part geometry. Only after those factors are known should line speed, oven length and power be calculated.

Richfruits can evaluate your paint type, technical data sheet, substrate, working width and target output to recommend an appropriate UV curing oven, infrared system, forced air drying oven or hybrid configuration.
