08
Painting line manufacturer

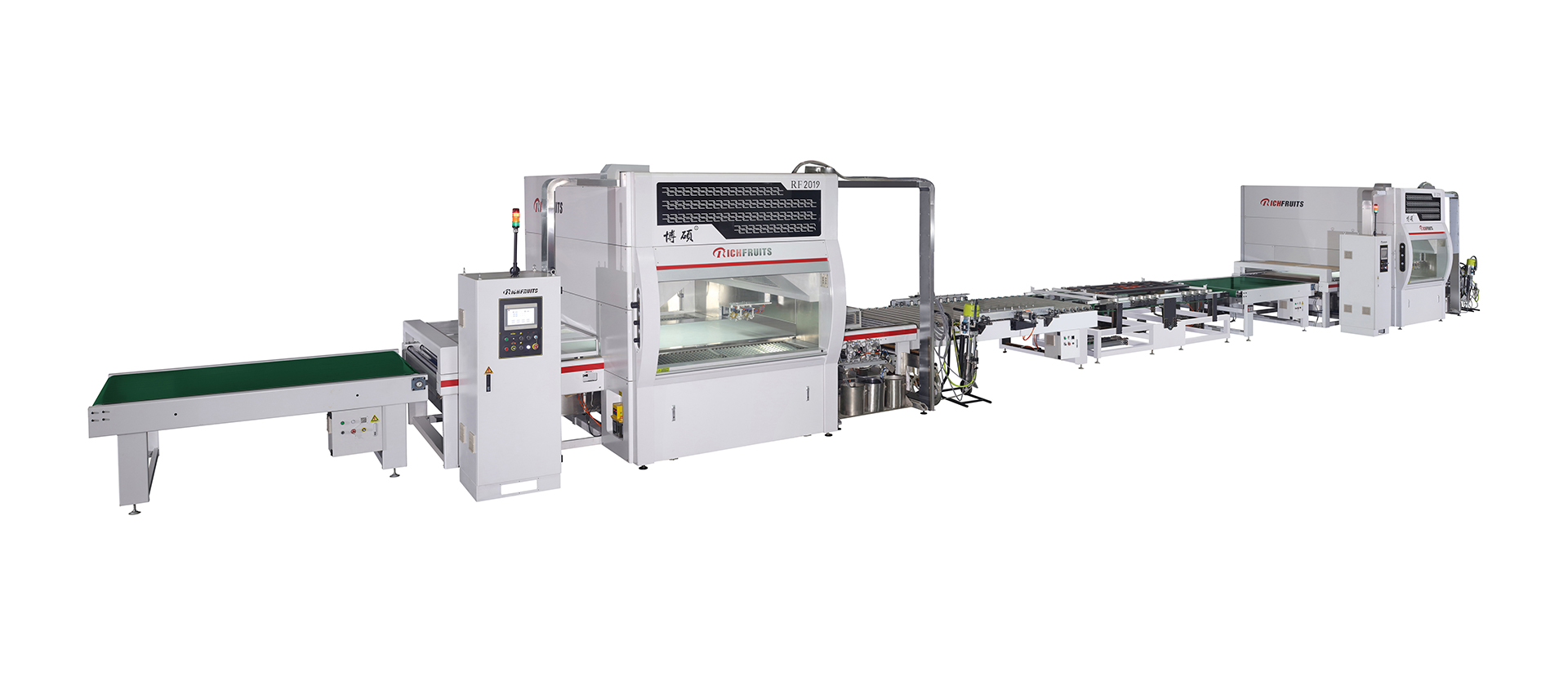

Conveyor+Spray coating machine+centering conveyor+automatic turnover machine+Conveyor+ Spray coating machine +conveyor

Ideal for high-quality and continuously auto finishing process of wooden doors

High speed production: 2 doors finished in 1 minute

Finishing effect: matte/semi-matte/gloss

Capacity:200-800pcs/8h
total power:55-260kw
gas consumption:2.5㎡/min
machine size:15-60m x 7.5m x 2.75m
bearing:500kg/㎡
instead of staff:20 people

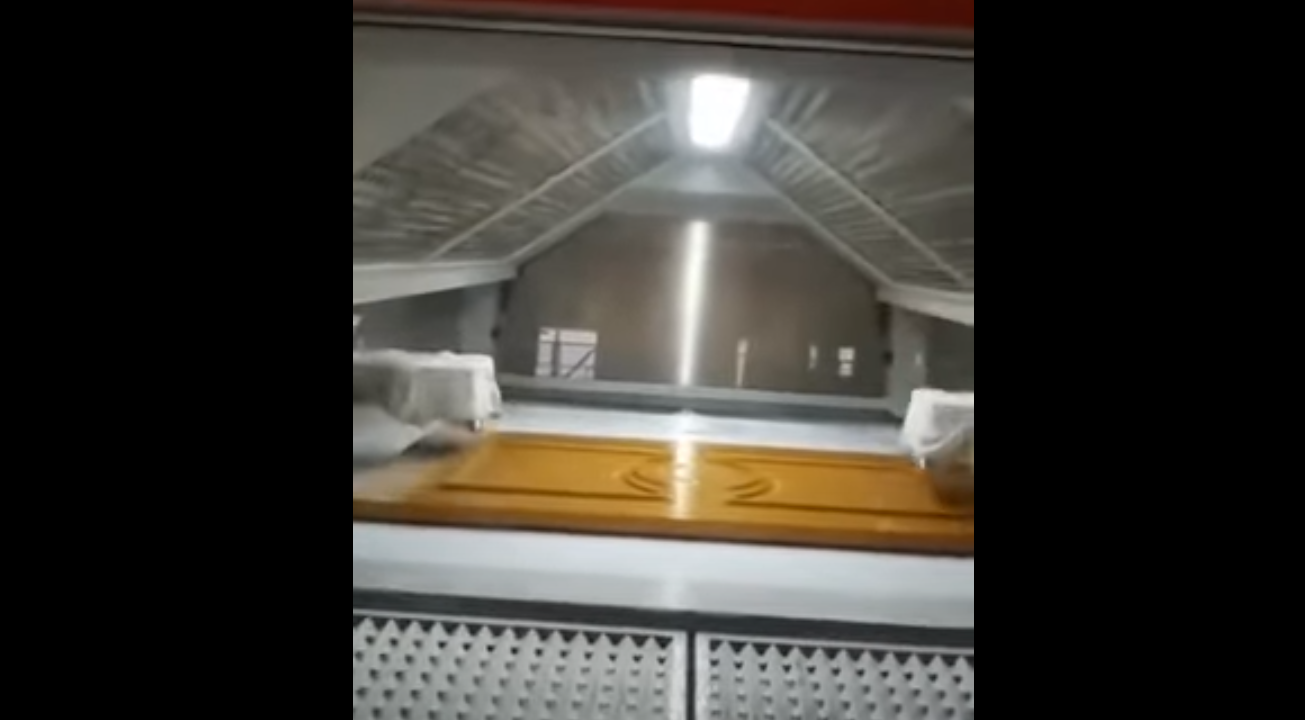

Production site video
Application
Wooden door
Performance characteristics

Set up two spraying machines and an automatic turner,accomplished spraying boon sides once time,PU,NC and water-based paint can be sprayed. The machines, are the highest automatism. The largest output. The most stable application equipment at present.

Technical parameters

Capacity

200-800pcs/8h

Total power

55-260kw

Gas consumption

6m³/min

Machine size

15-60m x 7.5m x 2.75m

Bearing

500kg/㎡

Instead of staff 20 people
