Roll coating machines，roll coater for sale

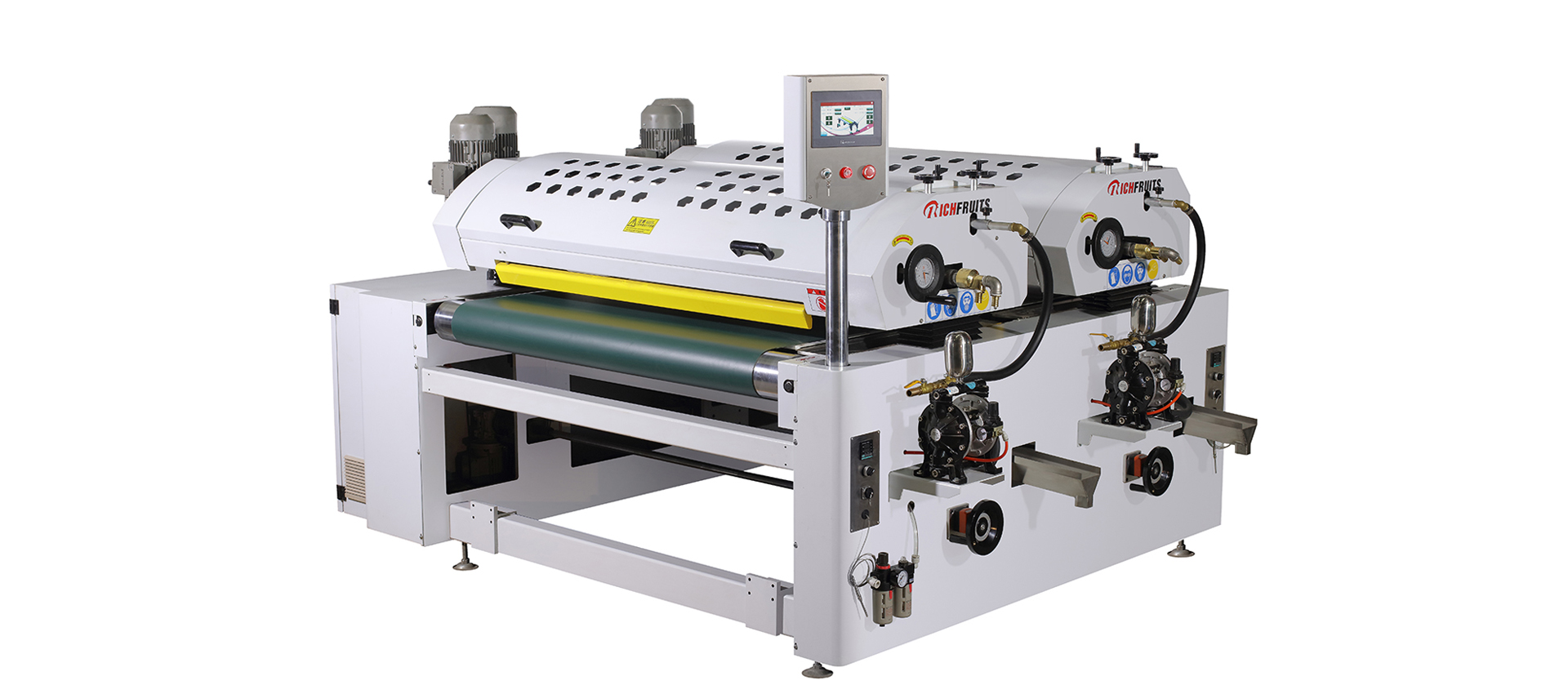

Roll coating machines

Suitable to apply primer, top coating or staining on MDF, HDF, solid wood, and wood-plastic composite etc
Exceptional high precision and flexibility achieved by independently adjustable speeds of the coating roller, doctor roller and conveyor each controlled by its own motor reducer, and frequency converter.
Dosing roller rotation direction can be clockwise or counter clockwise.
The robust casting design makes it easy to change the roller if needed
PLC, precision auto-elevator, separate electronic box are optional

Production site video

Application

Wooden door

Performance characteristics

Roller coaters are coating equipment used on flat workpieces. The coating lacquer is rolled onto the surface in a uniform manner with few coating lacquer wasted. With high feeding speed, roller coating machine can achieve high productivity, and can be paired with a brushing machine, coating dryer and a conveyor for automation.

Technical parameters

Model	MH7113x2/D / MH7113x2/DN
Processing speed	4-20m/min
Processing width	300-1250mm
Processing length	300-2500mm
Processing thickness	3-80mm
Total power	5kw
