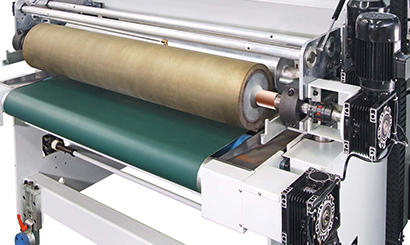

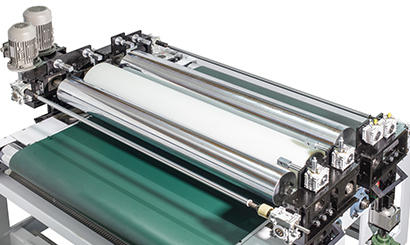

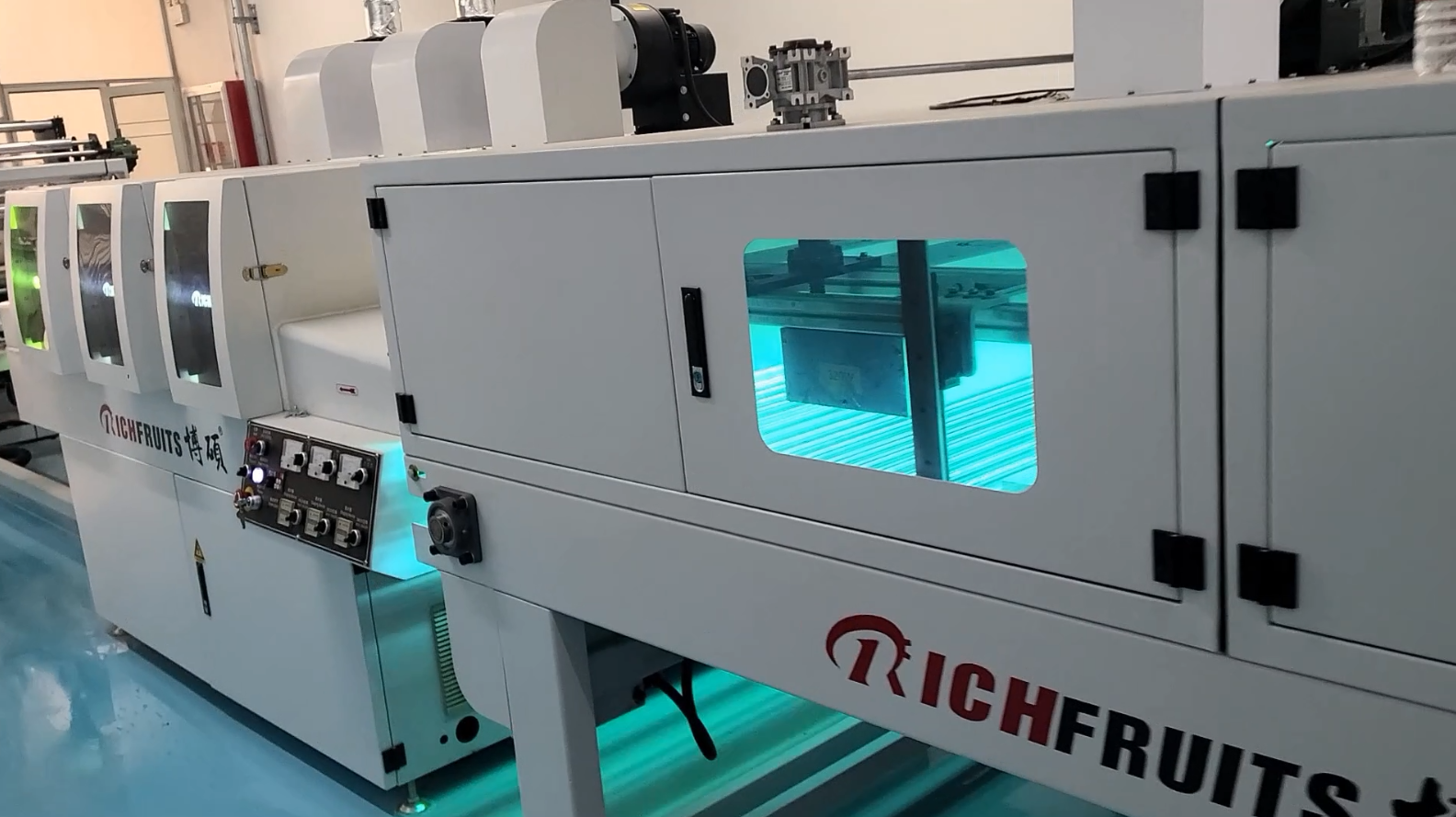

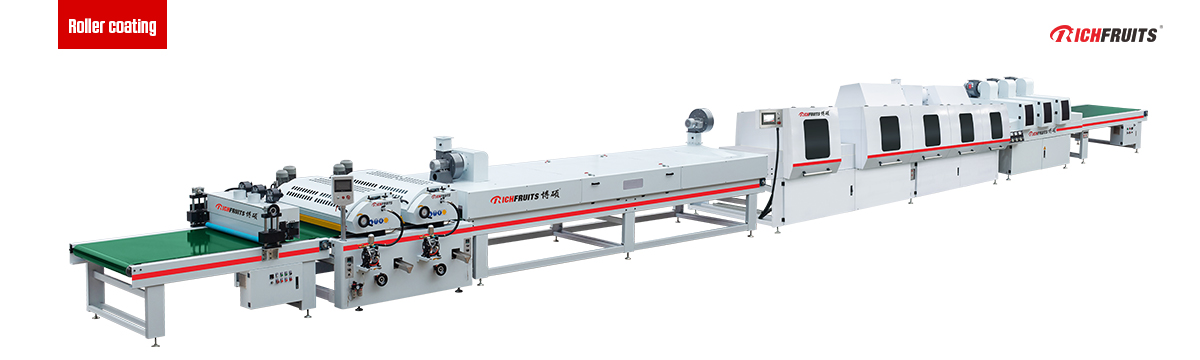

Layout: Dust cleaning- Roller coater- Leveling tunnel- Excimer oven- UV curing- Conveyor
A key factor for a satisfied finishing effect is paint curing. Different type of paints and different thickness of coating need variable conditions: temperatures, humidity, and time to achieve the final flat surface. The heating method of flash off leveling tunnel can be chosen from IR (infrared red) lamp, hot water or steam. The running speed of the tunnel shall be adjusted to allow the time to achieve the desired paint film leveling.

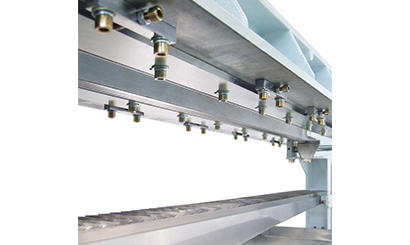

Additional Nitrogen required.
Coating width | 1300mm |
Working height/thickness | 2-90mm |
Feeding speed | 5-20m/min |
Line length | 27m |
Installed power | 117KW |
