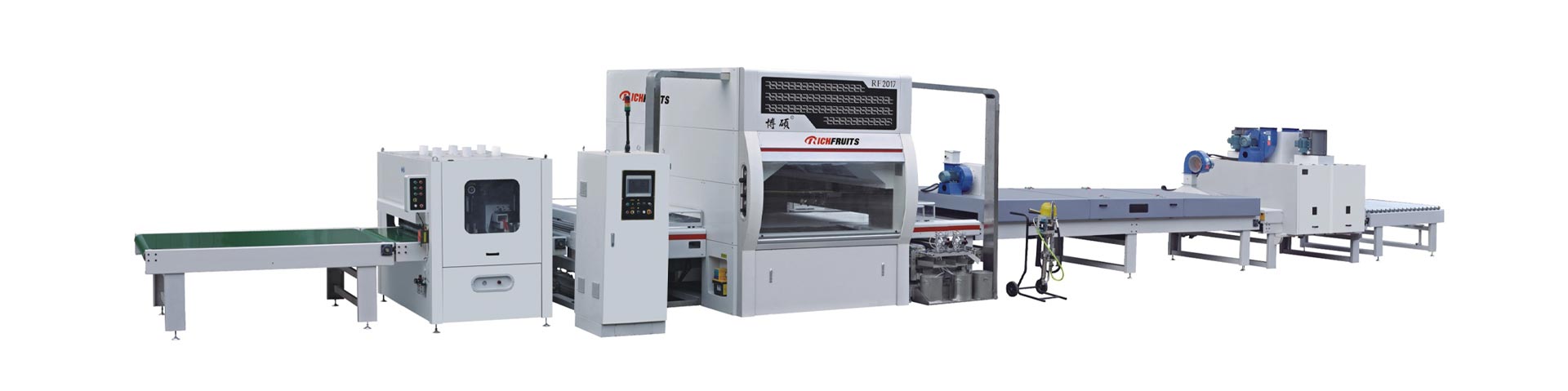

 03  Spray coating line for UV

  Conveyor-Dust cleaner-Automatic spraying machine(B1/B3/B5)- IR drying tunnel-UV curing-Conveyor

   Designed especially for UV paint and water-based UV paint,B1/B3/B5 spray coating machine are alternative plans for small/medium/large daily output

   Ideal for high-quality and continuously auto finishing process of workpiece with top surface and 4 edges coated and cured simultaneously

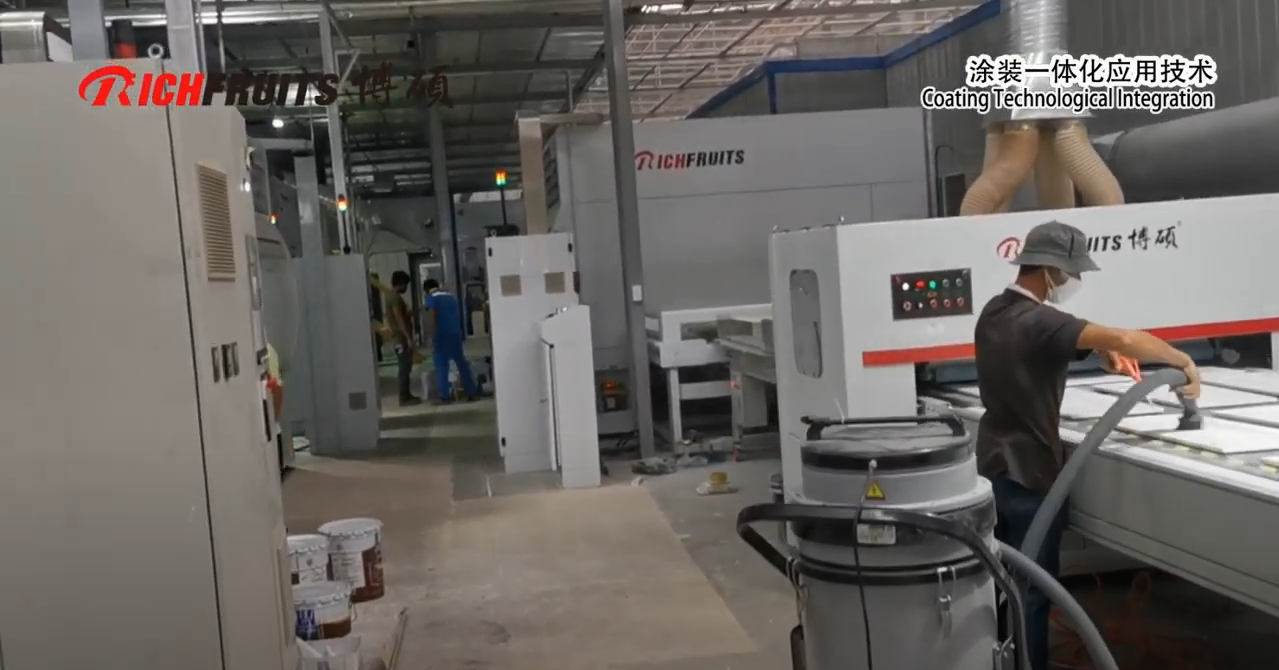

Production site video
Performance characteristics

      Richfruits offers different surface finishing solutions for different types of lacquers applied.  The 03 spraying coating line is especially suitable for  high-quality finishing surface on furniture, kitchen cabinet, interior fittings, or doors, covering the top and four sides simultaneously with UV paint and water-based UVpaint.

      The automatic spraying machine in 03 line is a very flexible and efficient machine: the high precision detection enables exact control of spraying guns for maximum paint saving. Each spraying arm, equipped with 4 guns and independent paint circuit, can automatically adjust heights to work compatibly with workpiece in different thickness. The quick color changing system enables flexible production. Also, the belt cleaning system and paint collecting unit are installed separately for easy maintenance.
     Spraying gun system, filtrations can be fully customized to achieve different finishing effect.

03 Spray coating line parameters

Type:

Spray painting line for coating paint/powder/glue

Finishing Process:

Spray coating

Finishing effect:

Matte, Semi-matte, High gloss

Brand Name:

RICHFRUITS

Model:

B3-03



Application:

Surface finishing on furniture such as custom kitchen cabinets, wardrobes, bathroom vanities, and building materials such as veneer decorative board, interior doors, toilet cover and more, glass, plastic, fiber cement board.

Production Capacity:

1000 doors/ 2000 m²per day

Certification:

ISO9001, CE, UL

Characteristic:

High productivity

Core Components:

Spraying gun, Pump, PLC, Motor, Conveyor System

Conveying Speed:

3-6m/min

Conveyor:

Carbon fiber belt conveyor system with optimal paint recovery, easy cleaning and maintenance

Spraying System:

Sames Kremlin

Spraying chamber:

Negative pressure inside chamber to collect paint mist

Service:

Video technical support, online support, field maintenance and repair service, spare parts ordering

Video Inspection:

Provided

Machinery Test Report:

Provided

Warranty:

One Year

Place of Origin:

Guangdong, China

Voltage:

Customers local voltage

Power:

80KW

Dimension(L*W*H):

40m x 5.4m x 2.75m

Application
Suitable for high-quality and high-volume continuous automatic coating on the surface as well as four sides of panel furniture, solid wood furniture, doors, kitchen/bathroom cabinet doors, interior walling panel,glass magnesium board and cement fiber board.

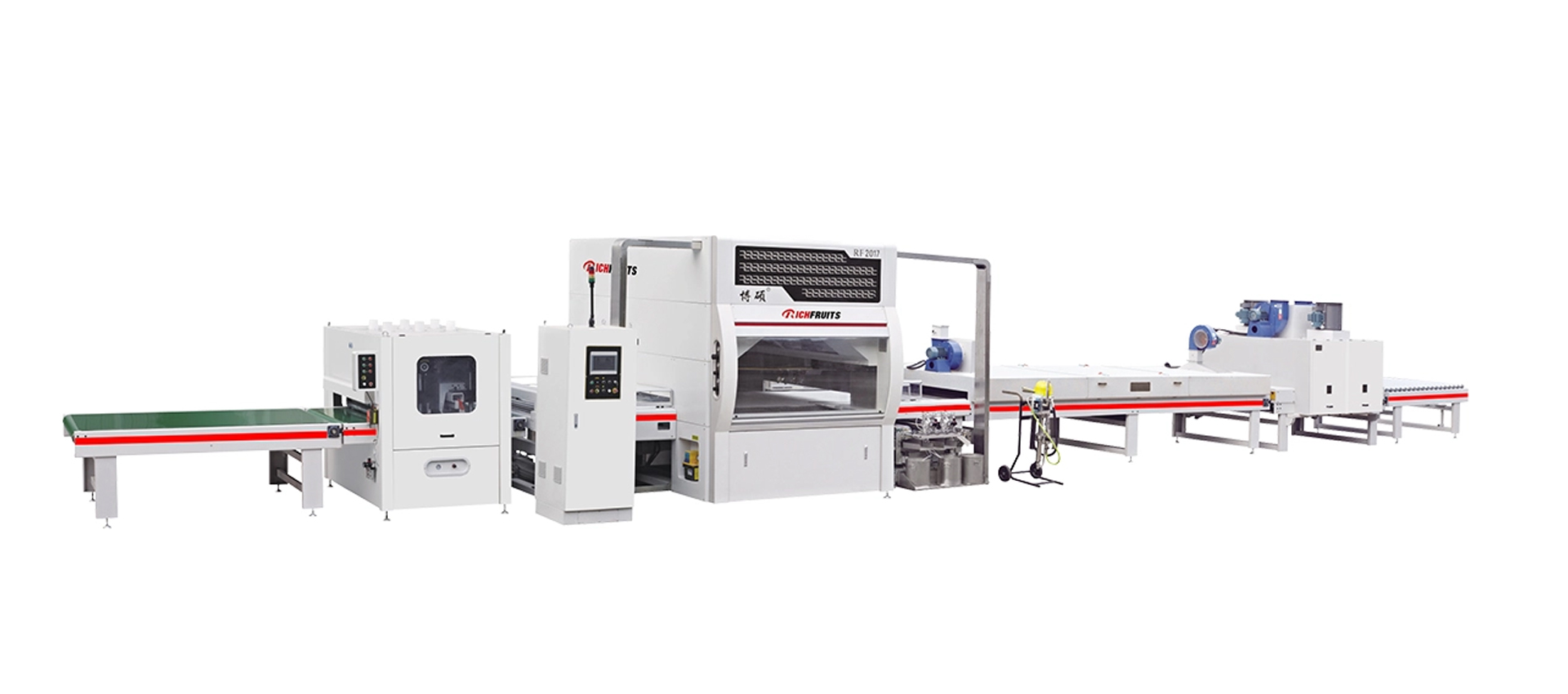

automatic spray painting line
Wooden door
Photo gallery
FAQ
Q:How does automatic spray coating line help me eliminate production costs?
A:The most important cost factor in the coating process is the paint consumption. Thanks to our patented Paint Recycling System, the recovering rate of paint reaches to as high as 99%. In addition, the Intelligent Coating System helps you monitor the paint consumption in real time.


Q:Which coating process is ideal for my products? Can you design a tailored solution for me?
A:Sure. Our team can help you find the right solution for you based on your production needs. Please click CONTACT US and leave your contact details so an English-speaking technician can reach you for further discussion.

Q:How do you practice quality control in your factory?
A:In order to guarantee consistent quality, we apply a rigorous Quality Management System in addition to ISO9001. From a screw to a complete assembled machine, every workpiece is tracked and tested separately by QC staff before packaging and shipping.

Q:How can I examine your coating quality?
A:The easiest way is to send your workpiece to us for testing. As we have a testing lab at our headquarter in Guangdong, we sincerely invite you to visit us in person with your workpiece, so we can arrange a testing for you to watch theou is also available by appointment.

Q:My factory is located in North America/Europe. Will your machines meet local safety standard?
A:Our machines are CE and CSA certified which means they meet Europe and North America safety standard. Right now Richfruits auto spraying machines, roller coating machines and production lines are running consistently in more than 30 countries including America, Mexico, Poland, Russia, Ukraine, India, Dubai, Brazil, Vietnam, Indonesia, and Korea. coating process and check the coating quality on your workpiece. In addition, to visit our production site nearby y
