07

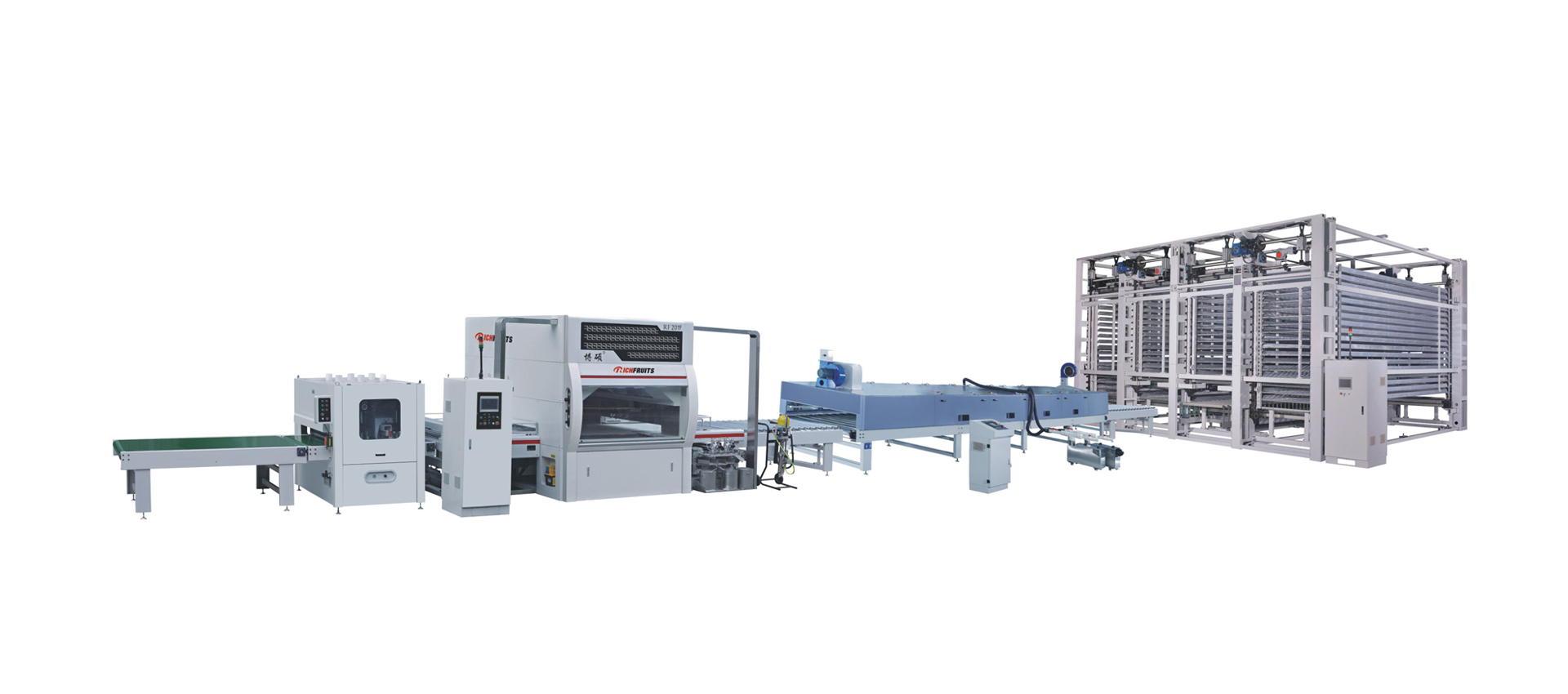

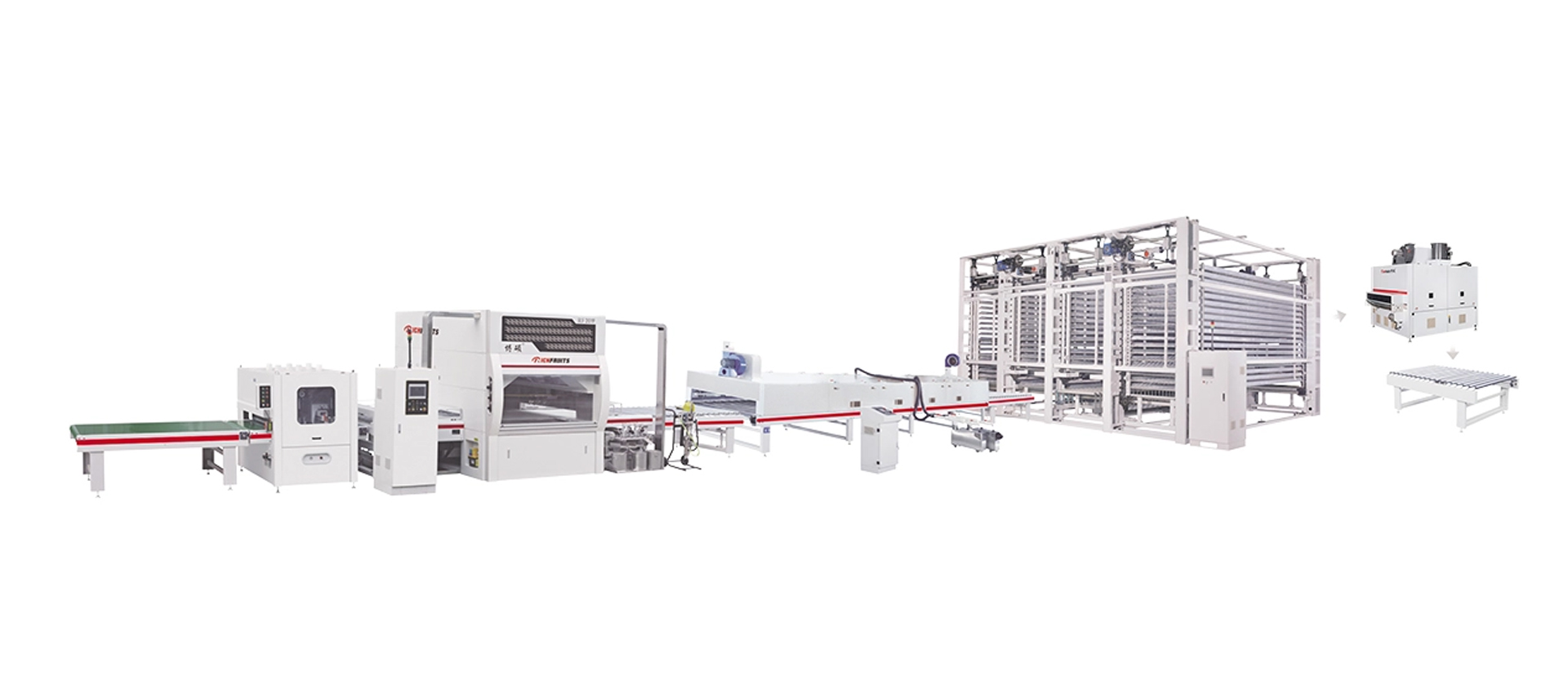

spraying production line
 Conveyor+Dust cleaner+Spray coating machine(B1/B3/B5)+cold infrared leveling dry          tunnel+Conveyor+vertical oven+UV dryer+conveyor

 B1/B3/B5 spray coating machine are alternative plans for small/medium/large output

 Ideal for high-quality and continuously auto finishing process of workpiece with top surface and 4 edges coated and cured simultaneously

 Suitable for PU/water-based/water-based UV paint

 Finishing effect: matte/semi-matte/gloss

 Capacity:1500㎡
 total power:143kw
 gas consumption:2.5㎡/min
 machine size:46m x9.5m x 5.4m
 bearing:800kg/㎡
 instead of staff:12 people

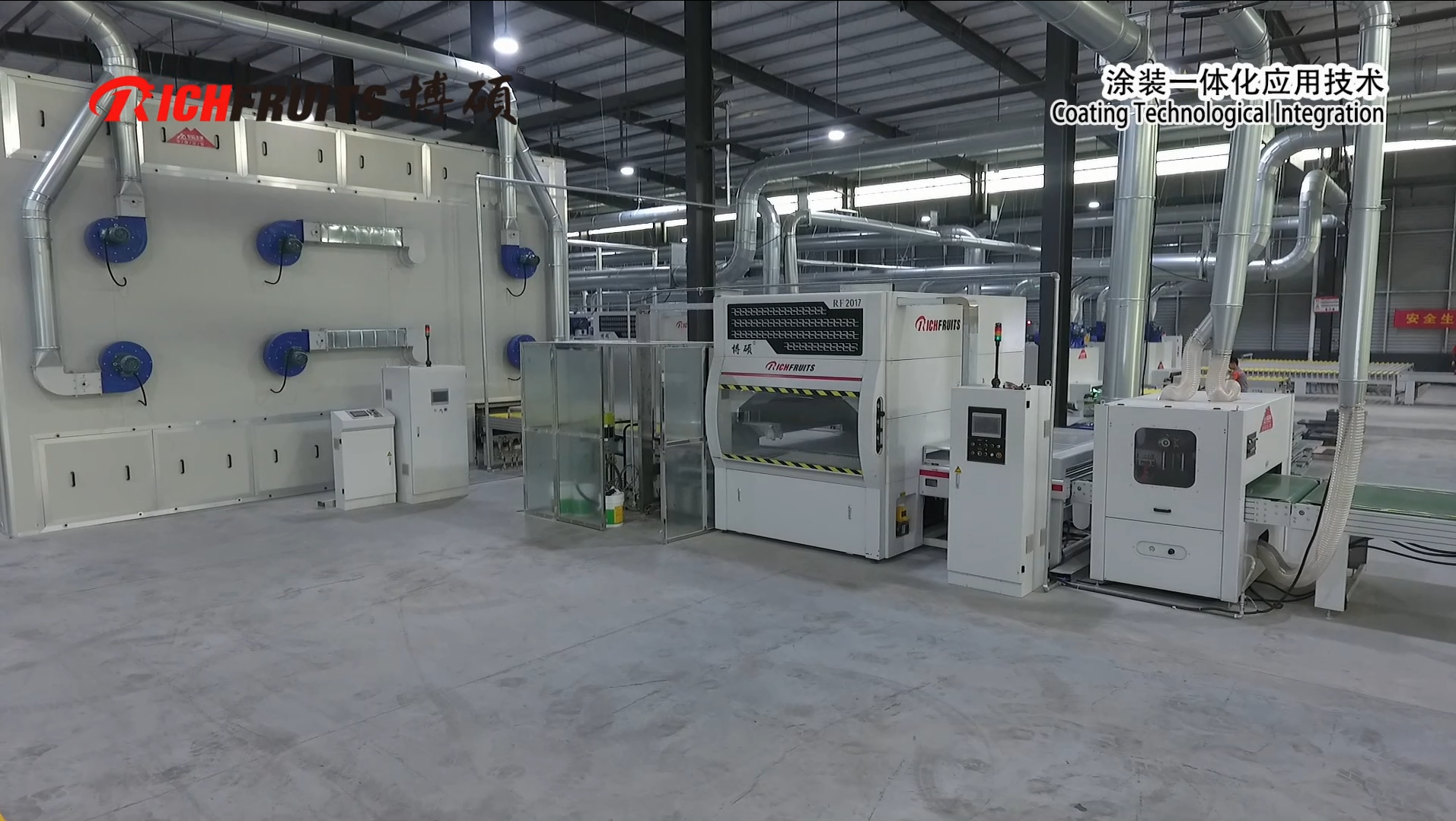

Production site video
Application
Wooden door
Performance characteristics

The most saving time and space spraying line configuration, three-dimensional drying room to the direction of space height, does not take up the length of the field,take into account the best leveling performance of paint. For a long time dry paint, water come out to dry state, you can package.

Technical parameters

Capacity

1500㎡

Total power

143kw

Gas consumption

2.5m³/min

Machine size

46m x 9.5m x 5.4m

Bearing

800kg/㎡

Instead of staff 12 people
Photo gallery
