Tips about how to maintain an automatic Paint Spraying Machine

Richfruits automatic spraying machine is installed with Kremlin spraying systems which required regular maintenance. The routine is quite easy and the machine could perfectly run for several decades if proper maintenance is conducted. Check out the following maintenance tips:

Cleaning and maintenance routine of Kremlin Pump:

Preparation:

∙ clean wiping cloth

∙ KREMLIN pump filter exclusive wrench

∙ 5mm 699 wrenches

∙ Pneumatic lubricating oil

∙ a thin wooden stick

∙ small brush

∙ KREMLIN exclusive lubricant

∙ protective gloves

∙ paint thinner

Maintenance cycle: the filter of the pump should be removed for maintenance every 3 days; the air motor should be removed

 for maintenance every 30 days.

Cleaning and maintenance routine of automatic paint spray gun:

Preparation:

∙ clean white cloth,

∙ exclusive wrench for KREMLIN spray gun

∙ 4mm 699 wrench

∙ flat head screwdriver

∙ small wooden sticks

∙ exclusive lubricant for Kremlin spray gun

∙ small brush

∙ protective gloves

∙ paint thinner

Maintenance cycle: the air cap and nozzle of the spray gun should be removed for cleaning and maintenance every day; the

spray gun shall be removed for maintenance every 7 days.

Richfruits automatic spraying machine is suitable for the surface finishing of solid wood furniture, solid wood composite doors,

 American cabinets, panel furnitures, plywood and so on. High-quality finishing effects are provided with PU, PU, AC, NC and

water-based paint, etc, while saving energy, protecting environmental, and reduce labor.

Users can experience significant product quality improvement and production efficiency.

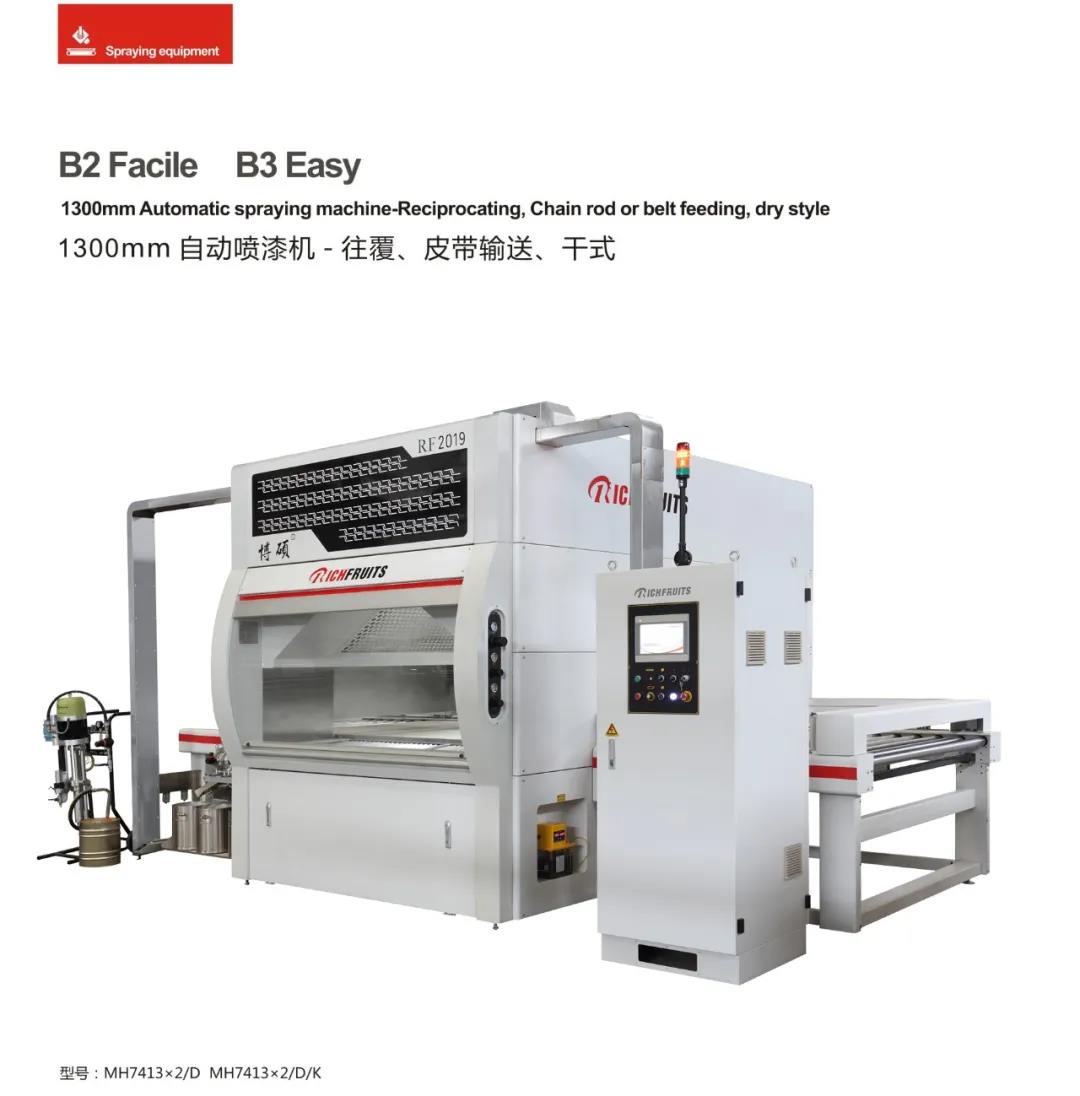

Spraying machine configuration:

∙ self-cleaning belt conveyor system

∙ automatic scanning detection system

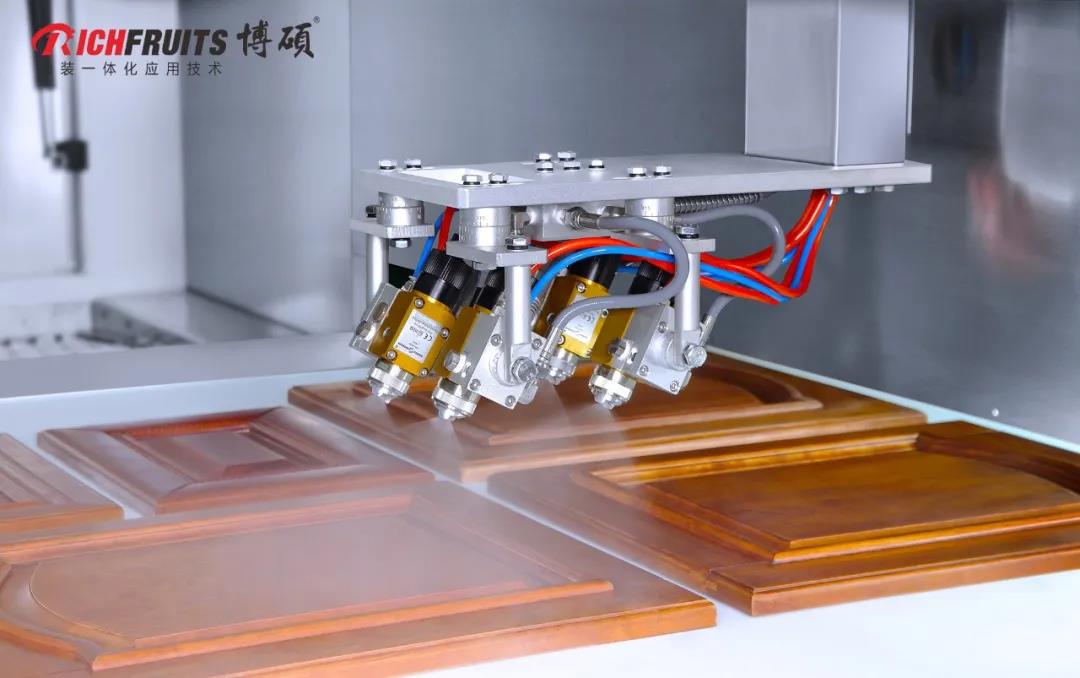

∙ Kremlin mixed air supply paint spraying system

∙ inlet and outlet airflow management system

∙ constant temperature and constant humidity drying system

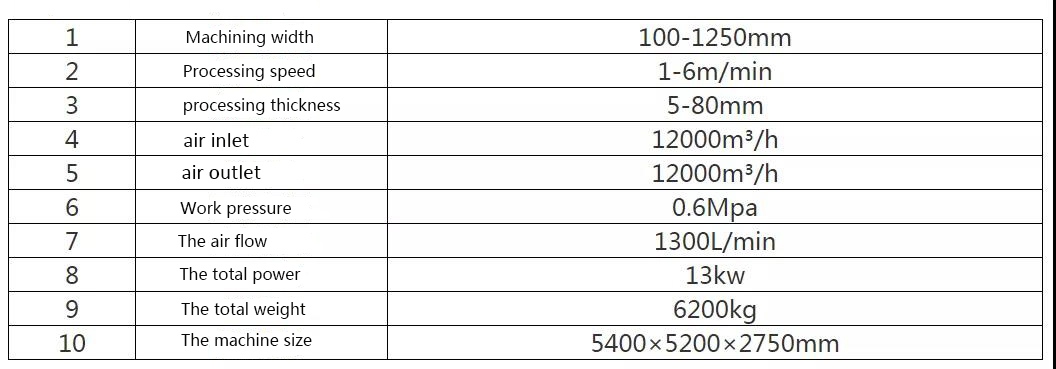

Technical parameters:

Data of the Automatic Paint Spraying equipment

a. Utilization rate of paint:

    Solvent-free UV paint: more than 95%;

    General paint: more than 80%;

b. Paint belt recovery rate:

    Immediate recovery, more than 98%;

c. The amount of thinner for cleaning the belt:

    UV paint: 2-5kg/8h

    PU paint: 20-40kg/8h

   Water-based paint: 20-60kg/8h

d. Structure of paint recycling and cleaning system:

    Recovery roller + cleaning roller + two sets of scrapers;

e. Annual consumables cost of automatic paint spraying machine:

    UV paint: 800 USD

    PU paint: 5000 USD

   Water-based paint: 4500 USD

f. Inlet and outlet ratio:

    Negative pressure

Inlet wind: Outlet wind=1: 1.2

 Request

Five characteristics of Automatic Paint Spraying equipment

❶Perfect painting effect-close to the painting effect of PU paint;

❷Excellent paint mist control-spraying without paint mist, the utilization rate of paint reaches more than 95%;

❸Efficient paint recycling-the comprehensive utilization rate of UV paint can reach 90%, and water-based paint can reach 85%;

❹Simple equipment maintenance-UV paint is maintenance-free and does not require solvents to clean the belt, which can

save 300,000/year maintenance costs; for AC, PU, and water-based paint spraying, the cost of consumables is only 80 yuan/day,

and the cleaning and maintenance time is only 10 Minutes/day!

Spray effect exhibition
