Uneven roller coating thickness may appear as a heavier film on one side, thin areas in the center, fixed streaks, repeating bands, or a gradual change during production. Richfruits’ flat-panel range includes single-, double-, and triple-roller coaters for wood panels and other flat workpieces, but uniform output still depends on the coating, panel, roller condition, gap, pressure, speed, and downstream curing working together.
The fastest way to make troubleshooting slower is to adjust viscosity, line speed, and roller gap at the same time. A better method is to identify the defect pattern, connect it to the most likely cause, change one variable, and verify the result with repeatable measurements.
Identify where and when the thickness variation occurs before changing the machine. Compare the operating side, center, and drive side, as well as the leading, middle, and trailing sections. Determine whether the variation is already present in the wet film or appears only after drying or curing. Then check the coating and panel, inspect the roller coater, correct one likely cause at a time, and verify several consecutive panels.
Mark the panel orientation and divide it into fixed inspection positions: operating side, center, and drive side across the width; leading edge, middle, and trailing edge along the feed direction.
A consistent left-to-right difference often points to roller parallelism, an unequal gap, uneven loading, panel tracking, or uneven coating supply. A center area that is repeatedly heavier or lighter may be related to panel bow, roller deflection, roller wear, or insufficient support.
Front-to-back variation suggests a different problem. A heavy leading edge can develop as the panel enters the contact zone, while a light trailing edge may result from changing contact as it exits. Warped panels, unstable feeding, or inconsistent spacing can make these end effects worse.
Use surface appearance to locate the pattern, but confirm it with measurements. Gloss and color differences do not always represent the true film-build difference.
A fixed streak stays in the same lateral position on every panel. This directs attention to a local cause such as dried coating, a scratch or worn strip, contamination in the coating path, or restricted material flow. These roll coater contamination issues should be eliminated before changing the main settings.
Repeating thick and thin bands usually indicate a rotating source. Roller runout, a damaged point on the roller circumference, bearing play, drive pulsation, or vibration may create a regular pattern in the feed direction. Compare the distance between bands with the roller circumference or drive cycle.
Process drift develops gradually. If early panels are acceptable but later panels become heavier or lighter, check coating temperature, evaporation, viscosity, tank level, circulation, settling, foam, filter condition, and speed stability as the machine warms up.
Inspect the panel immediately after coating and again after the normal leveling, drying, or curing stage.
If the wet film is uneven, focus on coating supply, panel condition, rollers, gap, pressure, and speed. If the wet film appears uniform but the finished film does not, investigate panel absorbency, sanding, sealer coverage, airflow, temperature, UV exposure, and cure response.
Wood panels can absorb coating differently even when the applied wet film is similar. MDF edges, exposed fibers, repaired areas, density variation, or uneven sanding may change the final film build. A roller adjustment will not solve a difference that appears only during absorption or curing.
Confirm that the coating entering the coater is stable. Check the batch, mixing, filtration, circulation, tank level, temperature, and any approved dilution. Take samples consistently, because material from a stagnant area may not represent the coating reaching the roller.
Viscosity affects pickup, metering, leveling, and transfer, but no single value suits every material and roller setup. Warmer coating may flow differently from coating at startup. Water or solvent loss can also change viscosity during a long run, while pigments and fillers may settle if circulation is weak.
Look for foam, skins, gel particles, or partially cured residue. Also check whether pumps or circulation lines pulse and whether material reaches the full working width evenly.
Measure panel thickness at several points and check for bow, cup, twist, and damaged edges. Thickness variation changes the effective contact and pressure, especially when the working gap is narrow.
Sanding must be consistent across the width. A rough or open area may retain more coating, while a polished or contaminated area may receive less. Check abrasive wear, sanding pressure, dust extraction, and the panel immediately before it enters the coater.
Dust, filler residue, oil, release agents, fingerprints, and uneven sealer can all affect transfer or absorption. Use panels from the same batch during trials so that material variation does not hide the effect of a machine adjustment.
Stop the machine safely and inspect the complete roller width under good lighting. Look for dried coating, polished bands, scratches, cuts, dents, swelling, hardened areas, and embedded particles. Rotate the roller slowly to examine the full circumference.

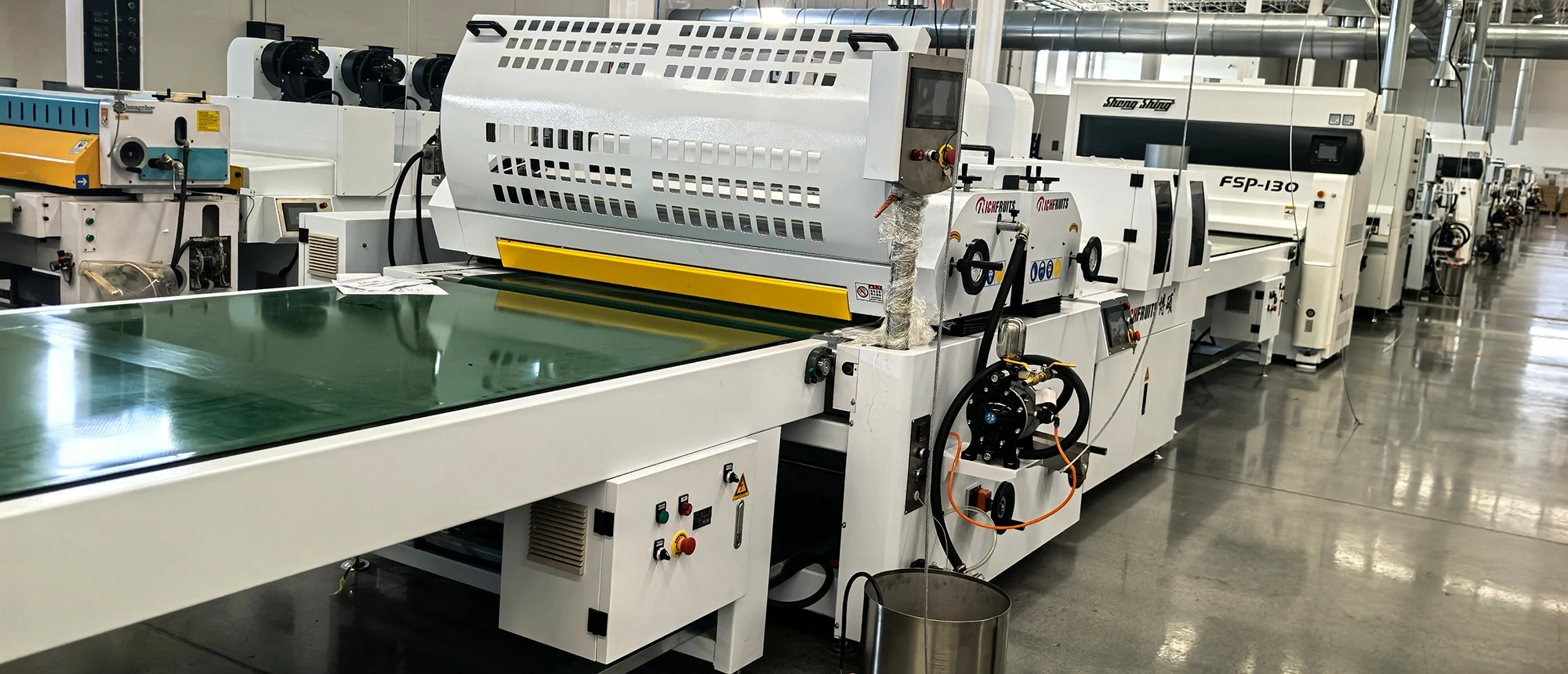

Richfruits roller coater machine
Clean it with a method compatible with the coating and roller covering. Avoid sharp tools or aggressive solvents. Inspect the coating tray, return path, guards, and nearby transfer points as well, because residue elsewhere can quickly contaminate a cleaned roller.
The Richfruits double roller coater features a robust cast structure that allows the roller to be changed when necessary. If a streak remains in the same position after cleaning, the roller should be checked for local wear, glazing, surface hardening or damage.
A gap setting is useful only when it is uniform across the working width. If one side is consistently thicker, compare the actual gap and loading on both sides. Matching dial or display values do not always prove that the rollers are parallel; backlash, worn adjustment parts, contamination at a stop, or uneven support can create a real difference.
Excessive pressure can deform a rubber-covered roller, widen the contact area, and squeeze coating unevenly. Insufficient pressure may reduce transfer or fail to follow small panel variations.
A center-heavy or center-light pattern may come from panel bow, roller deflection, uneven roller geometry, or conveyor support. Confirm these conditions before compensating with more pressure.
For repeating bands, inspect roller runout, bearings, couplings, belts, chains, gears, and other drive components. Check for noise, heat, play, or abnormal vibration.
Compare commanded speed with actual operation. Unstable roller or conveyor speed changes the relationship between coating pickup, metering, transfer, and panel movement. Pulsation can also come from the coating pump or circulation system.
Observe whether band spacing changes with line speed. If the pattern remains tied to one roller rotation, concentrate on that roller, its bearings, and its drive.
Before making a correction, record the coating batch, temperature, viscosity reading, tank level, panel type, thickness, sanding condition, roller identification, gap, pressure, roller speed, conveyor speed, and drying or curing conditions. Photograph the defect and mark its position.
Run several baseline panels under the same conditions when practical. This confirms whether the defect is repeatable and gives you a condition to return to if an adjustment creates a new problem.
Correct the least disruptive, most clearly supported cause first. Clean visible contamination, restore circulation, stabilize temperature and tank level, verify filtration, and use flat panels with consistent preparation.
When troubleshooting a roller coating line, do not use a process adjustment to hide a maintenance or material problem. Increasing pressure may temporarily reduce a streak caused by contamination or roller wear, but it can create new thickness variation and accelerate roller wear.
Choose the next action from the defect pattern:
Fixed streak: clean and inspect the roller and coating path.
Side-to-side difference: check parallelism, gap, pressure, tracking, and support.
Repeating bands: inspect runout, bearings, transmission, vibration, and speed.
Gradual drift: stabilize viscosity, temperature, level, circulation, and production speed.
Change one variable by a small documented amount and allow the process to stabilize. Use the same panel batch and measurement positions. Confirm an improvement with another trial before making a second change.
Do not adjust viscosity, gap, pressure, and speed together. Even when the final recipe needs more than one correction, each effect should first be understood separately.
Use a repeatable grid: operating side, center, and drive side at the leading, middle, and trailing sections. Mark the positions or use a template so that every panel is checked in the same way.
Keep measurement conditions consistent. Wet-film readings should be taken at the same time after coating. Finished-film readings should follow the same leveling, drying, and curing cycle. Use the same method and instrument throughout the trial.
The correct tool, allowable tolerance, and sampling frequency depend on the coating system, substrate, finish specification, and factory quality plan. They should be defined for the specific application.
Do not approve a correction from the first panel after an adjustment. Coating circulation, roller wetting, temperature, or speed may still be stabilizing. Once normal production conditions are reached, inspect several consecutive panels at normal speed and spacing.
Compare both average thickness and the range across each panel. A correct average does not prove that the process is uniform. Where possible, repeat the check later in the run to confirm that the problem does not return as temperature or material condition changes.
Record the defect pattern, confirmed cause, action taken, parameter before and after the change, measurement results, photographs, and the number of panels verified. Link the record to the coating batch, panel batch, roller set, and production recipe.
For Richfruits single-, double-, and triple-roller coaters, this history can help distinguish a recurring material issue from a roller-specific or recipe-specific problem. It also supports preventive cleaning, roller inspection, bearing checks, supply-system maintenance, panel inspection, and operator training.
Update the standard procedure only after the result has been repeated. The record should explain not only which setting worked, but also which defect it corrected and which conditions must remain stable.
Uneven coating thickness should be corrected by identifying its pattern and verifying one adjustment at a time, rather than changing several production parameters simultaneously. Map the variation across and along the panel, determine whether it begins in the wet film or develops downstream, and then check the coating, panel, rollers, gap, pressure, drive, and speed in a logical order. A documented baseline and repeatable measurements turn troubleshooting from trial and error into a controlled process.
Common causes include unstable viscosity or temperature, uneven material supply, panel thickness or flatness variation, inconsistent sanding or absorbency, roller contamination or wear, an unequal gap, incorrect pressure, runout, bearing problems, vibration, and unstable speed.
A consistent side-to-side difference is often related to rollers that are not parallel, unequal gap or pressure, uneven panel support, panel tracking, or coating supply concentrated on one side. Confirm the actual mechanical condition rather than relying only on display values.
Yes. Viscosity affects pickup, metering, transfer, and leveling. However, one fixed streak is more likely to be local contamination or damage. Check temperature, mixing, circulation, evaporation, and tank level before changing dilution.
The gap affects metering and contact with the panel. A smaller or uneven gap can increase pressure and change transfer, while a larger gap may reduce control. The result also depends on roller hardness, coating properties, panel thickness, speed, and roller configuration.
Measure fixed positions on the operating side, center, and drive side at the leading, middle, and trailing sections. Use the same method and the same wet- or dry-film condition for every trial panel. The instrument, tolerance, and inspection frequency should follow the application specification.
