1300mm

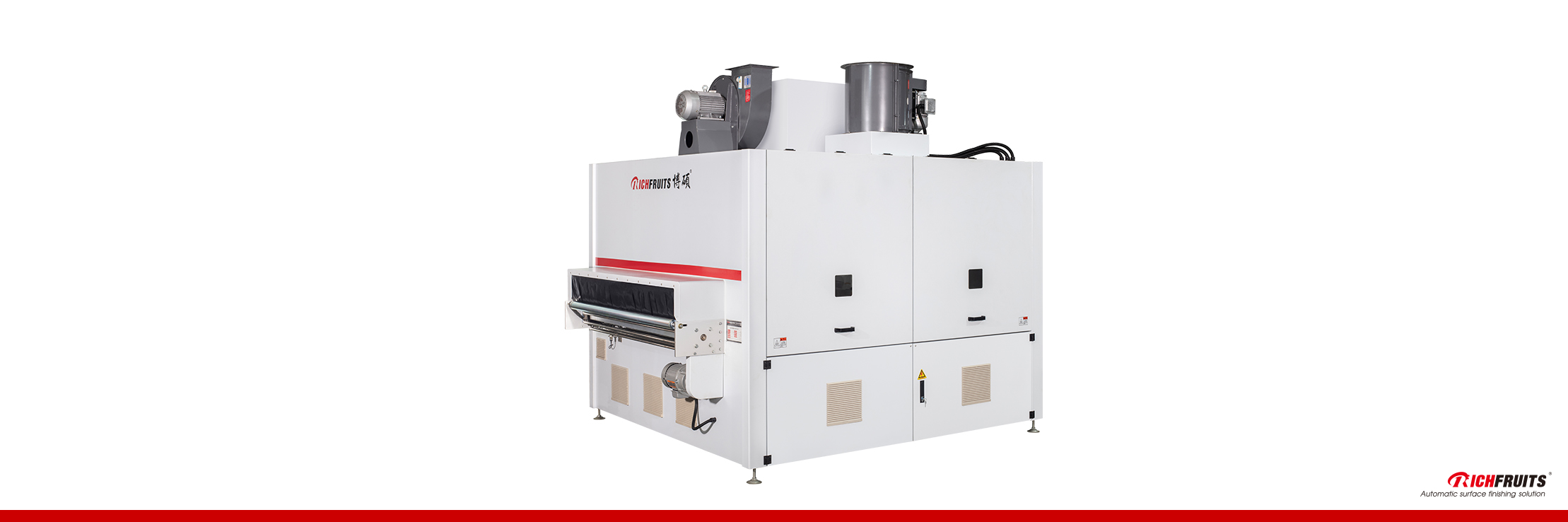

UV Curing machine -six lamps-vertical

Overhead UV lamp box with precise temperature control display
High-energy mixed metal lamps for efficient UV curing
Focused aluminum alloy lamp shades enhance light utilization
Performance characteristics

It is suitable for door frames, door profiles, picture frames, curtain frames, tongue and groove boards, door and window accessories, furniture accessories, mouldings, flooring and other strip & special-shaped workpieces after six-side UV spraying and paint curing. It features overhead UV lamp box structure, fitted with large exhaust fans with temperature control and digital display. Equipped with high-energy mixed metal lamps, the reflector adopts focused aluminum alloy lamp shades.

Technical parameters

Model

MF6113×6/L/DZ

Processing speed

2-10m/min

Processing width

1300mm
Processing thickness

5-80mm


Machine size 3m x 2.2m x 2.46m
Total power 65kw
Production site video
Application
microwave drying equipment
Wooden door
Photo gallery
