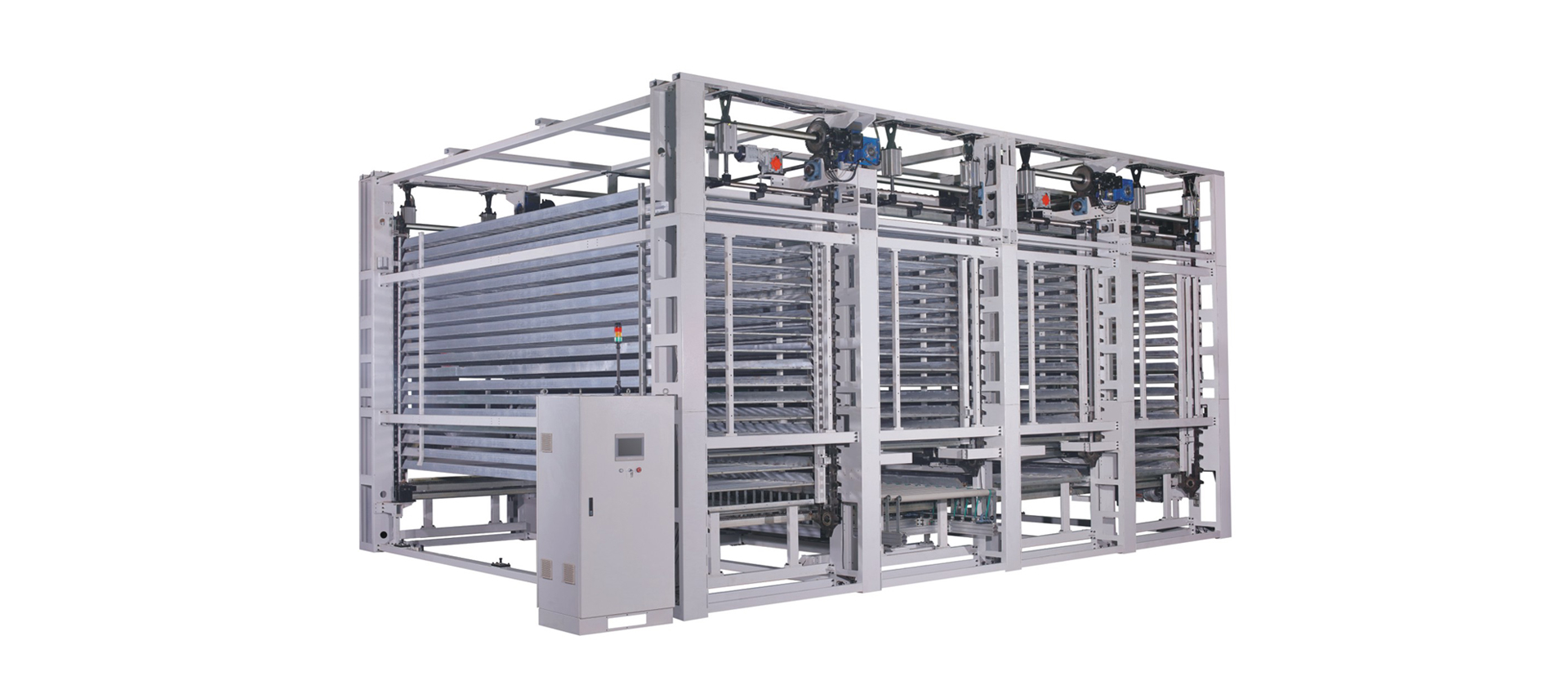

Suitable for standardized solid wood or wood composite furniture, cabinet, decorative board, fiber cement, glass magnesium board etc. which need extra-long drying period (30-120 min) without pause production or any intervention operation.
Also available in configurations with 32 or 68 layers when higher productivity is required.
Automatic heating system ensures the smoothness of finishing effect
Heating method: electric/air energy/steam/conduction oil.
Suitable for uniform specification solid wood furniture,solid wood composite door,America-type cabinet,suite furniture,bathroom cabinet,display case,artware,decorative board,calcium silicate board,glass magnesium board etc.which will take a long time(30-120min) to dry off after has been automatic sprayed paint,realized the continuous drying on line.it takes the superior performance of levelling property,gliding property and paint film drying to dry off for a long time.
Model | MF6213x2/35x36/LT / MF6213x4/35x68/LT / MF6213x2/55x36/LT / MF6213x2/55x36/LT/D / MF6213x4/55x68/LT / MF6213x4/55x68/LT/D / MF6213x4/55x88/LT / MF6213x4/55xl20/LT | |
Processing speed | 1-6m/min | 1-6m/min |
Processing width | 1250mm | 1250mm |
Processing thickness | 50-80mm | 50-80mm |
Number of layers | 36 layers | 68 layers |
Heating consumption | 20 thousand Kcal | 35 thousand Kcal |
Compressed air | 0.2 m³/min | 0.4 m³/min |
Machine size | 6.7m x 4.4m x 5.4m | 6.72m x 8.3m x 5.3m |
Total power | 21kw | 40kw |
