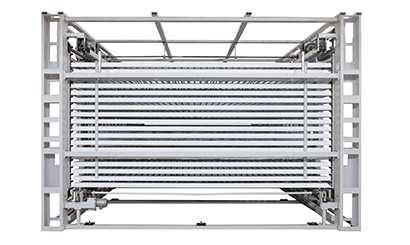

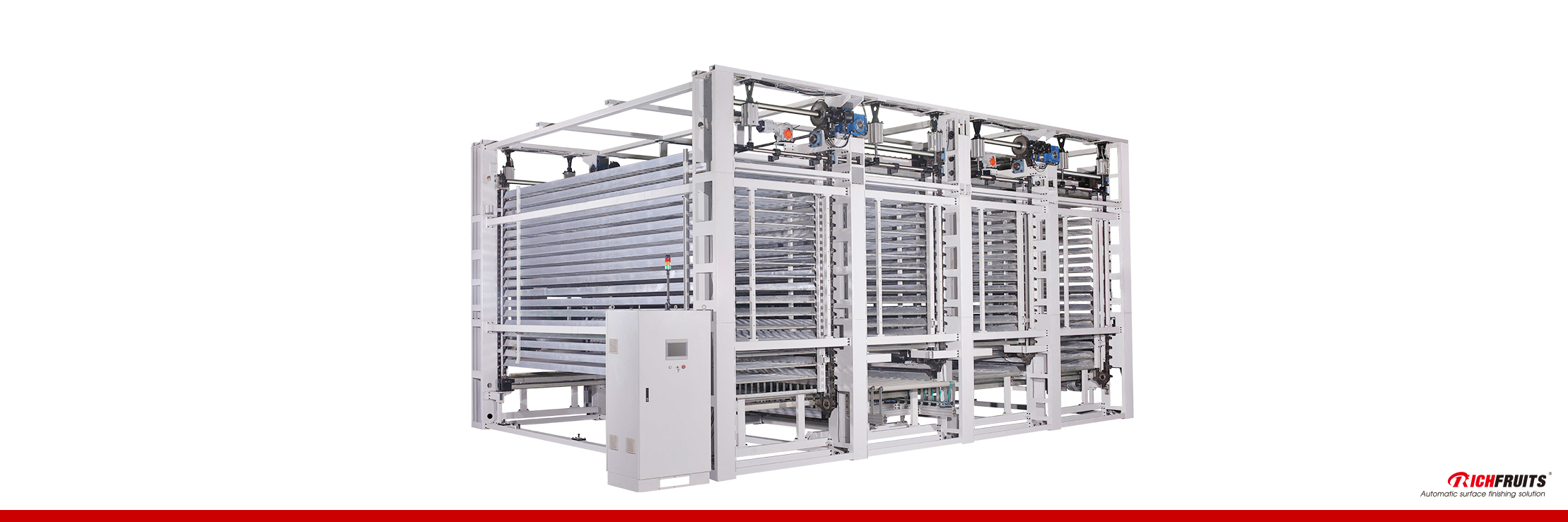

Vertical drying oven

 Suitable for standardized solid wood or wood composite furniture, cabinet, decorative board, fiber cement, glass magnesium board etc. which need extra-long drying period (30-120 min) without pause production or any intervention operation.
 Also available in configurations with 68 or 88 layers when higher productivity is required.

 Automatic heating system ensures the smoothness of finishing effect

 Heating method: electric/air energy/steam/conduction oil.

Performance characteristics

Suitable for standard solid wood furniture, solid wood composite doors, American-style cabinets, suite furniture, bathroom cabinets, display cases, artware, decorative boards, calcium silicate boards, glass magnesium boards and more. Workpieces after automatic spraying need 30–120 minutes drying time and realize continuous online drying. It offers excellent leveling, sliding performance and paint film drying effect for long-time drying treatment.

Technical parameters

Model

MF6213x4/55x88/LT

Processing speed

3-6m/min

Processing width

1250mm
Processing thickness

50-80mm


Number of layers 88 layers
Heating consumption 40 thousand Kcal
Compressed air 0.6 m³/min
Machine size 6.57m x 8.180m x 5.27m
Total power 40kw
Production site video
Application
vertical conveyor oven
Wooden door
