Views: 0 Author: Site Editor Publish Time: 2026-09-25 Origin: Site
For water-based wood finishing, neither application method is automatically better. Water-based roll coating is usually the stronger starting point when a stable, flat face needs a controlled coating layer. Water-based spray coating is usually the stronger starting point when the finish must reach edges, profiles, curves, or several visible faces.
The important point is that water-based coating does not make this a simple machine comparison. The coating still has to be applied to the intended surfaces, level to the required appearance, move through drying, and remain protected during handling. The better method is the one that lets the actual water-based coating complete that path on the actual product.
Roll coating and spray coating apply liquid material in different ways. A roller transfers a metered coating film through contact with the workpiece. A spray system applies coating to the surface through an atomized spray pattern. That basic difference affects where each method can reach and what the workpiece must do during application.
Water-based coating makes the stages after application especially important to the comparison. Richfruits’ current roller-coating and water-based spray-line pages both place application inside a larger process that includes surface preparation, leveling, drying or curing, conveying, and handling. A factory should therefore avoid choosing a method based only on whether the coating can enter a roller coater or spray machine.
Instead, start with four questions:
Which surfaces must receive the water-based coating?
Does the workpiece provide stable roller contact, or does the coating need to follow a profile or edge?
What surface appearance must be achieved after the wet coating has leveled and dried?
Can the selected application method be connected to the required drying and handling flow?
The answers put water-based roll coating and water-based spray coating in their proper roles. They are two ways to build a complete finishing process, not two labels for the same equipment decision.
Water-based roll coating is most relevant when the central coating task is a controlled layer on a flat, stable face. Flat doors, cabinet boards, flooring, veneered panels, and other industrial sheets may be suitable candidates when they can maintain predictable contact with the application roll.
For water-based finishes, the trial should examine the full path of that applied layer. The question is not only whether the roller transfers coating to the panel. The factory also needs to see whether the coating can level as intended, pass through the available drying stage, and arrive at the next sanding, coating, or handling step in an acceptable condition.
This is where workpiece consistency matters. A bowed panel, a heavily profiled surface, or significant thickness variation can change roller contact from one area to another. The same water-based coating may then receive different transfer conditions across the workpiece. Increasing a setting is not a general answer, because the underlying issue may be panel contact or surface preparation rather than the amount of coating supplied to the roll.
Water-based roll coating should therefore be evaluated as a flat-face process. It is a useful route to test when the product needs a repeatable layer on its main surface and the panel condition can be controlled. It is less convincing as the first route when the required finish must wrap around complex geometry or reach recessed details.
Once a representative test confirms that process fit, the available roll coating line for flat panel finishing options can be considered in the context of the full line rather than as an isolated coating unit.
Water-based spray coating is most relevant when the coating has to follow the shape of the product. Raised profiles, routed doors, curved components, assembled parts, edges, and several visible faces can create coverage requirements that are not well represented by stable roller contact on one flat panel face.
The key water-based question is not simply whether a spray gun can reach the part. It is whether the sprayed coating can provide the required coverage and appearance, then enter the next leveling and drying stage without creating a mismatch between the finish target and the production flow.

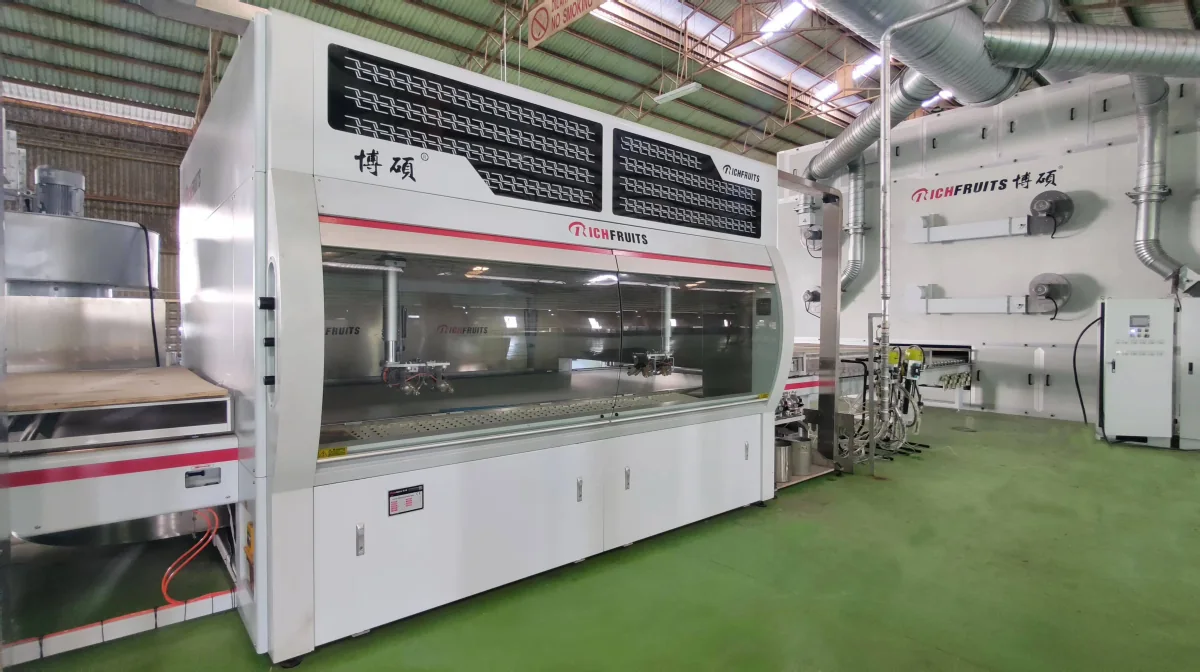

Richfruits’ automatic spraying pages describe water-based line options as connected processes rather than standalone spray machines. The public water-based spray example combines dust cleaning, automatic spraying, a leveling/drying stage, and hot-air drying. This supports a practical decision boundary for the article: water-based spray should be assessed together with the part path after spraying, not only by the shape of the workpiece at the spray zone.
Spray coating is therefore a stronger starting point when the finish must cover top faces and edges, move around profiles, or reach several surfaces that cannot be kept in stable roller contact. It is not automatically the higher-quality choice for a flat panel. If the required coating area is mainly one consistent face, the factory should still compare whether a roller-based route gives a more suitable process for that specific water-based coating and product.
For products with these geometry and coverage requirements, see automatic spray coating lines. The current water-based paint spraying line page is also a relevant on-site example of spraying, leveling, and drying arranged as one route.
The decision becomes clearer when the comparison stays focused on the water-based coating process rather than broad claims about one method being more efficient or more advanced.
Water-based process question | Roll coating is the stronger starting point when… | Spray coating is the stronger starting point when… |
|---|---|---|
Where must the coating go? | the main task is to coat a stable, flat face | the finish must reach edges, profiles, curves, recesses, or several faces |
How is the wet coating applied? | controlled transfer through stable roller contact is practical | the coating needs to follow the workpiece geometry through a spray pattern |
What must be controlled before drying? | panel contact, surface preparation, and the applied layer on the main face need to remain repeatable | coverage around shape, visible surfaces, and the part path after spraying need to remain repeatable |
What must the downstream line support? | leveling and drying or curing for a panel-based process, plus any later sanding or coating stage | leveling and drying or curing after spraying, plus handling that protects coated faces and edges |
What should the first trial prove? | the representative panel can receive, level, dry, and carry the required coating layer through the next stage | the representative part can receive the required coverage, level and dry to the target appearance, and move through the next stage without disturbing the finish |
The table does not mean a factory must assign one method to every product. It helps identify the first process to test. A product may include a flat face that supports one application method and details that require another. The important step is to decide the job of each coating layer and each application stage before the line is configured.
Some water-based finishing projects need more than a roll-versus-spray decision. A flat face, an edge, and a profile may not require the same application approach. A factory can evaluate the process by coating layer and workpiece area instead of forcing one method to perform every task.
For example, a controlled layer on a flat panel face and coverage around a visible edge may be treated as different process questions. The trial then needs to confirm that the first application, any drying or sanding stage, and the next application work together with the actual water-based coating system.
This is not a recommendation to add equipment by default. It is a reason to define what each stage must achieve before deciding whether one method is sufficient or whether a combined route deserves testing.
The sample trial should test a process, not only a coating appearance on one ideal piece. Use representative workpieces, including the surfaces and geometry that the production line will actually need to finish. Define the intended colour, gloss or matte level, coverage, visible texture, and defect limits before the test begins.
Then record the water-based coating system and the relevant surface-preparation condition for each sample. Run the selected application route together with the intended leveling, drying or curing, conveying, and handling stages. This makes it possible to see whether the finish still meets the target after the wet coating has completed the full process.
The final comparison should answer three practical questions:
Did the coating reach every surface that matters?
Did the dried result meet the intended appearance on representative workpieces?
Can the result be repeated through the required downstream stages?
The outcome should define the next test or the process range to be developed. It should not turn one acceptable sample into a universal water-based recipe.
Water-based roll coating is the better starting point when the job is a controlled coating layer on stable, flat faces and the panel can move through the required leveling and drying process. Water-based spray coating is the better starting point when coverage must follow edges, profiles, curves, or several faces and the part can be supported by the required spray, leveling, drying, and handling flow.
The deciding factor is not simply that the coating is water-based. It is whether the selected application method allows that water-based coating to reach the required surfaces and complete the full finishing process on the real product.
Contact Richfruits for application-specific equipment guidance if you are comparing water-based roll coating and spray coating for a wood product. Share a representative workpiece, the surfaces that need coating, the water-based coating system, finish target, and available drying conditions so a practical sample-trial path can be defined.
