What Is A PUR Laminating Machine? How It Works And Applications

A PUR laminating machine is an industrial system that bonds a decorative film, sheet, foil, or veneer to a flat panel with polyurethane reactive hot-melt adhesive. Unlike an office laminator, it is designed for continuous production of cabinet doors, furniture panels, interior wall panels, wood doors, and other finished building materials.

For manufacturers, however, the more useful question is not simply “What is it?” It is whether PUR technology can produce the required finish, bond strength, speed, and cost with their actual materials.

What Makes PUR Lamination Different?

PUR stands for polyurethane reactive. The adhesive is heated until it reaches a suitable application viscosity, spread in a thin and controlled layer, and pressed between the substrate and surface material. After joining, the adhesive reacts with moisture and develops a cross-linked bond.

This second curing stage distinguishes PUR from conventional EVA hot melt, which gains most of its strength by cooling. The completed PUR bond can provide strong resistance to water, heat, cold, chemicals, and long-term edge lifting. The precise performance still depends on the selected adhesive, substrate preparation, coating weight, and curing conditions.

PUR is therefore useful when a standard hot melt glue cannot meet the finished panel’s durability requirements.

How Does a PUR Laminating Machine Work?

A complete hot melt lamination machine normally follows eight steps:

1. Panel feeding: MDF, plywood, particleboard, calcium silicate board, or another substrate enters the line.

2. Centering and dust removal: The panel is aligned, and particles are removed before gluing. Even small particles may remain visible under high-gloss film.

3. Preheating: The panel is brought to a stable surface condition to improve adhesive wetting.

4. Adhesive melting: A sealed melter heats the PUR adhesive while protecting it from uncontrolled moisture.

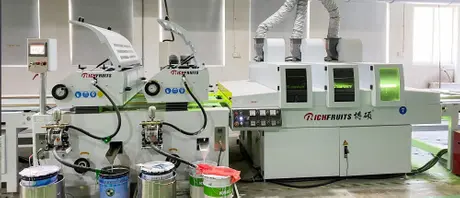

5. Metered glue application: A roller coater or slot-die system applies a consistent adhesive layer.

6. Film feeding and alignment: PET, PETG, PVC, PP, decorative paper, aluminum foil, acrylic sheet, CPL, HPL, or wood veneer is positioned over the panel.

7. Pressure lamination: Pressing rollers remove trapped air and create uniform contact across the working width.

8. Cutting, cooling, and curing: The film is trimmed, the panel is stabilized, and the adhesive continues curing after it leaves the line.

This sequence explains how a laminator machine works, but it also shows why lamination quality cannot be judged by the laminating rollers alone. Dust removal, adhesive condition, film tension, temperature, pressure, and line speed operate as one process.

Processing Data: What the Numbers Actually Mean

One published PUR flat-lamination adhesive specifies an application temperature of 120–140°C, with a minimum room condition of 20°C and 40% relative humidity. A broader flat-lamination adhesive range lists open times from less than one minute to less than eight minutes, depending on the formulation and application.

These figures are useful references, not universal machine settings. At 120°C, one example adhesive has a viscosity of 18,000 mPa·s; at 140°C, it falls to 9,000 mPa·s. This demonstrates why temperature control matters: increasing temperature changes flow and transfer behavior. Excessive heat can damage adhesive or film, while insufficient heat may produce poor wetting and uneven coating.

The correct settings must come from the adhesive technical data sheet and a trial using the buyer’s real panel and surface material.

Richfruits’ PUR panel laminating equipment is designed for four-foot-wide surface materials, with a stated processing-speed range of 3–18 m/min. Actual production speed will depend on panel dimensions, film behavior, adhesive open time, surface quality, and the required finish.

Main Types of Lamination Machine

The term “laminating machine” covers several different production processes:

• Flat-panel laminating machine: Bonds film, foil, sheet, paper, or veneer to MDF and other flat boards.

• Profile wrapping machine: Wraps foil or veneer around mouldings, frames, and shaped profiles.

• Roll-to-roll laminator: Joins flexible materials such as film, fabric, foam, or nonwoven rolls.

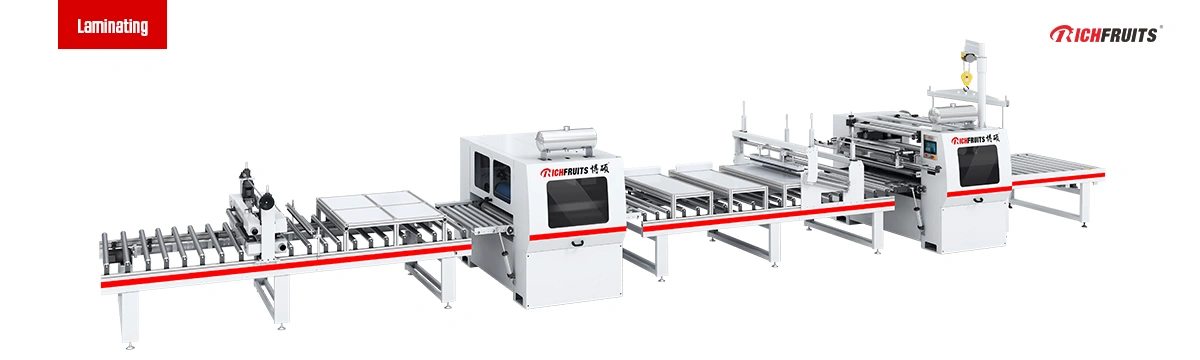

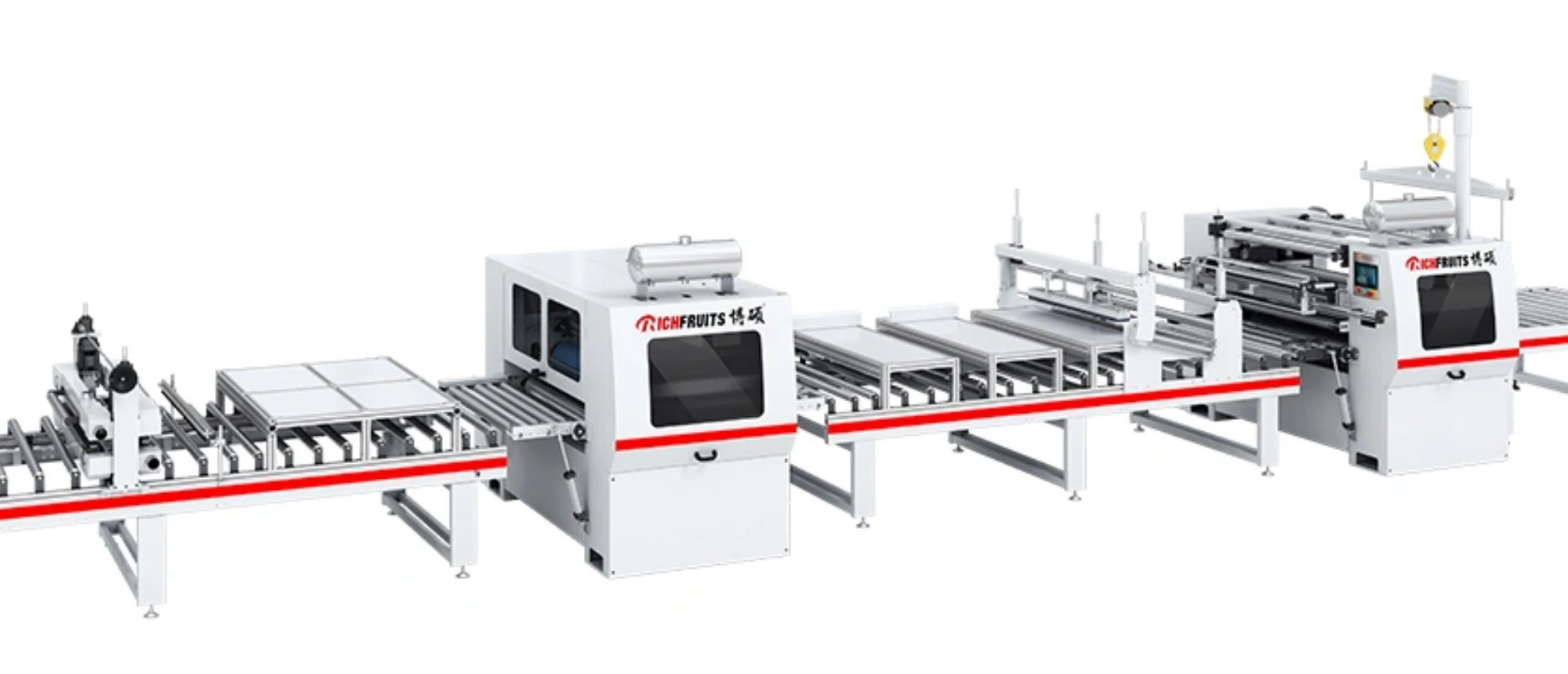

• Semi-automatic line: Suitable for lower volumes or factories with more manual material handling.

• Fully automatic line: Adds automatic loading, cleaning, film cutting, centering, and unloading for repeatable high-volume production.

A buyer producing cabinet panels should not select a textile laminator simply because both machines use PUR. The material form, feeding method, pressure system, and tension requirements are different.

Common Applications

Furniture and Cabinet Panels

A wood laminating machine can apply PET, PVC, PP, decorative paper, or wood-grain film to MDF, particleboard, and plywood. Typical products include cabinet doors, wardrobe panels, shelves, furniture components, and decorative boards.

High-gloss films demand excellent dust control and stable pressure because particles and pressure variation remain visible in the finished surface. Super-matt films may require careful tension and temperature control to avoid gloss changes or stretching.

Wood Doors

Wood veneer or decorative film can be laminated onto door panels to create a consistent finish without relying entirely on a sprayed coating process. Buyers should test the panel face and edge system separately, especially when the finished door will be exposed to humidity changes.

Wall and Building-Material Panels

PUR systems can process calcium silicate board, fiber-cement board, gypsum board, glass-magnesium board, honeycomb board, and other composite substrates. Possible finishes include decorative film, aluminum foil, fire-resistant sheet, and veneer.

Mineral boards require careful dust removal and surface evaluation. A strong adhesive cannot compensate for a weak, dusty, or unstable substrate surface.

PUR laminated decorative panels for furniture and interior wall applications

Specialty Composite Panels

PUR lamination can also combine acrylic, metal sheet, foam board, functional film, and other materials. Pre-treatment may be necessary for low-energy plastics, coated metals, or unusually smooth surfaces.

PUR vs. EVA Hot Melt vs. Cold Glue

PUR is not automatically the best choice for every product. EVA may be adequate for indoor panels with moderate performance requirements. Cold glue may remain practical when heat-sensitive materials or an established low-speed process is involved. The correct choice is the one that meets the product test at an acceptable total cost.

Common Defects and What They Reveal

• Bubbles: Check dust, substrate moisture, trapped air, adhesive wetting, and roller pressure.

• Weak bonding: Verify adhesive temperature, coating weight, open time, material compatibility, and curing time.

• Wrinkles: Inspect film tension, alignment, feeding speed, and temperature.

• Visible glue lines: Check roller cleanliness, glue distribution, substrate flatness, and pressure balance.

• Edge lifting after storage: Review edge preparation, curing conditions, adhesive selection, and environmental exposure.

A common purchasing mistake is choosing a machine by working width and maximum speed alone. Buyers should also compare glue-use stability, changeover time, cleaning access, pressure consistency, spare-parts support, and the supplier’s ability to test the complete material combination.

Safety and Maintenance Matter

Reactive polyurethane products may contain isocyanate-related components. Exposure can affect the eyes, skin, and respiratory system and may contribute to occupational asthma. Operators should follow the adhesive safety data sheet, use appropriate ventilation and protective equipment, and avoid opening or servicing heated adhesive systems without proper procedures.

A closed melter, controlled adhesive transfer, scheduled cleaning, and trained maintenance staff support both safety and consistent bonding.

How to Choose the Right PUR Laminating Machine

Before requesting a proposal, provide the supplier with:

• Panel material, size, thickness, and surface condition

• Film, sheet, foil, paper, or veneer specification

• Required working width and daily output

• Target line speed and finish standard

• Adhesive brand or performance requirement

• Available factory space and automation level

Then request a sample test with the real production materials. Inspect surface flatness, particle visibility, edges, peel performance, glue consumption, and appearance after curing. This test is more valuable than comparing machine specifications in isolation.

Richfruits can evaluate customer-supplied panels and decorative materials, recommend a process configuration, and plan a line around the required output and factory space.

Frequently Asked Questions

Is PUR the same as ordinary hot melt glue?

No. PUR is a reactive hot melt that continues cross-linking with moisture after the initial bond forms. Ordinary EVA hot melt primarily sets by cooling.

Does PUR lamination require a drying oven?

It normally avoids the long evaporation tunnel associated with water-based glue. However, the laminate still needs the curing conditions specified by the adhesive supplier.

Can one machine process every panel and film?

No. Compatibility depends on the feeding system, working width, application method, pressure range, temperature control, and material surface. Testing is essential.

What should I send for an equipment recommendation?

Send the panel and surface-material specifications, product photos, dimensions, desired capacity, finish requirements, and factory layout.
