Robotic vs. Reciprocating vs. 5-Axis Spray Painting Machines: How to Choose for Your Workpieces

The best spray painting machine is not necessarily the one with the most axes. It is the least complex system that can coat every required surface, achieve your production target, and change between products without excessive downtime.

Start with three questions:

1. Is the workpiece flat, contoured, or deeply recessed?

2. How many parts and product variations must be finished per shift?

3. Does the spray gun need to change its angle continuously?

In general, reciprocating machines excel at continuous production of flat parts, 5-axis machines suit repeatable multi-surface components, and robotic systems offer the greatest freedom for complex or frequently changing workpieces.

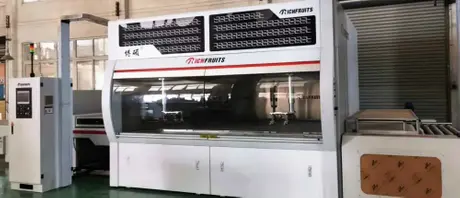

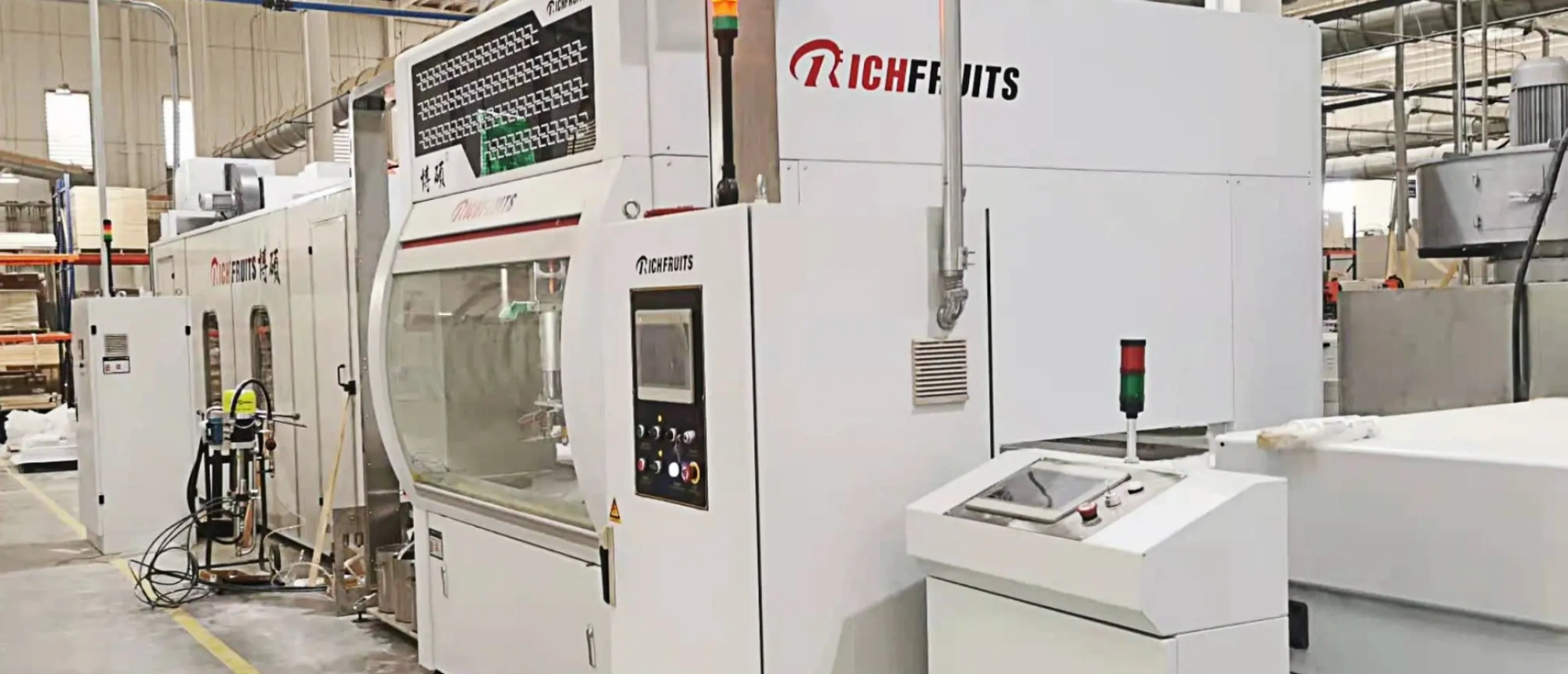

Automatic Spray Painting Machine for Industrial Workpieces

Quick Comparison of the Three Systems

This comparison is only a starting point. Spray quality also depends on gun type, atomizing pressure, paint flow, gun distance, line speed, booth airflow and fixture design.

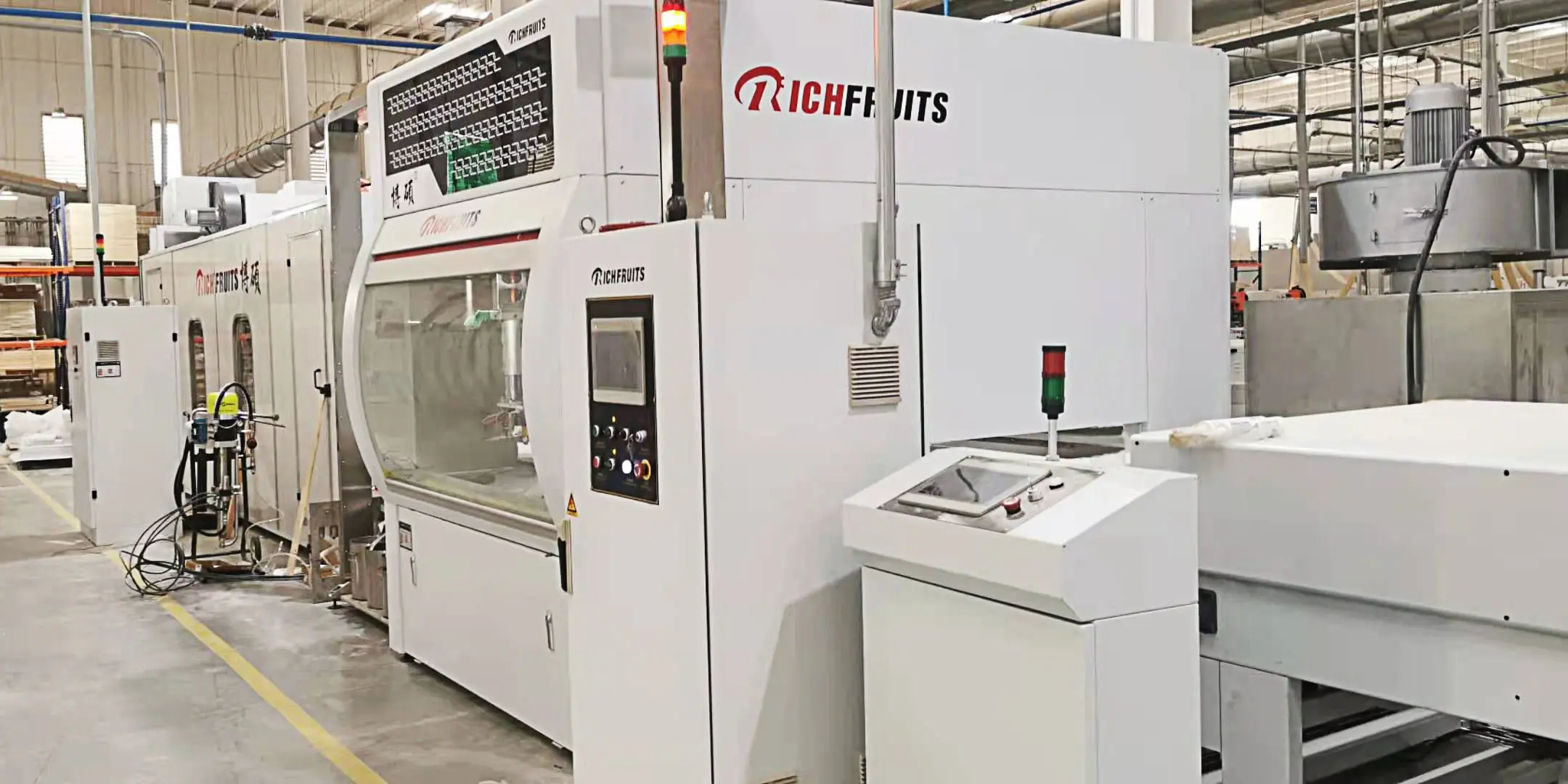

Choose a Reciprocating Spray Painting Machine for Flat, High-Volume Parts

An automatic reciprocating spray painting machine moves one or more spray guns across workpieces traveling on a conveyor. A scanner can identify the part dimensions and activate only the guns needed for that area.

It is usually the most efficient choice for:

• Flat cabinet and furniture doors

• MDF, plywood and decorative panels

• Tabletops and shelving

• Glass, metal or plastic sheets

• Similar parts produced continuously

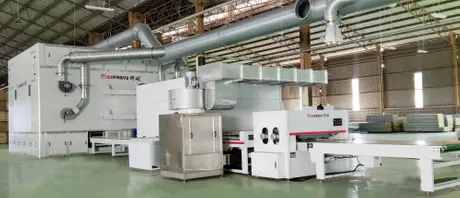

The straight-through layout makes it easier to connect sanding, dust removal, coating, flash-off and drying equipment. Because multiple parts can pass through without stopping, the system is well suited to high-output lines.

However, a reciprocating machine should not be selected solely from its maximum working width. Test the deepest profile, narrowest edge and most heavily carved part. A machine that covers the face quickly may still require manual touch-up on grooves, back edges or recessed areas.

Best-fit rule: Choose reciprocating motion when most surfaces face upward and the products can share similar gun height, angle and conveyor settings.

Choose a 5-Axis Spray Painting Machine for Repeatable Multi-Surface Work

An automatic 5 axis spray paint machine coordinates linear and rotary movement to control the gun’s position and angle. It can follow curved paths, coat sidewalls and repeat stored programs more effectively than a basic reciprocator.

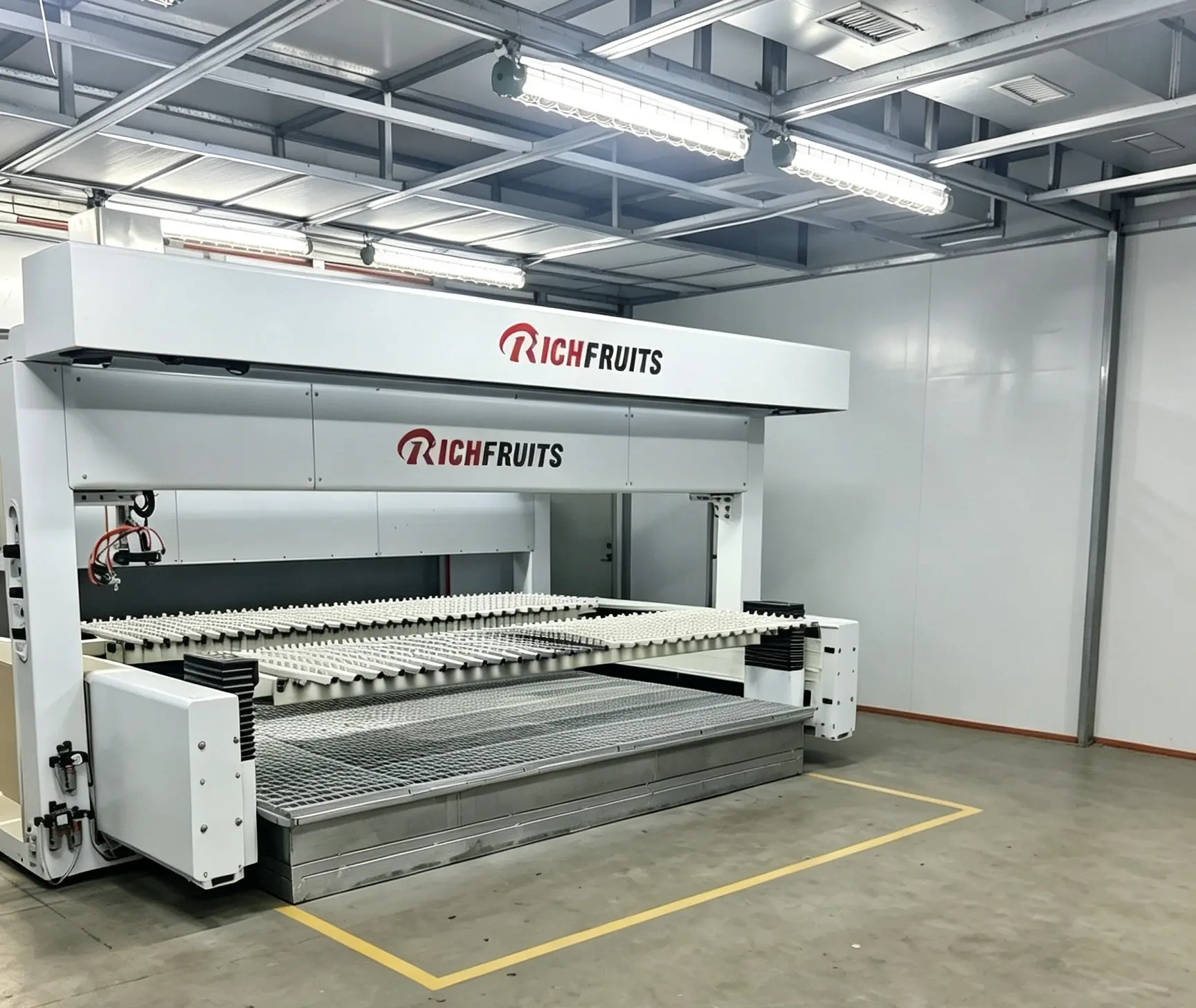

5-Axis Intelligent Spray Painting Machine

Typical applications include:

• Plastic and electronic housings

• Handles, hardware and small metal parts

• Toys and decorative components

• Speaker cabinets

• Automotive accessories

• Products with consistent curves and side surfaces

A 5-axis system provides a practical middle ground: more coverage flexibility than a reciprocating machine without the full cost and reach of an articulated robot.

Before choosing one, compare the workpiece envelope with the machine’s usable X, Y and Z travel—not just its nominal table size. Then check rotary-axis limits, gun angle, fixture clearance and whether the underside requires a second operation.

Fixtures are especially important. A poorly placed clamp can block the spray path even when the machine has sufficient axis movement. For mixed production, verify how quickly operators can load a new program, replace fixtures and flush the coating circuit.

Best-fit rule: Choose a 5-axis machine when your parts are three-dimensional but repeatable, and when every required surface can be reached within a defined work envelope.

Choose a Robotic Spray Painting Machine for Complex Geometry

A robotic spray painting machine uses an articulated arm that can continuously adjust gun position and orientation. Its large range of motion makes it suitable for parts that cannot be presented as a simple flat surface.

Consider robotic spraying for:

• Chairs, window frames and assembled furniture

• Automotive or appliance components

• Large fabricated structures

• Parts with deep recesses or multiple intersecting surfaces

• Production with frequent model changes

• Processes requiring different speeds and gun angles along one path

A robot can be mounted on the floor, wall, ceiling or an external travel axis. Vision systems can also compensate for variations in workpiece position. These capabilities are valuable, but they increase the importance of programming, collision checking, safety integration and maintenance support.

Do not pay for robotic flexibility unless the production mix uses it. A robot may be technically capable of spraying a flat door, but a reciprocating line could process thousands of similar doors with a simpler workflow.

Best-fit rule: Choose robotic spraying when geometry and product variation—not merely production speed—are the main challenges.

Compare Total Process Cost, Not Machine Price

The machine is only one part of an automatic spray painting system. A realistic comparison should include:

• Loading and unloading labor

• Fixtures and part rotation

• Spray booth and exhaust

• Paint pumps, mixing and circulation

• Color-change and cleaning time

• Conveyor or indexing equipment

• Flash-off and curing

• Filters and overspray disposal

• Programming, training and spare parts

• Manual touch-up and rejected parts

Paint transfer efficiency also depends strongly on the application technology and the workpiece. An EPA technical manual reports broad typical ranges of 30–60% for conventional air spray, 50–90% for HVLP and 65–95% for electrostatic spraying. These ranges are not purchase guarantees; actual performance must be measured using your coating, part geometry and operating parameters. U.S. EPA technical manual

Compressed air deserves equal attention. The U.S. Department of Energy notes that poorly maintained industrial systems may lose 20–30% of compressor output through leaks. A more advanced machine will not lower operating costs if atomizing air and paint-delivery systems are unstable or leaking. U.S. Department of Energy

Use a Sample Test Before Making the Final Decision

Send suppliers your largest part, smallest part and most difficult part—not only the easiest sample. Use the production coating and intended fixture.

For each machine, run at least 20 consecutive parts and record:

1. Total cycle time, including loading and unloading

2. Dry-film thickness at 5–9 repeatable points

3. Edge, recess and back-surface coverage

4. Coating consumed per acceptable part

5. Number of parts requiring touch-up

6. Cleaning and color-change time

7. Variation between the first and final part

This test reveals more than a maximum-speed specification. The correct system is the one that produces acceptable parts repeatedly, not the one that moves fastest without coating.

Common Selection Mistakes

Avoid these costly errors:

• Choosing by axis count instead of surface accessibility

• Using theoretical spray time as the complete production cycle

• Ignoring fixture shadows and part repositioning

• Testing only a simple, flat sample

• Forgetting cleaning and color-change losses

• Comparing machine prices without booth and drying costs

• Assuming automation removes all safety requirements

For U.S. installations, spray-area design must be evaluated as part of the project. OSHA requires adequate mechanical ventilation during spraying and for sufficient time afterward to exhaust vapors and residues. Grounding, exhaust, ignition control and fire protection must therefore be considered before finalizing the machine layout. OSHA 29 CFR 1910.107

Final Recommendation

Choose a reciprocating machine for high-volume flat products, a 5-axis machine for repeatable multi-sided components, and a robot for complex or highly variable workpieces.

If your product range includes both flat panels and irregular parts, one oversized machine may not be the best answer. A high-speed reciprocating line for standard panels plus a separate 5-axis or robotic cell for complex products can provide better utilization and lower operating risk.

To receive a practical recommendation, provide your workpiece drawings or photos, maximum dimensions, coating type, target output, required surfaces and color-change frequency. A sample spray test should confirm the final configuration before equipment production begins.
