Why Factories Are Switching to Solid Wood Panel Roll Coating

Solid wood does not make a factory an automatic candidate for roll coating. Natural grain, porosity, moisture condition, thickness variation and panel flatness can all change how a coating transfers and how the finished surface looks.

Factories begin to evaluate solid wood panel roll coating when they need to turn repeated flat-panel coating work, connected finishing stages and sample results into a process that can be reproduced in production. That opportunity is strongest when a meaningful share of the work consists of flat parts, the coating task can be defined clearly, and the process can be tested on representative boards before it is scaled. Roller coating does not remove every source of variation in the wood itself.

The useful question is not whether roll coating is more advanced than every other method. It is whether the workpiece, coating and complete production flow can create repeatable roller contact and a repeatable surface result.

The Decision Starts With the Workpiece, Not the Coater

A roller coater transfers a controlled liquid film through contact between a moving panel and an application roll. That contact is most predictable when the workpiece is flat, dimensionally stable and prepared consistently across the working width.

For solid-wood panels, the material has to be assessed as a production input rather than treated as one uniform category. Boards may differ in grain direction, density, porosity, sanding response, moisture condition and local flatness. Those differences can affect wetting, absorption, film transfer and the appearance of the finished coating.

This does not rule out roller coating. It means the factory should first identify which differences are normal within the intended product range and which differences need to be managed before coating. A stable process begins with a clear definition of the panels it is expected to run.

When Solid-Wood Panels Create a Repeatable Coating Opportunity

Roll coating is worth evaluating when the production mix includes largely flat, repeatable components such as flat doors, cabinet parts, flooring elements or furniture panels. The coating pass should also have one defined purpose. It may be a stain application, a sealing layer, a filling step, a primer pass or a finish layer. Each task places different demands on material transfer and downstream treatment.

The opportunity becomes clearer when the factory can group boards by their relevant condition, keep sanding and dust removal consistent, and evaluate the same finish target across representative samples. A line does not need every board to look identical before testing starts. It does need a practical way to recognize the variation that affects the result.

When Natural Variation Must Be Addressed First

Some conditions should be addressed before a factory expects a roller setting to solve them. A bowed or twisted panel can change contact across the width. Thickness variation can change how strongly a roll contacts different areas. Uneven sanding, dust in the grain or local absorption can appear later as visible differences in colour, gloss, filling or film build.

The right response is not automatically more pressure, more coating or a more complex machine. First determine whether the variation follows the board, the surface preparation, the coating condition or the transfer stage. That sequence avoids using a machine adjustment to hide a material or preparation issue that will return later in production.

What Changes When a Factory Moves to a Defined Roller Process

The main change is not simply replacing one application tool with another. A roller process requires the factory to define and record the coating task, panel condition and acceptance target clearly enough to repeat.

The process must establish a stable relationship between the prepared panel, the coating supplied to the rolls, the contact condition and the downstream drying or curing stage. That makes process discipline more important, not less.

A Roller Coater Controls Transfer, Not Every Source of Variation

A roller coater can meter coating and transfer it to a moving panel. The deposited film is still influenced by coating condition, roller contact, roll and conveyor speed relationships, panel surface condition and the next stage of the line. A smooth wet panel is not yet proof of a stable final result.

This is why sanding, dust removal, leveling, drying or curing and panel handling must be considered together with the coater. If the finish changes after the coating stage, the cause may sit upstream or downstream rather than in the roller unit itself.

For a broader explanation of this sequence, see roll coating process for wood and flat panels. The decision for solid wood panels should use that process logic, while paying closer attention to the material variation that the line must accommodate.

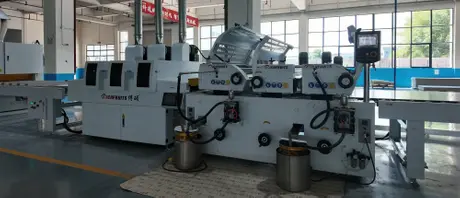

Roller coating application section in a Richfruits flat-panel finishing line.

Why the Coating Pass Must Have One Clear Job

One pass may need to fill pores or surface depressions. Another may need to seal the wood, establish a sanding base, retain a visible grain, create colour, or form the final surface. Treating every pass as a general “paint application” makes it difficult to decide what the roller stage must control.

The process should be selected around the function of the pass. A stage that needs straightforward deposit may call for a different transfer approach from a stage that needs tighter wet-film control or redistribution. Direct and reverse roll coating are therefore process choices, not quality rankings. Direct vs reverse roll coating for wood panels explains how the transfer relationship changes and why neither method is automatically better for every board.

A Practical Readiness Check Before a Solid-Wood Roll-Coating Trial

Before defining equipment scope, the factory should run a trial that represents production rather than a single best-looking board. The objective is to learn whether the target finish can be repeated within the expected panel range.

Start by defining the intended product group and finish target. Record whether boards are raw, sealed or previously coated, how they were sanded, and which visible conditions matter to acceptance. Establish the coating material and its preparation condition. Then set out the stages that the sample must pass through, including cleaning, application, any leveling time, drying or curing, intermediate sanding and final inspection where relevant.

Use Representative Panels, Not One Best-Looking Sample

A useful trial contains panels that reflect the normal range of the production job. If the incoming material changes between batches, the trial should make those groups visible rather than treating them as random exceptions. The comparison can then show whether the process stays acceptable across that range or whether certain panel conditions need separate preparation or process treatment.

The trial should not change every variable at once. If the factory changes panel preparation, coating condition, roller contact and line speed together, an acceptable sample may be produced without showing which condition made the difference. A controlled sequence gives the production team a better basis for a repeatable operating window.

The factory can move to line-scope planning when representative boards can be grouped and prepared consistently, the target finish is defined, and repeated samples reach an acceptable result under recorded conditions. It should pause that step when the panel range is not yet understood, surface preparation changes unpredictably, or the coating task and finish target have not been defined. In those cases, the first need is to clarify the material or process condition, not to specify a roller coater.

Record the Conditions That Affect the Result

The process record should connect the panel to the result. It can include the panel type and preparation, the coating batch and condition, the roller configuration, the relationship between roll and conveyor movement, and the relevant drying or curing conditions. The inspection record should focus on the agreed finish target, such as coverage, texture retention, local absorption, roller marks, streaks, edge buildup or other visible defects that matter to the product.

This record is not paperwork added after the fact. It is what allows an accepted sample to become a production process that another operator can understand, monitor and repeat.

Richfruits roller coating line with a process-control display.

From a Successful Trial to a Suitable Line Scope

Only after the result is repeatable should the factory decide what the complete line needs. The scope may include sanding and dust removal, one or more coating stages, leveling, drying or curing, intermediate sanding, stable conveying and protected unloading. Each module should have a process reason.

For example, a porous surface may require a defined filling or sealing function before a later appearance-sensitive pass. A finish that depends on stable flow may require appropriate time and conditions between application and curing. A panel that arrives with inconsistent thickness may need a material-control or preparation decision before the coating unit is specified. The line should follow the validated process, rather than asking the process to justify a preselected machine arrangement.

Richfruits can discuss a roller coating line for flat-panel finishing in this same order: start with the workpiece, coating and target surface, then define the functions needed from preparation through final handling. The resulting scope may use different roller configurations or downstream stages depending on the actual coating pass and panel condition.

For a broader view of Richfruits’ finishing-equipment range, visit Richfruits.

Conclusion: Choose Roll Coating When the Process Can Be Repeated

Factories evaluate solid wood panel roll coating when they need a defined, repeatable way to apply a coating to suitable flat workpieces. The decision is strongest when the panel range is understood, surface preparation is controlled, each coating pass has a clear job and the result has been confirmed on representative boards.

Roll coating should not be presented as a universal answer for natural wood variation, highly irregular parts or an undefined finish target. It becomes a practical production option when the factory can turn those conditions into a tested process.

If you are assessing roller coating for solid wood panels, contact Richfruits with representative panel details, the coating system, the target surface and the current production sequence. This makes it possible to define the trial scope and the process functions that need to be evaluated.
