Choosing between a roller coater and a curtain coater is not simply a question of which machine runs faster. The better process depends on what you are applying, how much coating the panel needs, the required surface quality and how consistently the rest of the line can support it.
The practical answer is straightforward: choose roller coating for accurately metered thin-to-medium coats on consistently flat panels. Choose curtain coating when a higher coating weight and a smooth, well-leveled top surface are the priorities.
Some production lines benefit from both: roller coating for fillers, sealers or primers, followed by curtain coating for a high-build decorative topcoat.
A roller coater transfers liquid coating from a metering system to an application roller and then directly onto the panel. Wet-film weight is influenced by the roller gap, pressure, roller hardness, relative roller speed, conveyor speed and coating viscosity.
Because coating transfer requires stable contact, the roller coating process performs best when panels are flat and their thickness is consistent. Typical applications include MDF, plywood, cabinet panels, wooden doors, flooring and other flat components.
A curtain coater pumps coating into a coating head that produces a continuous liquid curtain. The panel passes through the curtain on a conveyor, while excess coating is collected, filtered and returned to the reservoir.
Curtain coating does not depend on direct roller-to-panel contact. However, it requires a stable curtain, steady conveyor movement and carefully controlled coating properties. Pump flow, viscosity, temperature, surface tension, filtration, belt vibration and surrounding airflow can all affect the result.
Decision factor | Roller coater | Curtain coater |
|---|---|---|
Best suited to | Thin-to-medium controlled coats | Medium-to-heavy single-pass coats |
Common applications | Filler, sealer, primer and controlled topcoat | High-build and decorative topcoat |
Finish | Repeatable, but poor settings may leave roller marks | Smooth, well-leveled surface with strong high-gloss potential |
Main controls | Gap, pressure, roller speed and conveyor speed | Flow rate, curtain stability and conveyor speed |
Panel requirements | Flat surface and stable thickness | Flat, stable panels with smooth conveying |
Main process risk | Tramlines, uneven transfer or roller pattern | Curtain breaks, edge buildup or trapped air |
Changeover concern | Cleaning rollers and coating circuit | Cleaning head, pump, filter and reservoir |
These are process tendencies, not guaranteed machine specifications. The correct coating weight must be established through tests using the actual panel, coating and curing conditions.
A roller coater is usually the stronger option when material control and repeatability matter more than applying a heavy coat in one pass.
Choose roller coating when:
Panels are flat and have limited thickness variation.
The process applies filler, sealer, primer or a controlled topcoat.
Coating consumption per square meter is a critical cost.
Production requires repeatable coating weight over long batches.
The coating can be transferred without damaging or contaminating the roller.
The desired finish can tolerate the roller texture or includes enough leveling time.
Roll coating is particularly effective in a modular roller coating line that includes dust removal, sanding, leveling and UV curing.
Official industrial coating training material uses approximately 95% transfer efficiency as a reference for roller coating. Actual usable material efficiency may be lower after cleaning losses, coating left in the circuit, rejects and color changes are included.
That distinction matters. A machine can transfer coating efficiently during stable production but still produce a poor total material yield if it requires frequent cleaning or generates off-spec panels during setup.

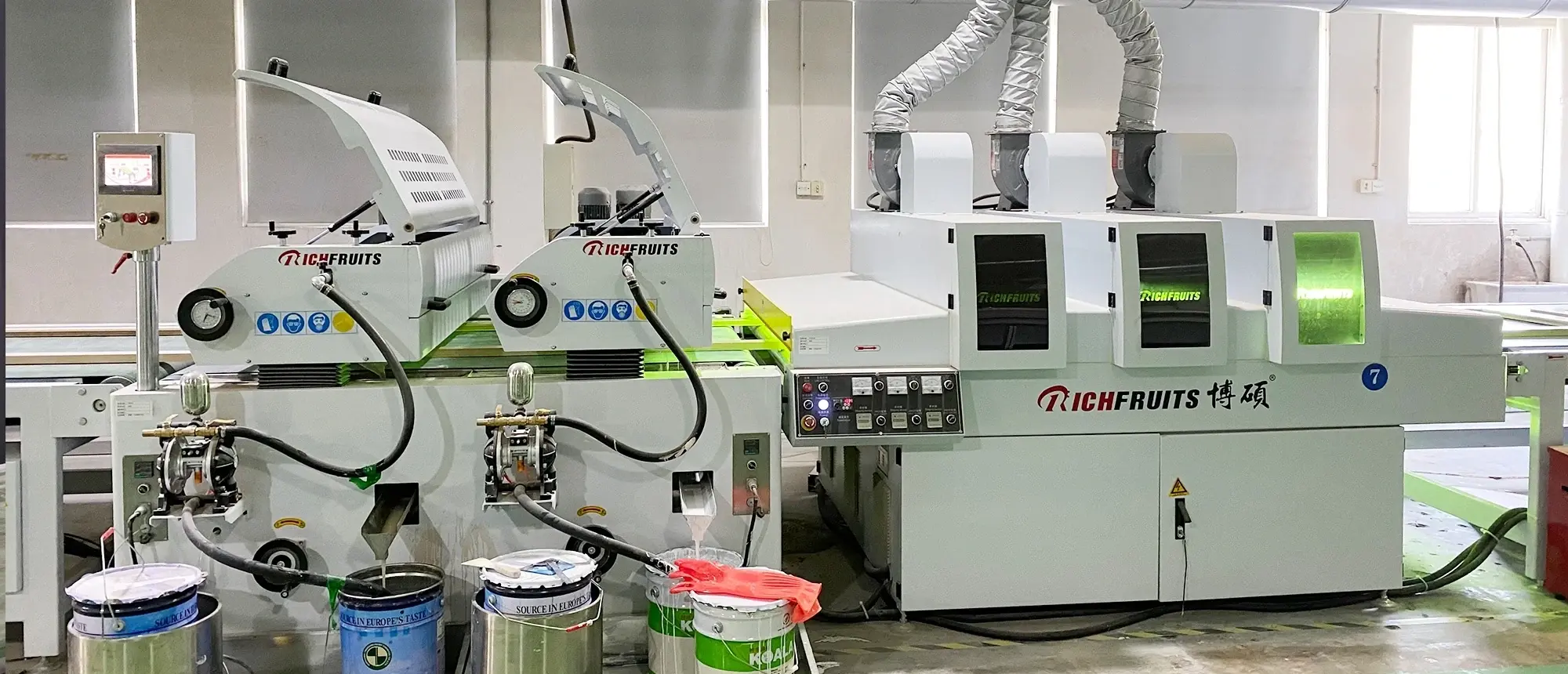

Double roller coater application system for controlled coating transfer
Curtain coating is often preferred when the product needs a higher coating weight, strong leveling and a premium surface appearance.
Choose a curtain coater when:
A relatively thick, smooth coat is required in one pass.
High-gloss or highly decorative panels are being produced.
Panel width and line speed remain consistent during production.
The coating supplier confirms that the formulation is suitable for curtain application.
Temperature, viscosity and filtration can be monitored reliably.
Batch sizes are large enough to justify setup and cleaning time.
With proper collection and recirculation, curtain coating transfer efficiency can exceed 90%. This does not mean that more than 90% of every purchased coating becomes saleable finished film. Reservoir residue, filtration, cleaning solvent, edge loss and rejected panels still affect total consumption.
Curtain coating also needs adequate downstream capacity. Applying a heavier wet film is of little value if the flash-off, leveling, hot-air drying or UV curing section cannot process it at the planned line speed.
Specify the target in g/m² or wet-film thickness instead of asking only for “thin” or “thick” coating. A small difference becomes significant at industrial scale.
For example, reducing coating use by 10 g/m² across 10,000 m² of production saves 100 kg of wet coating. However, reducing the film below the coating supplier’s specification may cause poor hiding, adhesion or durability.
Fillers and primers often favor controlled roller application. High-build decorative topcoats may favor curtain coating. Do not select one process for the entire finishing system without evaluating each layer separately.
Warped panels, deep grooves, routed patterns, rounded edges and major thickness variation can cause incomplete coverage. If these features are common, an automatic spray coating machine or a combined process may be more suitable.

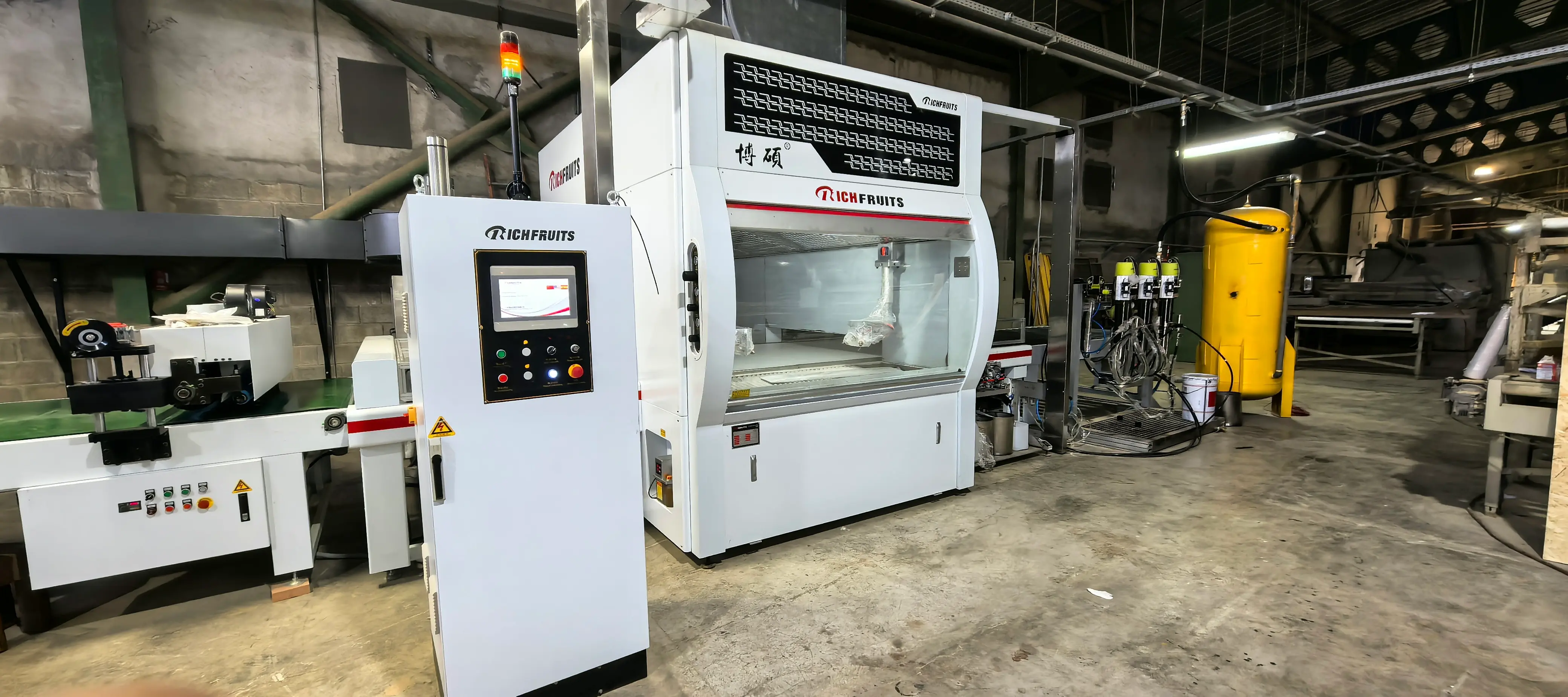

Automatic spray coating solution for routed and profiled panels
Short batches and frequent color changes can make cleaning time more important than maximum running speed. Compare productive hours per shift, not only the advertised conveyor speed.
The coater is only one station. Dust removal, sanding, flash-off, leveling, drying, UV energy and handling must all support the selected film build and output.
The first mistake is assuming that a higher coating speed automatically increases production. If curing becomes the bottleneck, the complete line will not achieve the coater’s rated speed.
The second is comparing purchase price without calculating coating consumption, changeover labor, cleaning solvent, reject rate and downtime.
The third is using a supplier’s standard film-weight range as a production guarantee. Coating solids, viscosity, substrate absorption, temperature and line settings can all change the result.
Finally, neither process automatically coats complicated edges or recesses. Roller and curtain systems are primarily flat-panel technologies.
Yes. A combined line can use roller coaters for putty, filler, sealer or primer and a curtain coater for a smooth, high-build topcoat. This arrangement can provide better control over each layer than forcing one machine to perform every task.
The trade-off is a longer line, more process variables and greater cleaning complexity. Before investing, run samples and record panel material, target coating weight, viscosity, conveyor speed, curing energy, adhesion and visible defects.
Choose a roller coater for precise application, controlled consumption and repeatable thin-to-medium coats. Choose a curtain coater for higher film build and a smooth decorative finish under stable production conditions.
For mixed coating cycles, the right answer may be a combined line rather than a single machine.
Send Richfruits your panel dimensions, coating technical data, target coating weight, finish requirement and hourly output. Our engineers can evaluate whether a roller, curtain or combined coating line provides the best production fit.
No, but it often provides better leveling for high-build topcoats. Final gloss also depends on surface preparation, coating formulation, environment and curing.
Both can achieve high transfer efficiency. Total consumption depends on the specified film weight, recovery system, cleaning loss, changeovers and reject rate.
Yes. Suitability depends on the required film build, surface appearance, roller configuration and available leveling time.
Only to a limited extent. Deep profiles, recesses and complex edges generally require spray coating or a combined application process.
