Overspray is more than paint that misses the workpiece. It increases coating consumption, loads filters faster, contaminates conveyor belts, complicates color changes, and can create finish defects on later parts.
A well-designed automatic spray painting machine manages this problem in four stages:
It prevents unnecessary spraying.
It directs airborne paint mist toward filters.
It continuously cleans paint from the conveyor belt.
It collects suitable coating for controlled reuse or disposal.
These systems work together, but they do different jobs. Understanding those differences helps manufacturers compare machines using operating cost and finish quality—not headline recovery claims alone.
The least expensive overspray is the paint that is never sprayed.
In an automated spray painting process, sensors detect the workpiece’s width, length, position, and gaps between panels. The controller then activates only the spray guns needed to cover the detected area. Gun triggering should stop before the leading and trailing edges pass beyond the useful spray zone.
Spray pressure, fan width, coating flow, gun distance, reciprocator speed, and conveyor speed must also be coordinated. If the spray fan is wider than the panel, pressure is unnecessarily high, or the gun remains active between workpieces, even an excellent recovery system will be handling avoidable waste.
Transfer efficiency provides a useful measurement:
Transfer efficiency = coating solids deposited on the part ÷ coating solids sprayed
Historical EPA test data illustrate why the workpiece matters. Under controlled tests, air-atomized electrostatic equipment achieved approximately 23.5–33.7% transfer efficiency on vertical cylinders but 78.5–84.4% on flat-panel targets. These figures are not universal machine specifications; they show that geometry and test conditions can change results dramatically. EPA transfer-efficiency test report
For a buyer, this means a recovery percentage without the panel dimensions, spray settings, coating type, and measurement method has limited value.
Paint that does not land on the workpiece or conveyor may remain suspended in the booth air. Controlled airflow carries these droplets away from the coating zone and toward the overspray separation system.
A typical dry system uses multiple stages:
An initial layer captures larger, wetter droplets.
A secondary filter retains finer particles.
An exhaust or treatment stage is selected according to the coating, emissions, and applicable regulations.
Filters protect airflow stability as well as cleanliness. As paint accumulates, resistance increases. Reduced or uneven airflow can allow mist to circulate inside the booth, contaminate components, and affect the finish.
For conventional US dry-type spray booths, OSHA guidance specifies an average open-face velocity of at least 100 feet per minute, or about 30 metres per minute, for non-electrostatic spraying. It also requires filter inspection after each period of use and replacement of clogged pads. The correct value for an enclosed automated machine must still be determined by its design, coating load, fire-safety assessment, and local rules. OSHA spray-finishing guidance
Air filtration should not be confused with VOC treatment. A particulate filter may capture paint droplets, but it does not automatically remove solvent vapours. VOC control must be evaluated separately using the coating’s safety data, exhaust volume, production rate, and local emission requirements.

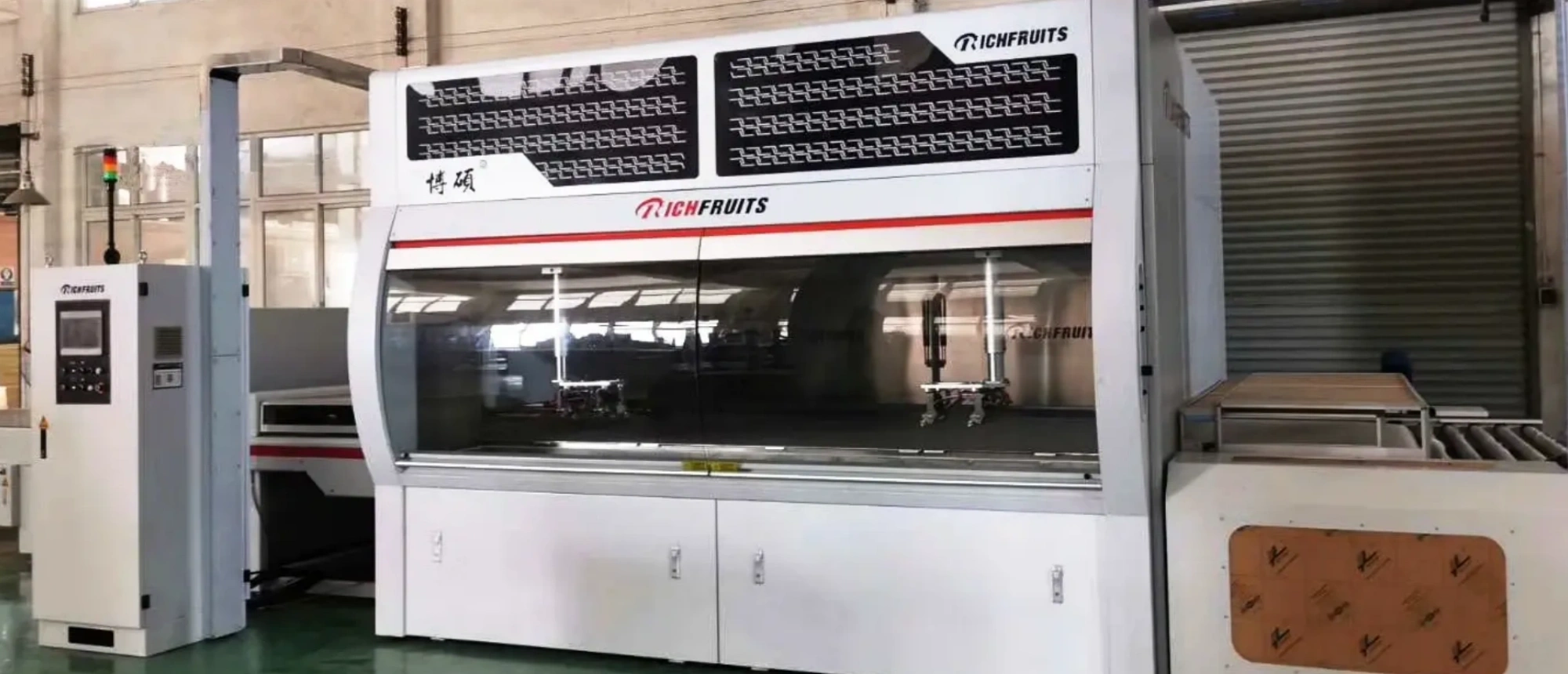

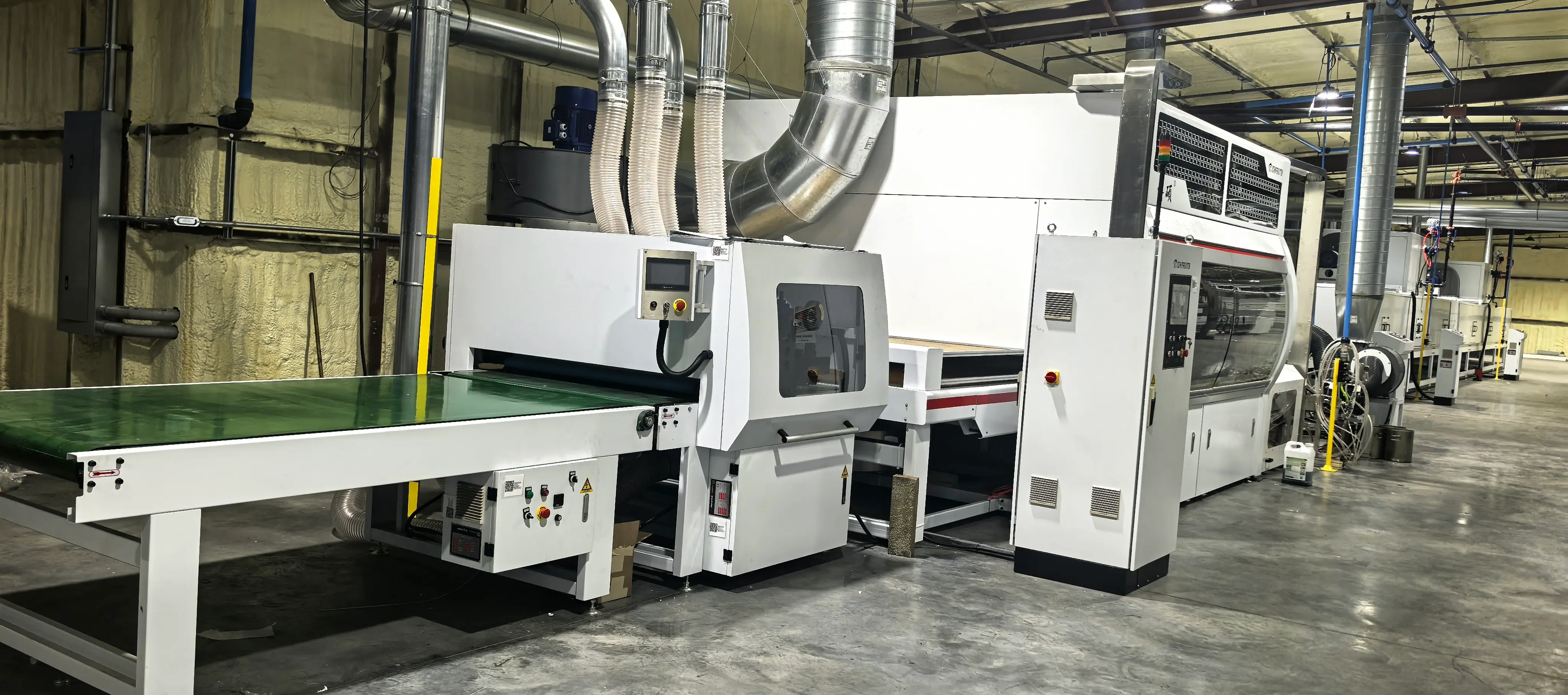

Automatic spraying line with an enclosed spray booth and controlled airflow
In a flat-panel spray coating machine, panels travel through the booth on a continuous belt. Paint sprayed around the panel lands on that belt. If it remains there, it can dry, transfer to the back of subsequent panels, interfere with tracking, and shorten belt life.
A continuous cleaning sequence commonly includes:
A non-stick belt carries the parts through the spray area.
A scraper or counter-rotating roller removes wet coating.
A controlled amount of compatible cleaning liquid loosens residue.
A finishing blade removes remaining liquid before the belt returns.
The cleaning medium must match the coating. Water-based paint does not automatically mean that unrestricted water cleaning is acceptable. The coating supplier’s instructions, corrosion risk, wastewater handling, and the machine manufacturer’s approved process must all be considered.
Excessive scraper pressure is not a shortcut to better cleaning. It can accelerate blade and belt wear. Insufficient pressure leaves a visible film. Operators should look for streaks after the cleaning unit, dried deposits on rollers, damaged blade edges, abnormal solvent consumption, and paint marks on the underside of panels.
Paint removed from the conveyor enters a collection tray or recovery tank. It may then pass through a screen or filter to remove dirt, cured particles, and other contaminants.
However, paint collection is not the same as paint reuse.
Before recovered material returns to production, the operator should verify:
Color purity
Viscosity
Solids content
Contamination level
Remaining pot life
Compatibility with fresh coating
The coating supplier’s reuse limits
Single-color, single-component production usually offers a simpler recovery opportunity than frequent color changes or two-component coatings. Material collected after its pot life has expired should not be returned merely because it still appears liquid.
A controlled trial is the safest approach. Record the quantity recovered, filter it according to the approved process, mix only the permitted proportion with fresh material, and inspect adhesion, appearance, curing, and color consistency before full production.
System | What it handles | Primary purpose | Key check |
|---|---|---|---|
Spray control | Paint before it is released | Prevent avoidable overspray | Trigger timing and spray width |
Air filtration | Airborne paint droplets | Remove mist from process air | Airflow and filter pressure |
Belt cleaning | Wet paint on the conveyor | Prevent buildup and backside contamination | Blades, rollers, and cleaning liquid |
Paint recovery | Collected coating | Reduce usable material loss | Purity, viscosity, and pot life |
A machine needs all four functions to provide reliable overspray control. Improving only one may simply move the problem elsewhere.
Ask the supplier to demonstrate the system with your own workpieces and coating whenever possible. During the test, record:
Coating supplied to the machine
Coating deposited on finished parts
Reusable coating recovered
Waste coating and contaminated cleaning liquid
Filter pressure before and after the run
Cleaning-liquid consumption per shift
Color-change and end-of-shift cleaning time
Rejects caused by dirt, uneven film, or backside contamination
Use a simple mass-balance check:
Unaccounted paint loss = paint supplied − paint on acceptable parts − reusable paint recovered − measured waste
This test is more useful than an isolated “paint-saving percentage” because it shows where material actually goes.
“A recovery system captures all overspray.”
Some material reaches filters, cleaning liquid, booth surfaces, or waste containers and may not be reusable.
“Recovered paint can go directly back into the pump.”
Unfiltered or chemically changed coating can block nozzles and create visible defects.
“Filters only need attention when airflow stops.”
Performance can deteriorate well before complete blockage. Pressure monitoring and scheduled inspection are more reliable.
“Higher exhaust airflow always improves control.”
Incorrect airflow may disturb the spray pattern and increase coating loss. The target is stable, engineered airflow—not simply the highest fan speed.
Common causes include poor gun triggering, excessive atomizing pressure, incorrect gun distance, an oversized spray fan, worn nozzles, inaccurate panel detection, and unbalanced booth airflow.
It may recover paint removed from the conveyor, but reuse depends on coating chemistry, contamination, color, pot life, and the approved production process.
Operators should perform a visual check each shift and inspect the recovery roller, scraper blades, cleaning-liquid flow, and collection area whenever residue or streaking appears.
No. Overspray filters primarily capture liquid or solid paint particles. Solvent vapours require a separately evaluated ventilation and emission-control strategy.
The best automated spray painting system is not necessarily the one with the largest recovery tank or the strongest exhaust fan. It is the system that prevents unnecessary spraying, maintains stable airflow, keeps the conveyor clean, and produces verifiable material and maintenance savings with your coating.
