Yes—on the right flat solid-wood workpiece, roller coating can be developed into a premium-grade finish process. But the result does not come from choosing a roller coater and expecting the machine to create the appearance by itself. It comes from defining the finish target first, preparing the wood consistently, matching the coating pass to its job, controlling transfer at the roller, and protecting the surface through leveling, drying or curing, and handling.
For a flat solid-wood panel, roller coating is a credible route when the panel can maintain predictable contact across the working width and when the target can be checked on representative production material. If the part is bowed, heavily profiled, deeply recessed, or inconsistent in thickness, a roller may not contact every area in the same way. That is a workpiece and process question before it is an equipment question.
The phrase “premium-grade” should become a practical finish brief before a machine or line is discussed. The brief can identify the visual result, the representative wood material, the coating system, and the acceptable variation. It should distinguish the desired visible finish from assumptions about how to create it.
For example, visible grain may be important in one product while complete coverage is more important in another. A high-gloss target raises different questions from a super-matte or textured surface. The task of a stain differs from the task of a filler, sealer, primer, or topcoat. Each pass should have one clear function in the overall finish structure.
This prevents a common mistake: treating more rollers, a higher line speed, or a more complex configuration as proof of a better surface. Those are process choices. Their value depends on the coating task, the panel, and the surface result the process must produce.
The roller can only transfer coating to the surface that enters the machine. Solid wood can show differences in grain, pores, local repair areas, sanding response, and absorption. Those differences may remain visible even when the wet coating appears broadly even.
Preparation should therefore be evaluated as part of the finishing process. Look at panel flatness, thickness consistency, sanding consistency, dust removal, local contamination, and areas that may accept coating differently. The purpose is not to make natural wood look identical in every case. It is to identify which variation belongs to the material and which variation can be managed through a defined surface-preparation and coating sequence.
Roll coating can be used for different tasks, including staining, filling, sealing, priming, and topcoating. These jobs should not be treated as interchangeable. A filler is intended to address pores and local depressions. A primer may create a more uniform base and a sanding surface. A topcoat creates the final visible layer.
When a finish target is difficult to achieve, first ask which pass owns the result. If the issue begins with absorption or an incomplete base, changing the final topcoat pass may not solve it. If the final appearance changes only after a downstream stage, the original wet film may not be the root cause. Defining one job per pass makes the trial more understandable and avoids changing several unrelated parts of the process at once.
Roller coating is a controlled metering and transfer process. The coating supplied to the roller, the film metered on the roller, and the coating that remains on the panel are related but not identical. Panel condition, coating behavior, roller contact, speed relationships, and surface cleanliness all affect the transfer result.

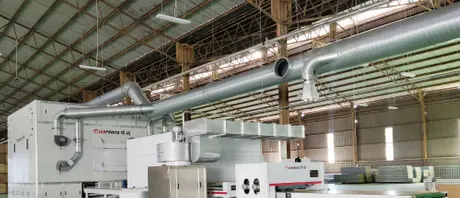

The process continues after the panel leaves the application roll. The wet film may need time to level. The selected drying or curing stage must suit the coating system. Handling between stages must avoid marking a surface that has not reached its intended condition. A visually demanding finish should therefore be assessed from prepared panel through final inspection, not only at the coater exit.
For the wider process sequence, see how roll coating works on flat panels.

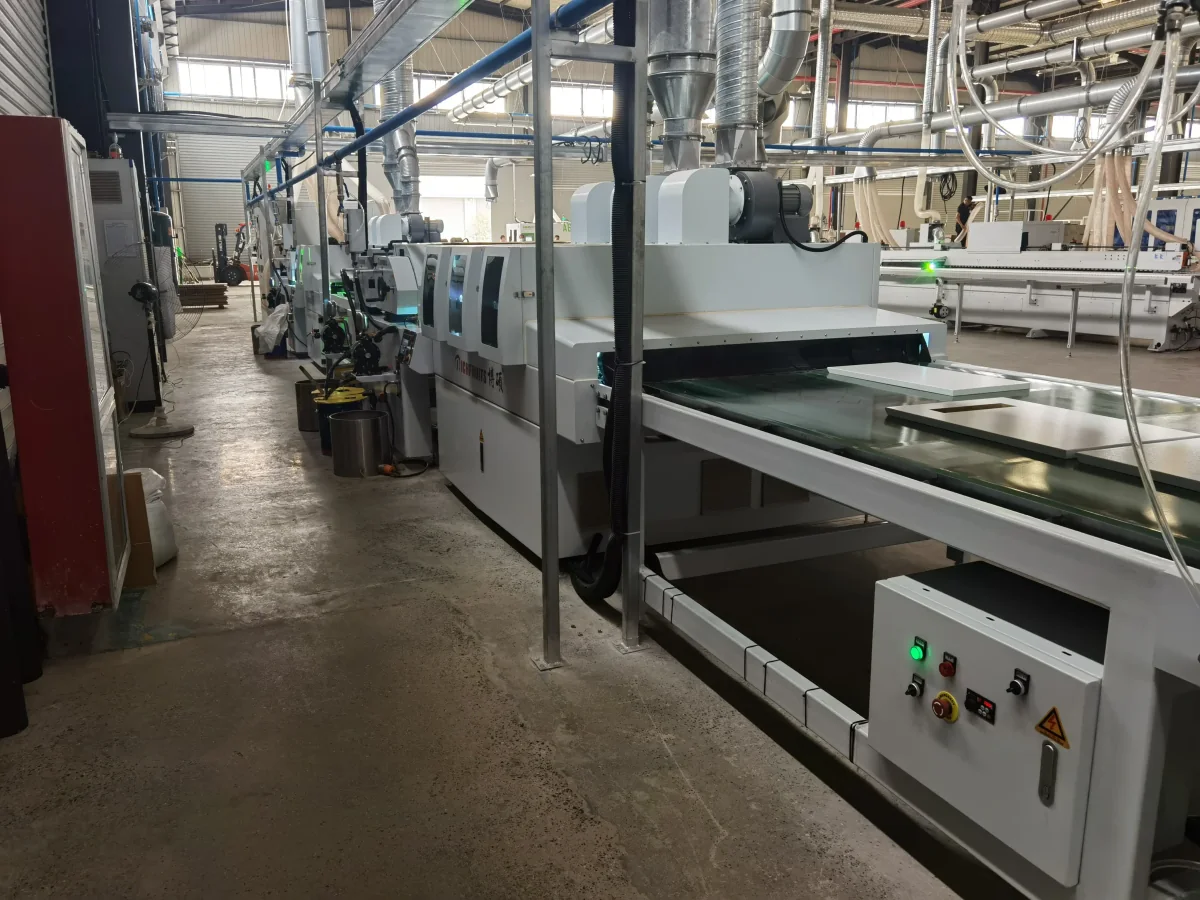

Cooling, conveying, turning, stacking, and inspection can affect whether a trial result survives as a production result. A panel that meets the visual target immediately after coating is not yet proof that the full sequence preserves it. The trial should include the actual handling conditions that matter to the product, especially where a finished face contacts a transfer point or another panel.
The purpose of a trial is not to create one attractive panel. It is to establish conditions that can be understood and repeated. Use representative panels from the intended production material, keep the finish target visible during assessment, and record the preparation and coating conditions that produced the result.
Change one main variable at a time. When viscosity, contact, speed, and downstream conditions are adjusted simultaneously, an acceptable sample may be produced without showing why it worked. A controlled sequence makes it possible to identify whether the improvement came from the panel, the coating condition, transfer, or the downstream stage.
An accepted trial should be associated with the panel condition, the coating state, the relevant transfer conditions, the process sequence, and the inspection result. The output should become an operating window rather than one “magic” machine position. Operators need to understand what is held stable, what can be adjusted, and how the surface will be checked after each relevant stage.
The review should include more than an initial visual impression. Compare panels under the same agreed viewing conditions and keep the panel orientation identifiable throughout the trial. Where the target includes grain visibility, gloss consistency, coverage, or a particular tactile effect, record the observation at the stage where it becomes meaningful. This gives the team a shared basis for deciding whether the next action is another controlled trial, a change to the process sequence, or a line-level discussion.
The same record also prevents a successful sample from being overgeneralized. A result on one representative board is useful only when the relevant panel condition and coating process can be repeated. When the material or intended appearance changes materially, reopen the affected trial question rather than assuming that the prior recipe applies unchanged.
If a visible issue follows a fixed side, center area, repeating band, or production drift pattern, do not turn this article into a complete defect tree. Use the dedicated guide to diagnose uneven roller coating thickness and separate a film-transfer pattern from a finish change that emerges only downstream.

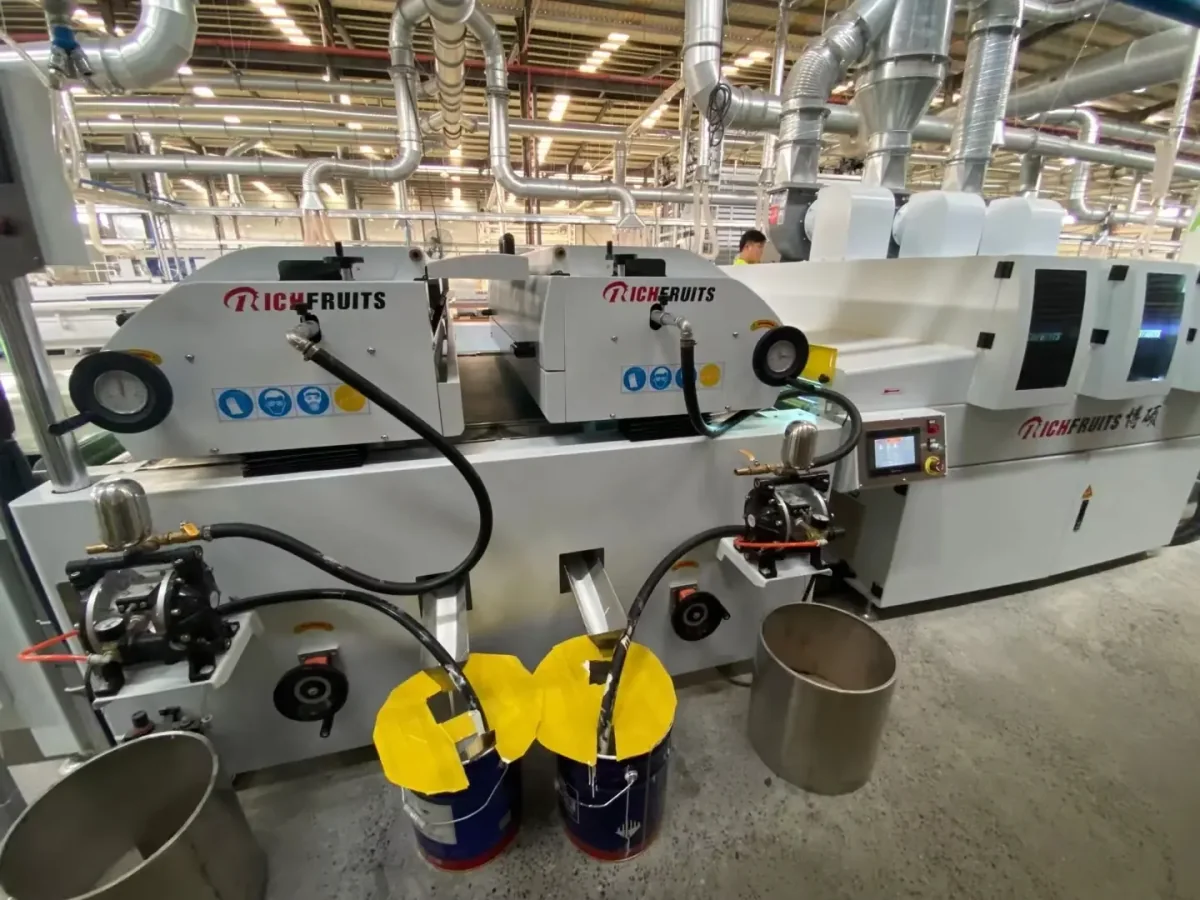

Direct and reverse roll coating are different transfer strategies. Direct coating provides a more straightforward transfer relationship. Reverse coating introduces a different wiping and shearing effect that may be useful when the coating task needs more control of wet-film distribution or excess material.
Neither approach is automatically the premium option. Both still depend on stable panels, suitable coating behavior, controlled contact, and validation with the actual finish target. The right question is what the coating pass must accomplish—not which configuration sounds more advanced.
For the detailed comparison, see direct vs reverse roll coating for wood panels.
Once representative trials show a repeatable path toward the desired appearance, the next discussion is not simply about adding a coater. It is about the process functions the finish requires. Depending on the validated sequence, the line may need panel cleaning, filling or priming, coating, leveling, drying or curing, sanding, and controlled conveying or handling.
The line should be configured around the proven process rather than selected first and justified later. This keeps the focus on the conditions that produced an acceptable panel and on the stages required to preserve that result in continuous production.
Explore Roller Coating Line when the finish target, representative workpiece, and required process functions are ready for a line-level discussion.
Roller coating can support a premium-grade wood finish for suitable flat solid-wood panels. The credible answer is not a blanket yes for every wood product. It is a process-based yes when the finish target is defined, the panel is prepared consistently, each coating pass has a clear job, the wet film and downstream stages are validated together, and the accepted sample can be repeated.
The best next step is to turn the appearance target into a representative trial plan before finalizing equipment or line scope.
If you are evaluating a premium wood finish for flat solid-wood panels, share representative panels, the coating system, the intended appearance, and the current process sequence. Richfruits can discuss which coating and adjacent process functions should be evaluated together.
It can be evaluated for a grain-visible finish when the coating system, surface preparation, and target appearance are defined together. The trial should compare representative panels rather than assume that one coating method will preserve the same grain appearance on every wood surface.
No. Reverse coating is a different transfer strategy, not an automatic quality upgrade. Its usefulness depends on the coating task, desired wet-film behavior, panel condition, and verified trial result.
Evaluate another method when important areas of the workpiece cannot maintain predictable roller contact, or when the defined finish target cannot be validated through the flat-panel roller-coating process.
