Views: 7 Author: Site Editor Publish Time: 2026-07-30 Origin: Site
Running short of coating during a batch can stop production, disrupt viscosity or colour consistency, and delay delivery. Ordering too much creates unnecessary inventory, expired material and inaccurate job costing. With more than two decades of experience in automated surface-finishing integration, Richfruits treats coating consumption as a production-control figure rather than a simple purchasing estimate.
For wood doors, furniture panels, MDF, plywood and other flat materials, the estimate should include both the required film and losses from startup, testing, changeovers and rejected panels. This guide explains how to calculate roller coating consumption from panel area, coat weight or film thickness, then convert the theoretical result into the quantity that should actually be prepared for a batch.
Start with the total coated area and multiply it by the target wet coat weight. When the target is dry coat weight or dry film thickness, first convert it to wet material using the correct solids value. Adjust the net amount for actual utilization, fixed batch losses and expected rejects, then convert between kilograms and litres with the ready-to-use coating density. After production, compare the estimate with measured consumption and update the loss factors for that specific coating, panel, machine setup and batch size.
Record panel length and width in metres, production quantity, and whether one or both faces are coated.
Total Coated Area (m²)
= Panel Length × Panel Width × Quantity × Coated Sides
For a partially coated panel, multiply by the coated-area percentage. Add edge area only when the process being calculated coats the edges. For double-sided work, count two coated faces even when both sides pass through the same line in separate runs.
Also define whether quantity means panels entering the line or good panels required. Material planning should normally begin with good output because rejected panels consume coating too.
Use the same control basis as production:
Wet coat weight in g/m²
Dry coat weight in g/m²
Wet film thickness, or WFT
Dry film thickness, or DFT
When operators verify transfer by weighing test panels, g/m² is usually the most direct basis. When cured film build controls performance, DFT may be more suitable. Do not convert mass to thickness without the necessary coating data.
Use data for the ready-to-use mixture:
Mass solids and volume solids
Density in kg/L
Dilution or mixing ratio
Actual utilization
Fixed startup or changeover loss
Expected first-pass yield
If water, solvent or hardener is added, the mixed coating may have different solids and density from the base product.
No universal utilization figure should be assigned to a Richfruits roller coater or any other machine. It depends on the coating, roller arrangement, circulation system, batch size, cleaning method and recovery rules.
Use this method when production is controlled in wet g/m².
Net Wet Coating Mass (kg)
= Total Coated Area (m²)
× Wet Coat Weight (g/m²)
÷ 1,000
This is the amount applied to the planned area. It does not include coating left in the trough, retained on rollers, used on test panels or consumed by rejected work.
If different zones have different coat weights, calculate them separately and add the results.
Convert the dry target with the mass solids fraction of the ready-to-use coating.
Wet Coat Weight
= Dry Coat Weight ÷ Mass Solids Fraction
Then calculate:
Net Wet Coating Mass (kg)
= Area × Wet Coat Weight ÷ 1,000
Enter 60% mass solids as 0.60. A target of 48 g/m² dry therefore requires a theoretical 80 g/m² wet.
When the specification is dry film thickness, use volume solids.
WFT = DFT ÷ Volume Solids Fraction
Theoretical Coating Volume (L)
= Area (m²) × DFT (µm)
÷ [1,000 × Volume Solids Fraction]
Convert litres to kilograms with the mixed coating density:
Theoretical Coating Mass (kg)
= Coating Volume (L) × Density (kg/L)
The result should still be checked against coat-weight or film measurements on trial panels.
Mass solids describes dry material remaining by weight. Volume solids describes dry film remaining by volume.
Use mass solids to convert dry grams to wet grams. Use volume solids to convert DFT to WFT or wet litres. Density connects mass and volume, but it does not make the two solids values interchangeable.
When one value is unavailable, obtain it from the coating supplier or an approved test rather than substituting the other value.
Production requires more than the theoretical film amount because not everything issued reaches good panels.
Process Material Demand
= Net Applied Coating ÷ Utilization Factor
Define the factor clearly. If fixed startup losses are added separately, utilization should describe variable process performance only. A factor of 0.92 means 92% of the variable material issued becomes coating on processed panels under the stated conditions.
Do not copy a factor from another factory. Batch size, coating return, roller cleaning and operator practice can change the result.
Fixed losses occur whenever the line is filled, sampled, changed over or cleaned. They may include:
Initial filling
Roller and trough residue
Setup and approval panels
Laboratory samples
Colour or material changeover
Non-recoverable cleaning material
Gross Batch Requirement
= Net Applied Coating ÷ Utilization Factor
+ Fixed Batch Loss
Fixed loss matters most on short runs because it is spread across fewer square metres.
When the target is good output, include expected rejected production:
Gross Batch Requirement
= Net Coating for Good Output
÷ (Utilization Factor × First-Pass Yield)
+ Fixed Batch Loss
A 2% reject rate gives a yield of 0.98. Do not add another reject allowance after using this formula, or the same loss will be counted twice.
Collected coating is reusable only when contamination, pot life, viscosity, colour and quality rules allow it to return to production. “Collected” does not automatically mean “recoverable.”
For a multi-station Richfruits line, calculate putty, base coat, topcoat and back-coating stations separately because their materials and loss factors may differ.

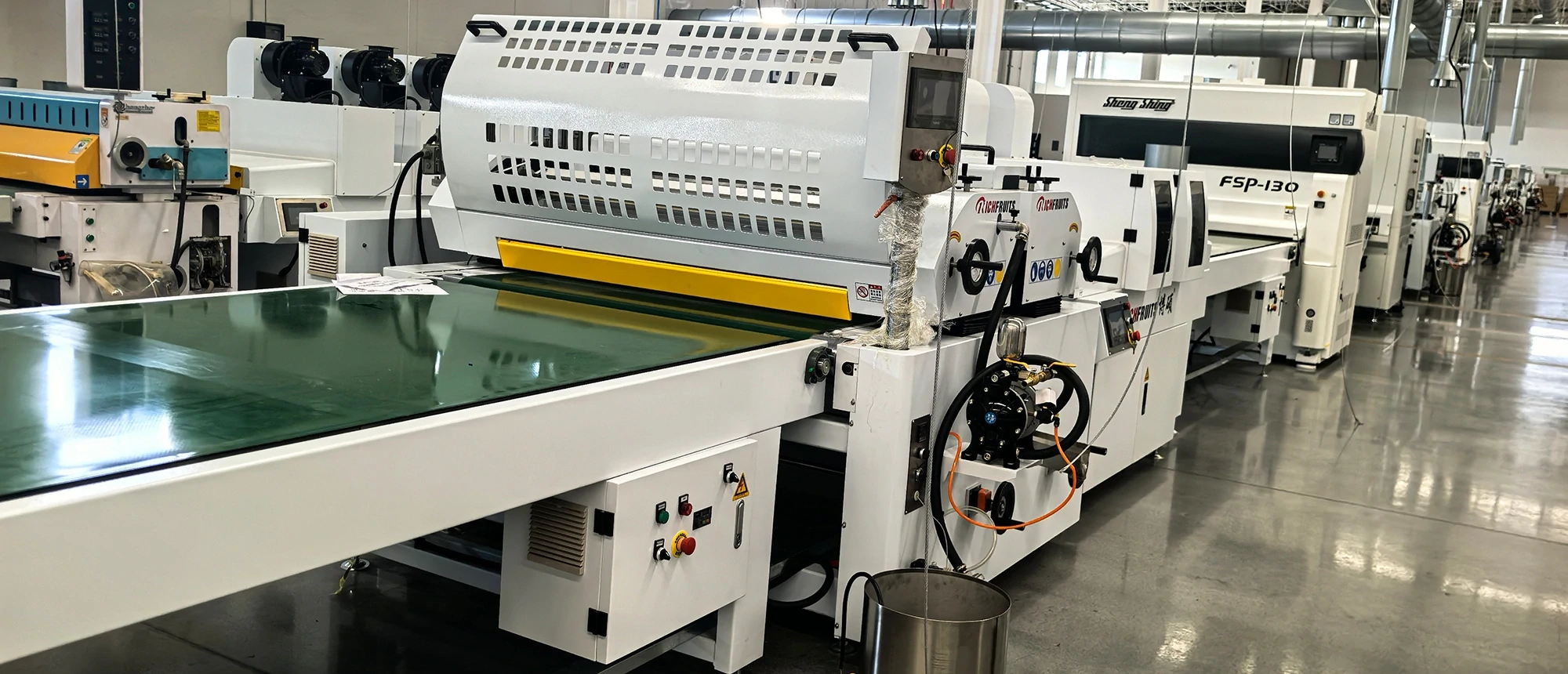

Richfruits roller coater machine
The following numbers are calculation examples, not consumption data for any specific machine or coating.
A factory needs 500 good panels measuring 1.22 m × 2.44 m, coated on one face. The wet target is 80 g/m². Variable utilization is 92%, first-pass yield is 98%, fixed loss is 8 kg, and mixed coating density is 1.10 kg/L.
Area
= 1.22 × 2.44 × 500
= 1,488.4 m²
Net Wet Coating Mass
= 1,488.4 × 80 ÷ 1,000
= 119.1 kg
The good panels require approximately 119.1 kg as applied wet film.
Gross Batch Requirement
= 119.1 ÷ (0.92 × 0.98) + 8
= 140.1 kg
The batch should therefore be prepared with about 140.1 kg before applying the factory’s separate safety-stock policy.
Litres per Batch
= 140.1 ÷ 1.10
= 127.4 L
For two batches per shift:
Material per Shift
= 140.1 × 2
= 280.2 kg
At 22 shifts per month:
Monthly Requirement
= 280.2 × 22
= 6,164.4 kg
With 25 kg containers, one batch needs access to six containers, or 150 kg. Monthly purchasing should be rounded after considering opening stock, package size, reserve level and delivery schedule.
Perform a material balance in one consistent unit:
Actual Material Consumed
= Starting Material
+ Material Added
− Final Recoverable Material
Do not subtract washings, expired mixed coating or residue that cannot be reused.
Richfruits roller-coating systems may integrate feeding, brushing, conveying, levelling and drying. Measure consumption at each application station rather than estimating it from total line operating time.
Actual Consumption (g/m²)
= Actual Material Consumed (kg) × 1,000
÷ Good Coated Area (m²)
Use good coated area, not every panel that passed through the machine. Otherwise, higher rejects can make consumption appear normal while material use per saleable square metre rises.
A persistent difference from the estimate may indicate an inaccurate utilization factor, excessive setup loss, coat-weight drift, more rejects, poor recovery or recording errors.
Coating Cost per m²
= Actual Consumption (kg/m²)
× Coating Price per kg
The same data supports cost per panel, shift preparation, monthly purchasing, reorder points and safety stock. Calculate every coating layer separately and then sum them for the complete finish.
A stable consumption baseline also reveals abnormalities. When actual g/m² leaves the approved range, investigate coat weight, viscosity, rejects, leakage, recovery and cleaning before the variance becomes a purchasing problem.
Accurate roller coating consumption is not calculated by area and g/m² alone. The estimate must use the correct wet or dry basis, the appropriate solids value, ready-to-use density, actual utilization, fixed batch loss, expected yield and genuinely recoverable material.
Use the formulas to prepare the first batch, then replace assumptions with measured production data. The most reliable figure is specific to one coating, panel, line configuration and operating standard.
For a wet target, theoretical consumption per square metre is the specified g/m². Actual consumption is material consumed divided by good coated area. Add utilization and fixed losses when calculating the amount to prepare.
Use the basis tied to the product requirement. g/m² is practical for weighing applied material, while DFT is useful when cured film build controls performance.
Mass solids is used for dry-to-wet mass calculations. Volume solids is used for DFT and WFT calculations. They are not interchangeable.
Actual demand also includes variable process loss, startup filling, roller and trough residue, test panels, rejects, changeover and non-recoverable material.
Yes. Putty, primer, topcoat and back-coating stations may use different materials, targets, solids, densities and loss factors. Calculate each independently before combining total cost or purchasing demand.
