Complete Automated Spray Systems for Wood Products: A Line-Planning and RFQ Guide

Buying an automatic spray machine is relatively straightforward. Building a finishing line that consistently delivers the required output, surface quality, and operating cost is much more difficult.

The spray machine is only one part of the process. Dust removal, workpiece detection, paint delivery, overspray control, conveying, flash-off, drying, curing, sanding, part handling, and production controls must operate at compatible speeds. If one section is undersized, the entire line will run below its intended capacity.

This is why a successful project should begin with the product and coating process—not with a machine catalog.

This guide explains how manufacturers of doors, cabinets, furniture, MDF panels, plywood, decorative boards, and other wood products can plan automated spray systems, estimate their capacity, compare configurations, and prepare a useful request for quotation.

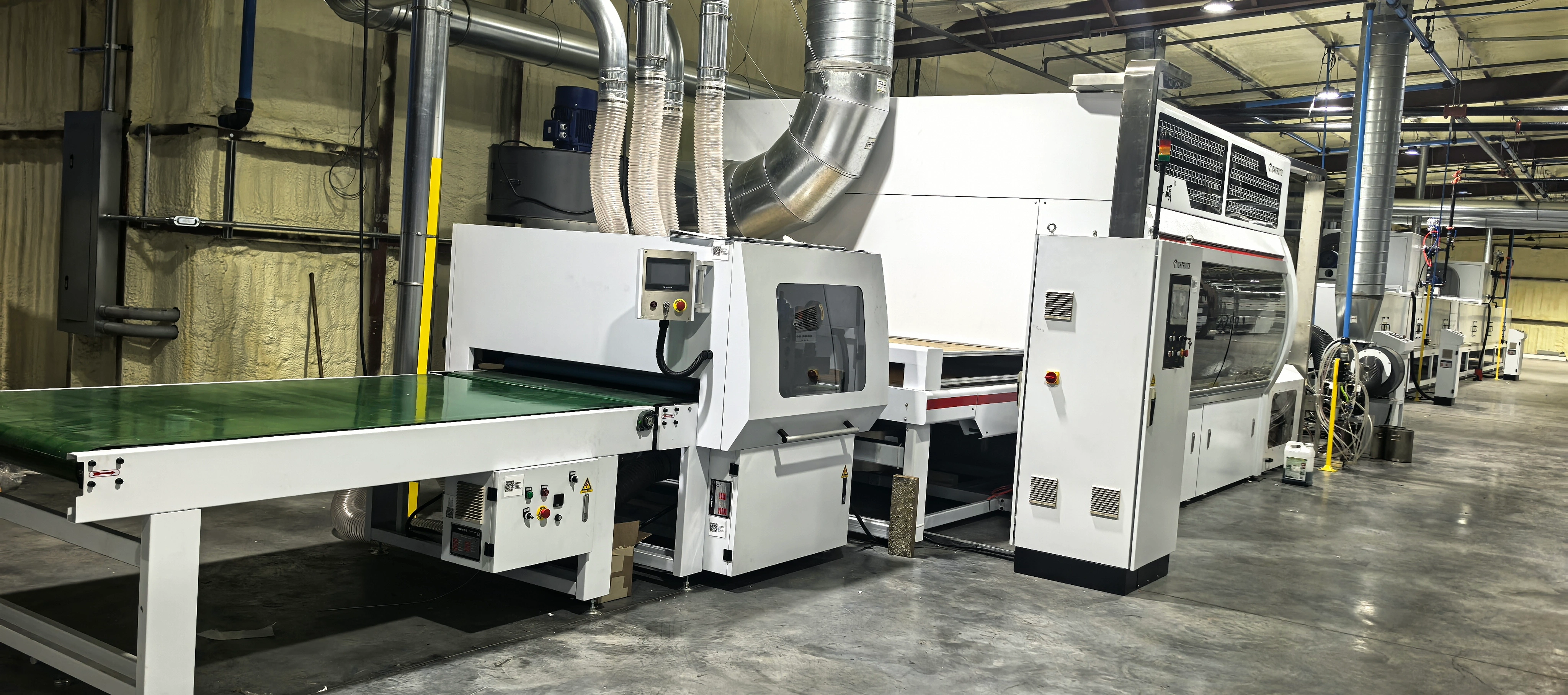

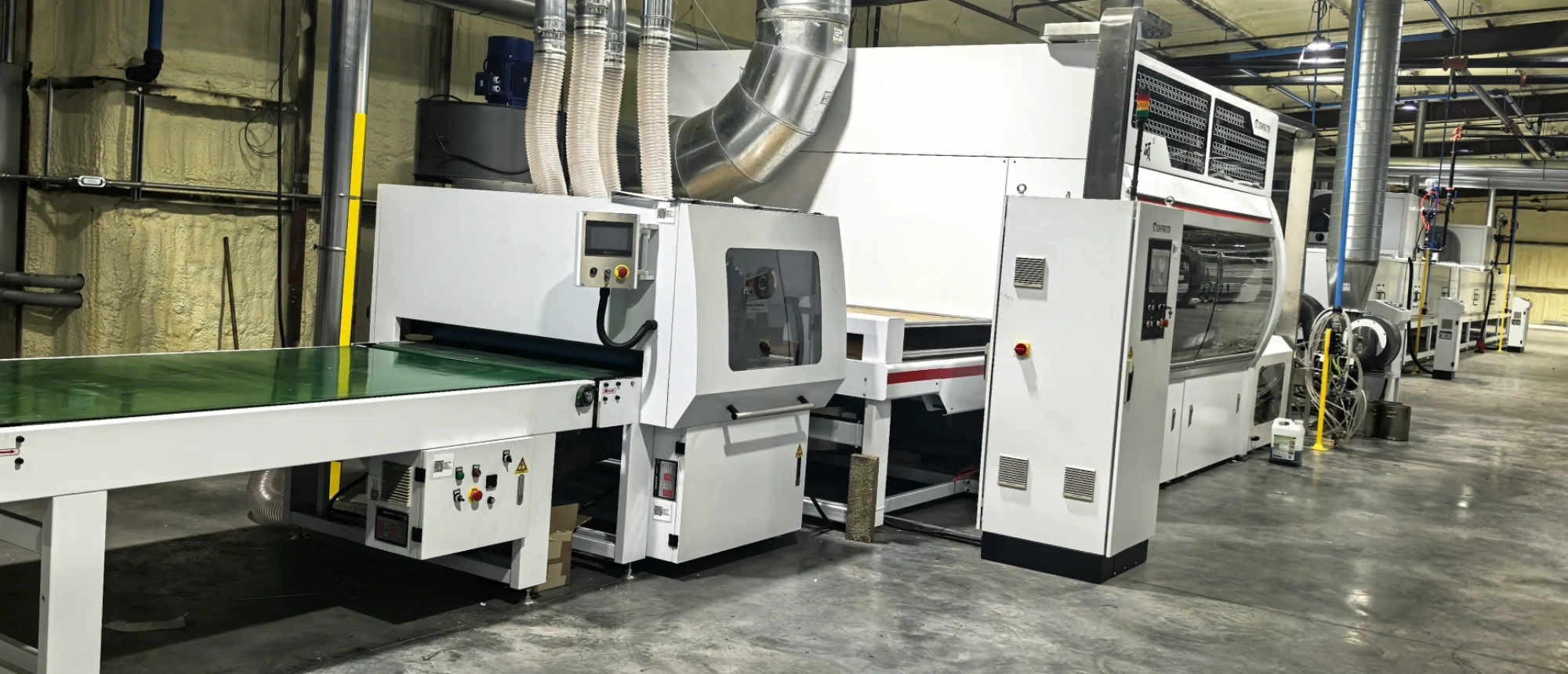

Complete automated spray system for wood product finishing

What Is a Complete Automated Spray System?

A complete automated spray system is an integrated finishing line that moves a workpiece through preparation, paint application, overspray control, flash-off, drying or curing, and final handling under coordinated process controls.

Depending on the product and coating, a complete line may include:

• Automatic loading and unloading

• Brush, vacuum, or ionized-air dust cleaning

• Workpiece scanning and size detection

• A reciprocating, linear, or robotic spray machine

• Paint pumps, filters, regulators, mixing, and circulation

• Dry-filter, water-wash, or paint-recovery systems

• Flash-off conveyors

• Hot-air, infrared, UV, or UV-LED curing equipment

• Sanding stations between coats

• Part turners or return conveyors

• PLC recipes and production monitoring

• Ventilation, make-up air, and environmental controls

A spray machine applies coating. A complete line controls the conditions around that application so the result can be repeated for hundreds or thousands of parts.

That distinction matters when comparing quotations. A low equipment price may exclude ventilation, paint delivery, conveyor connections, curing, installation, testing, or controls that are essential to production.

Start with the Workpiece, Not the Machine

The first question should not be, “Which spray machine should we buy?”

It should be, “What exactly must this line coat every day?”

A supplier cannot design a reliable line from a description such as “standard cabinet doors.” The RFQ should define the complete production range.

Flat panels

Flat-panel spray systems are commonly used for:

• Cabinet doors

• Interior doors

• MDF panels

• Table tops

• Furniture panels

• Decorative boards

• Flat wooden components

These parts can usually travel horizontally on a conveyor. Important design questions include whether the face, four edges, and back require coating; whether belt contact is acceptable; and whether recessed or raised details must be covered.

Linear products

Moldings, skirting boards, window components, and door frames often need several surfaces coated at the same time. Fixed multi-angle guns or linear spraying arrangements may be more efficient than a wide reciprocating system.

The RFQ should identify the narrowest and widest profile, feed orientation, required sides, profile depth, and whether parts can rotate during spraying.

Shaped and three-dimensional parts

Chair components, assembled furniture, carved doors, frames, and irregular products create different challenges. A two-dimensional scanner may detect their outline but cannot always identify recesses, internal edges, or changing surface angles.

These products may require three-dimensional vision, flexible gun-path control, a multi-axis robot, rotating fixtures, or a combination of automatic spraying and manual touch-up.

Build a workpiece envelope

For each product family, provide:

• Minimum, maximum, and most common length

• Minimum, maximum, and most common width

• Thickness or three-dimensional height

• Part weight

• Substrate

• Surfaces and edges to be coated

• Holes, grooves, raised areas, and recesses

• Acceptable conveyor or fixture contact points

• Current finish defects

• Drawings and clear photographs

Maximum dimensions determine whether the part fits. Common dimensions determine whether the line will be efficient.

A line designed only around an occasional maximum-size part may become unnecessarily large and expensive. A better RFQ shows the supplier what represents 70–80% of normal production and identifies the exceptional products separately.

Define the Coating Process

An automatic spray painting machine for wood cannot be selected independently of the coating material.

Water-based coatings, UV coatings, PU, NC, AC, stains, sealers, primers, and topcoats behave differently. Their viscosity, solids content, pot life, atomization requirements, flash-off time, and curing method influence almost every part of the line.

For each coat, provide:

• Coating type and technical data sheet

• One-component, two-component, or three-component formulation

• Mixing ratio

• Working viscosity and measurement temperature

• Solids content

• Pot life after mixing

• Recommended wet-film thickness

• Target dry-film thickness

• Flash-off time

• Recoat window

• Drying or curing temperature

• Recommended spray pressure and nozzle range

• Cleaning material and procedure

• Required finish, color, and gloss

A supplier should also know the full coating sequence. A process requiring stain, sealer, intermediate sanding, and topcoat is not one spray operation. It is a coordinated production route with multiple application and waiting stages.

Involve the coating supplier during process confirmation. The equipment supplier can determine how to deliver and apply the coating, but the coating manufacturer should confirm its viscosity range, film build, curing conditions, and substrate preparation.

Select the Right Spray Technology

No single spray technology is best for every wood product.

The correct choice balances finish quality, application rate, coating viscosity, transfer efficiency, compressed-air demand, maintenance, and the geometry of the workpiece.

Published application data for industrial finishing shows that typical transfer efficiency, pressure, coating flow, and compressed-air requirements vary substantially by technology. These values should be treated as comparative ranges, not guaranteed production results. Actual performance depends on part geometry, gun distance, spray overlap, pressure settings, coating properties, booth airflow, and maintenance.

The best way to choose is to test the customer’s actual coating on representative workpieces.

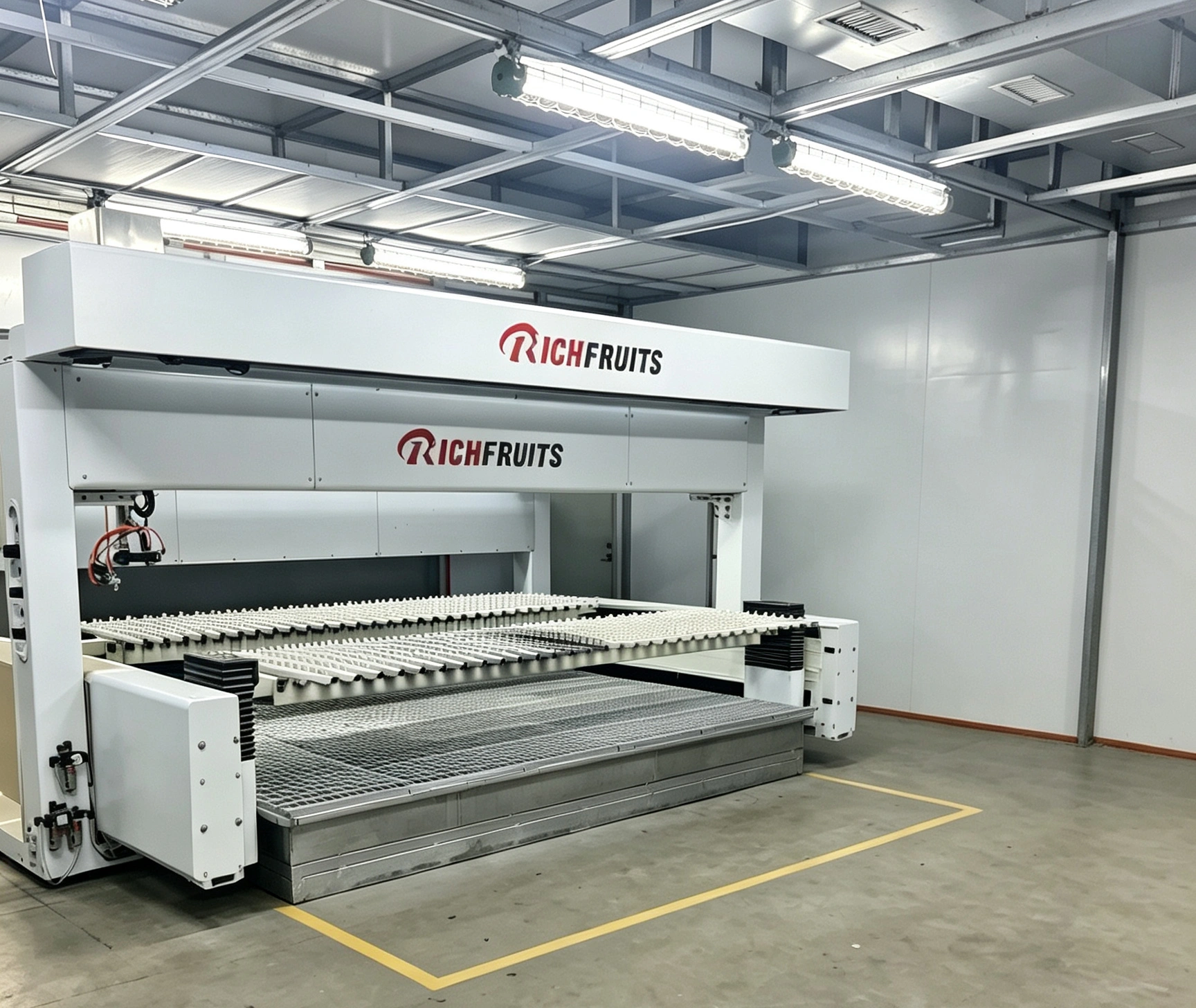

Automatic spray painting machine for wood panels and furniture components

Calculate the Required Production Capacity

Machine “maximum speed” is not the same as line capacity.

A useful calculation begins with the number of acceptable finished parts required per shift.

Step 1: Adjust the target for available production time

Use:

Required hourly output = Daily output target ÷ Available production hours ÷ Target OEE

Suppose a factory needs 1,200 cabinet doors per eight-hour shift and plans around an overall equipment effectiveness of 75%:

1,200 ÷ 8 ÷ 0.75 = 200 doors per hour

The line must therefore be capable of producing approximately 200 acceptable doors per hour under the planned product mix—not simply moving 200 objects through the spray machine.

Step 2: Convert output into conveyor speed

For a single-lane flat-panel line:

Conveyor speed = Workpiece pitch × Required pieces per minute

Workpiece pitch equals the part length in the conveying direction plus the required gap.

If each part occupies 0.8 m of conveyor pitch and the target is 3.33 parts per minute:

0.8 × 3.33 = 2.66 m/min

This is an initial estimate. The final speed must be checked against scanner response, spray width, gun travel, coating flow, flash-off, drying, loading, and unloading.

Step 3: Check the coating demand

Estimate the coated area per hour and calculate the theoretical wet coating demand.

A simplified approach is:

Wet coating volume = Coated area × Target wet-film thickness

If the process requires 100 microns of wet film, that equals 0.1 liter per square meter before allowances for transfer loss, recovery, edge spraying, cleaning, and color changes.

Do not calculate consumption from machine speed alone. Include:

• Front surface

• Back surface, if applicable

• All coated edges

• Overspray

• Recovered and reusable coating

• Coating remaining in pumps and hoses

• Material used during setup and cleaning

• Rejects and rework

Step 4: Identify the real bottleneck

The slowest required process determines sustainable output.

Common bottlenecks include:

• Manual loading

• Dust cleaning

• Spray gun flow capacity

• Flash-off time

• Oven residence time

• UV dose

• Cooling before stacking

• Intermediate sanding

• Color change

• Manual inspection

• Unloading and packaging

A complete spray system should therefore be balanced around the coating process rather than designed around the highest advertised conveyor speed.

Calculate Flash-Off and Drying Length

A frequent planning error is to purchase a fast spray machine and connect it to an undersized drying section.

The basic relationship is:

Required process length = Conveyor speed × Required residence time

If the conveyor runs at 3 m/min and the coating needs four minutes of flash-off, the theoretical active path is:

3 × 4 = 12 m

Additional length may be required for entry, exit, transfer, temperature stabilization, safety spacing, and product accumulation.

The same method applies to hot-air or infrared drying, but time alone is not sufficient. Confirm:

• Required air temperature

• Actual workpiece surface temperature

• Air velocity

• Humidity

• Exhaust rate

• Solvent or water release

• Maximum temperature the substrate can tolerate

• Time before stacking or sanding

For UV curing, verify coating chemistry, lamp or LED wavelength, energy dose, line speed, lamp-to-surface distance, and whether recessed areas receive enough energy.

The oven setpoint is not proof that the coating has cured. Acceptance should be based on the workpiece and finished film.

Plan the Line Module by Module

1. Surface preparation

Automatic spraying cannot hide sanding dust, oil, silicone contamination, unstable substrate moisture, or poor preparation. Automation may reproduce the same defect more consistently and at a higher speed.

Depending on the product, preparation can include sanding, brushing, vacuum extraction, ionized air, and tack-off. Dust extraction from upstream sanding should be planned separately from spray-booth ventilation.

2. Workpiece detection and gun triggering

A scanning system can detect workpiece length and width, trigger guns only where coating is required, and reduce unnecessary spraying between parts.

For shaped products, three-dimensional vision and programmed gun paths can help identify outer profiles, grooves, raised features, internal edges, and empty areas. The system should stop spraying over open spaces whenever practical.

Ask the supplier to demonstrate detection using the smallest, darkest, most reflective, and most complex products in the proposed production range.

3. Automatic spray application

A reciprocating automatic spray machine can coat the face and four edges of doors, cabinet panels, furniture boards, and similar workpieces. A typical high-flexibility configuration may use independent gun control, recipe-based settings, automatic workpiece detection, and adjustable spray width.

Richfruits Finishing develops automatic spraying equipment for UV, PU, AC, NC, and water-based coating applications. Available system concepts include dry filtration, water filtration, flexible color-change configurations, and three-dimensional vision options.

Selection should be based on a sample test rather than coating compatibility in name only.

4. Paint supply and mixing

The paint delivery system may include:

• Pressure tanks or pumps

• Filters and regulators

• Circulation lines

• Agitation

• Temperature control

• Automatic ratio control for multi-component coatings

• Flow or pressure monitoring

• Color manifolds

• Gun and line cleaning

Long fluid lines increase the amount of coating and cleaning material held inside the system. Frequent-color-change factories should evaluate line volume, flushing sequence, recovery, cleaning time, and waste—not merely the switching time at the control panel.

5. Overspray control and recovery

Common options include dry filters, disposable collection media, water-wash filtration, and belt-based recovery systems.

The best option depends on:

• Coating type

• Reuse requirements

• Color-change frequency

• Local waste rules

• Water and wastewater availability

• Filter cost

• Cleaning labor

• Acceptable contamination level

Under defined process conditions, a properly configured recovery system can return a high proportion of recoverable water-based overspray. Richfruits project data reports water-based coating utilization of up to 92% for a specified recovery configuration. This should not be treated as a universal guarantee. The value must be verified with the customer’s coating, color sequence, workpieces, line speed, and reuse criteria during sample testing.

6. Flash-off, drying, and curing

Select hot air, infrared, UV, UV-LED, or a combined process according to the coating.

Water-based coatings may require controlled airflow, humidity management, and sufficient time for water release. Increasing temperature without controlling humidity and airflow may not deliver the expected result.

7. Control and production data

Useful control functions include:

• Product recipes

• Conveyor synchronization

• Automatic gun triggering

• Spray pressure or flow alarms

• Oven temperature recording

• Filter status

• Maintenance reminders

• Production counts

• Reject tracking

• Remote diagnostic access

• Role-based parameter protection

The objective is not to add as many screens as possible. It is to make the critical process conditions visible, repeatable, and difficult to change accidentally.

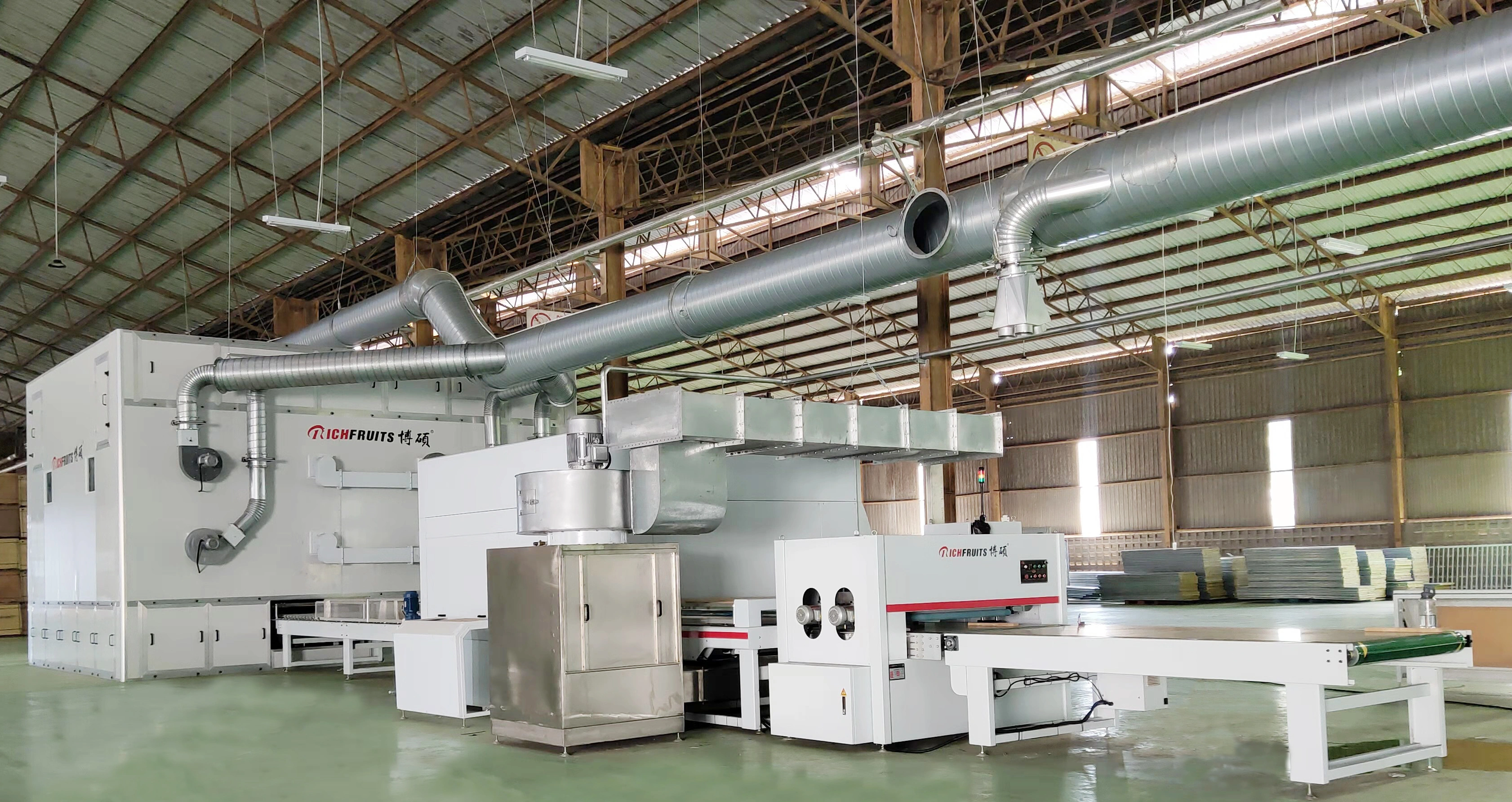

Drying and curing section for an automated wood spray coating line

Compare Common System Configurations

The most automated option is not automatically the best option.

A mixed-production factory may obtain a better return from a flexible spray cell combined with manual handling. A high-volume door manufacturer may benefit from a continuous line. A manufacturer of irregular furniture parts may need robotic motion and rotating fixtures.

Choose the lowest level of complexity that can reliably meet the required quality and output.

Factory Layout and Utility Requirements

Before requesting a final quotation, provide a scaled factory drawing showing:

• Columns and walls

• Doors and loading areas

• Clear ceiling height

• Existing machines

• Operator and forklift routes

• Paint room

• Exhaust discharge options

• Maintenance access

• Fire exits

• Available expansion space

The supplier should show the direction of product flow, operator locations, maintenance clearance, control cabinet placement, duct connections, and utility points.

Confirm the following utilities:

• Voltage, phase, and frequency

• Installed electrical load

• Estimated normal operating consumption

• Compressed-air pressure and flow

• Exhaust-air requirement

• Make-up air

• Heating energy

• Cooling water, if needed

• Dust extraction

• Factory temperature and humidity range

• Network connection

• Drainage or wastewater conditions

Ask for both installed load and expected operating consumption. Installed load is useful for electrical design, but it does not represent normal energy cost.

Safety and Environmental Planning

Safety and environmental requirements must be addressed during line planning, not after the equipment arrives.

For projects in the United States, spray-finishing installations may fall under OSHA requirements including 29 CFR 1910.107. The standard addresses spray areas, booth construction, ventilation, ignition sources, electrical equipment, grounding, storage, and handling of flammable or combustible materials. OSHA defines a spraying area as an area where dangerous quantities of flammable vapors, mists, residues, dusts, or deposits may be present.

A project review should cover:

• Mechanical exhaust

• Make-up air

• Booth airflow direction

• Flammable vapor control

• Electrical area classification

• Equipment grounding

• Fire detection and suppression

• Interlocks between spraying and ventilation

• Separation of wood dust and spray-finishing hazards

• Covered coating and solvent containers

• Cleaning-solvent collection

• Filter and waste disposal

• Operator training

• Inspection and maintenance records

Wood furniture and wood building product operations may also be subject to federal, state, or local air-quality requirements. The U.S. EPA identifies hazardous air pollutants associated with some wood-product coatings, including solvents and other volatile compounds. Applicability depends on the facility, coating volume, materials, and operations.

Always have the final system reviewed by qualified local safety, fire-protection, electrical, and environmental professionals. Equipment certification does not replace approval of the installed process.

What to Include in Your RFQ

A detailed RFQ produces a more accurate proposal and makes supplier quotations easier to compare.

Product information

• Product categories

• Substrate

• Minimum, maximum, and common dimensions

• Weight

• Required coated surfaces

• Drawings and photographs

• Product mix by percentage

• Acceptable conveyor or fixture contact areas

Production information

• Required pieces per hour or shift

• Shifts per day

• Working days per year

• Typical batch size

• Number of colors

• Color changes per shift

• Current output and reject rate

• Planned future capacity

Coating information

• Coating type for each layer

• Technical and safety data sheets

• Mixing ratio

• Viscosity

• Pot life

• Wet- and dry-film targets

• Flash-off time

• Drying or curing conditions

• Color and gloss requirements

• Cleaning method

Factory information

• Scaled layout

• Available floor space

• Ceiling height

• Utility specifications

• Indoor temperature and humidity

• Installation country

• Relevant local standards

• Destination port

• Preferred product-flow direction

Commercial scope

Ask suppliers to state whether the proposal includes:

• Process design

• Line layout

• Spray machine

• Pumps and paint supply

• Conveyor connections

• Drying or curing equipment

• Ventilation and ducting

• Make-up air

• Electrical cabinet and field wiring

• Installation

• Commissioning

• Operator training

• Factory acceptance testing

• Site acceptance testing

• Documentation

• Recommended spare parts

• Warranty

• Remote support

Richfruits can develop a proposed layout and configuration from the customer’s factory size, workpiece range, capacity, and coating type. Customers can also send sample boards for process testing before the configuration is finalized.

Request a preliminary spray line configuration

Compare Quotations on the Same Basis

Do not compare only the total price.

Create a comparison table and ask every supplier to respond to the same RFQ.

Also identify costs outside the machine quotation:

• Freight and insurance

• Import duties

• Foundations

• Factory modifications

• Ventilation ducts

• Make-up air

• Fire-protection work

• Electrical supply

• Compressed-air upgrades

• Installation travel

• Local certification

• Coating used during testing

• Initial filters and cleaning supplies

• Recommended spare parts

Test Before Shipment

A factory acceptance test should use the customer’s actual coating and representative workpieces whenever possible.

Test at least:

• A common workpiece

• The largest workpiece

• The smallest workpiece

• A difficult edge or recessed design

• A normal production color

• A coating with challenging viscosity or pot life

Record:

• Conveyor speed

• Pieces per hour

• Gun configuration

• Coating viscosity and temperature

• Spray pressure

• Wet-film thickness

• Dry-film thickness

• Gloss or color requirement

• Visible defects

• Coating consumption

• Cleaning and changeover time

• Alarm and safety-interlock operation

For selected reciprocating spray configurations, Richfruits internal project data reports first-pass spray coverage above 80%, depending on the definition of coverage and test conditions. The same data indicates that routine end-of-shift maintenance may require approximately 20 kg of cleaning liquid and 10–20 minutes for a specified dry-belt configuration.

These figures are useful starting points, but a buyer should request verification with the proposed machine, actual coating, workpiece mix, and cleaning standard.

A machine running without alarms is not the same as a process producing acceptable finished parts. The contract should define the acceptance result—not only machine operation.

Factory inspection and testing of an automatic spray system

Common Planning Mistakes

Avoid these ten mistakes:

1. Choosing the spray machine before confirming the coating process.

2. Designing only around the largest product.

3. Using maximum conveyor speed as guaranteed output.

4. Ignoring loading, sanding, cooling, and unloading.

5. Assuming every coating can use the same pump, gun, and drying settings.

6. Underestimating color-change waste.

7. Forgetting make-up air and factory pressure balance.

8. Comparing quotations with different scopes.

9. Skipping tests with real coatings and workpieces.

10. Accepting general promises instead of measurable criteria.

The most expensive mistake is often not buying the wrong machine. It is building a line whose individual machines cannot operate together at the required process speed.

Estimate the Return on Investment

Use a transparent calculation:

Annual net benefit = Labor savings + Coating savings + Reduced rework + Added production contribution − Added operating costs

Then:

Simple payback period = Total installed project cost ÷ Annual net benefit

Include:

• Current direct labor

• Current coating consumption

• Coating cost per liter or kilogram

• Current reject and rework rate

• Expected maintenance labor

• Filter and cleaning costs

• Electricity

• Compressed air

• Heating energy

• Spare parts

• Additional output that can realistically be sold

Do not count every extra part as profit unless the factory has demand for it. Separate measurable savings from optimistic capacity assumptions.

Final Buyer’s Checklist

Before ordering an automated spray system, confirm that:

• The complete workpiece range is documented.

• The coating sequence and material data are available.

• Required output has been adjusted for realistic uptime.

• Spray, flash-off, drying, sanding, and handling speeds match.

• Factory layout and utilities have been checked.

• Safety and environmental requirements have been reviewed locally.

• Supplier quotations use the same RFQ scope.

• Real workpieces and coatings will be tested.

• Acceptance criteria are written into the agreement.

• Installation, training, spares, and support are clearly defined.

A well-prepared RFQ does more than produce a better price. It reduces technical assumptions, exposes missing scope, shortens the design process, and gives both buyer and supplier a shared definition of success.

Frequently Asked Questions

What is included in a complete automated spray system?

A complete system may include loading, dust removal, scanning, automatic spraying, paint delivery, overspray filtration or recovery, flash-off, drying or curing, conveyors, controls, and unloading. The exact scope depends on the workpiece, coating process, and required output.

How do I calculate the capacity of a spray coating line?

Start with the required acceptable parts per shift, divide by available production hours, and adjust for expected OEE. Then calculate conveyor pitch and speed. Finally, verify that spraying, flash-off, curing, loading, and unloading can all support that rate.

Which spray system is suitable for cabinet doors?

Flat cabinet doors are commonly processed on horizontal reciprocating spray systems with automatic workpiece detection. Raised panels, grooves, and detailed edges may require adjustable gun angles, three-dimensional vision, or specialized gun paths.

Can one line spray water-based, PU, NC, AC, and UV coatings?

A system can be engineered for several coating types, but compatibility must be confirmed for pumps, seals, hoses, guns, mixing, ventilation, recovery, cleaning, and curing. “Compatible” does not mean every coating can use the same settings.

Can an automatic spray machine coat panel edges?

Yes, if the gun arrangement, triggering, part spacing, conveyor, and coating process are designed for edge coverage. Edge-film requirements should be included in sample testing and acceptance criteria.

How much space does an automatic spray line require?

Space depends on workpiece size, conveyor speed, flash-off time, drying time, number of coats, return conveyors, maintenance clearance, and utility equipment. Provide a factory drawing before requesting a final layout.

What affects the price of an automated spray coating system?

Major factors include workpiece range, production capacity, spray technology, number of colors, paint delivery, filtration or recovery, drying method, automation level, ventilation, controls, certification, installation, and testing.

How quickly can the system change colors?

Color-change performance depends on the paint circuit, number of dedicated lines, hose volume, coating chemistry, recovery rules, and required cleanliness. A control screen may switch recipes instantly, while the fluid system still requires flushing or line selection.

What information is needed for an accurate quotation?

Provide workpiece dimensions, drawings, coating data, layer sequence, output, batch sizes, color-change frequency, factory layout, utilities, installation country, acceptance requirements, and the scope expected from the supplier.

Should I test my coating before ordering?

Yes. Testing the actual coating on representative workpieces is one of the best ways to reduce project risk. It can confirm finish quality, edge coverage, speed, consumption, drying, cleaning, and the suitability of the proposed equipment.

Plan the Process Before You Price the Machine

An automated finishing project should connect three things: the coating process, the equipment, and the material.

Richfruits Finishing develops automatic spraying machines and complete finishing lines for wood doors, cabinets, furniture, panels, and related products. The company’s service can include sample testing, process evaluation, line configuration, customized layout, installation, commissioning, operator training, remote diagnostics, spare-parts support, and continued process optimization.

To receive a useful preliminary proposal, send:

• Workpiece photographs and dimensions

• Coating technical data

• Required coats and finish

• Target output

• Factory layout

• Installation country

The more clearly the process is defined, the more accurately the complete spray system can be designed.

Request a Custom Automated Spray Line Layout and Quotation
